Access control

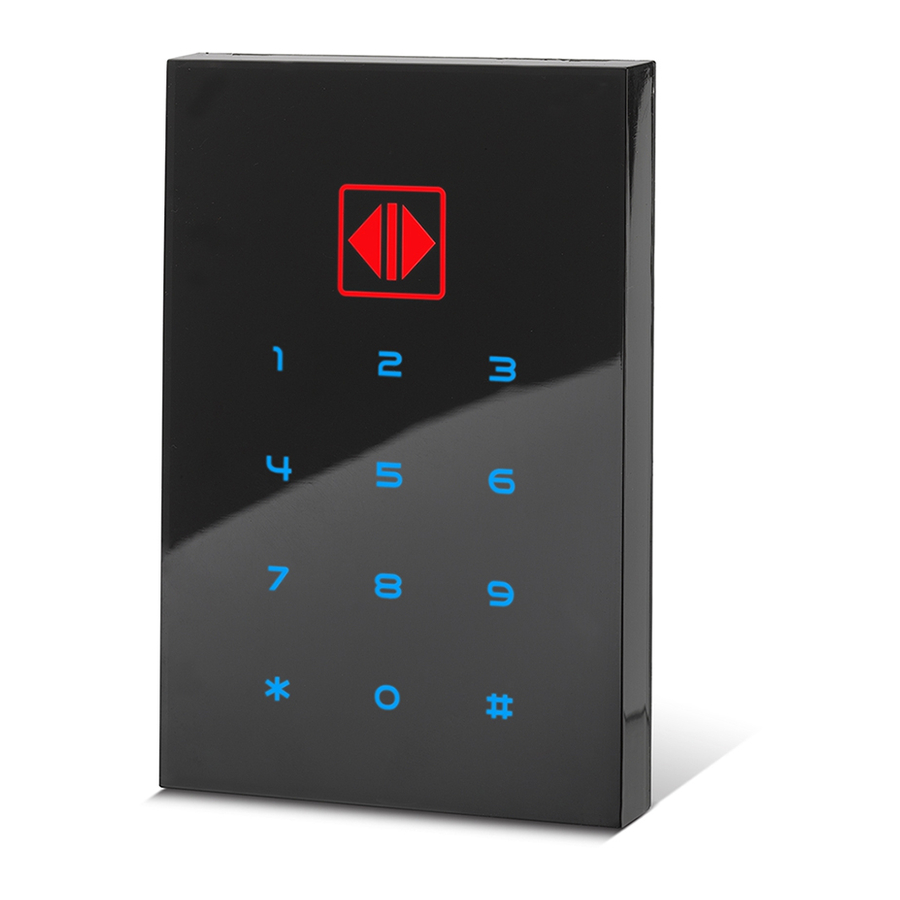

EPX-20
Combined Proximity
and Keypad Access
•
Operating voltage 12Vdc
•
ABS plastic
•
1000 users
•
Illuminated
•
Touch sensitive
•
Pin / Prox / Pin & Prox
•
Aux weigand output
•
LED display
OPTIONS
STD-PC
1
114
4
7
#
17
S P E C I F I C AT I O N
•
Current draw: Pull in: 100mA/12Vdc; Holding: 70mA/12Vdc.
Pull in: 50mA/24Vdc; Holding: 35mA/24Vdc.
•
Input: Request-to-Exit, time out reed switch contact.
•
Output: Dual relays, N.O./N.C/Com.
•
Relays rating: 2A MAX@30Vdc., 0.6A@120Vac.
50
Access control
STD-PCPS
KT-10BC
74
3
2
6
5
9
8
0
KT-15EM
KT-16
For AC/DC
~
~
+
+
For DC
use only
+
RED
12V
BLACK
GND
GREEN
N.O.
ORANGE
•
Programmable 4 digit code.
•
RF frequency: EM 125 KHz.
•
Relay strike time: 01~99 seconds or toggle mode (00).
•
Read range: 5cm. (In noise -free environment).
621-11
RED
+
12V
BLACK
GND
BROWN
DATA1
ORANGE
DATA0
GREY
Button
PINK
LED
BLUE
Normal Close
PURPLE
COM
GREEN
NO-Normal
YELLOW
Bell
WHITE
GND
PINK
LED
YELLOW
BELL
WHITE
GND
BROWN
DATA1
DATA0
GREY
BUTTON
8 ohm
0.5W
PURPLE
COM
BLUE
NORMAL
All dimensions in mm
Advertisement
Table of Contents
Related Manuals for ICS EPX-20
Summary of Contents for ICS EPX-20
- Page 1 Access control EPX-20 Combined Proximity and Keypad Access • Operating voltage 12Vdc • ABS plastic • 1000 users • Illuminated • Touch sensitive • Pin / Prox / Pin & Prox • Aux weigand output • LED display OPTIONS STD-PC...
- Page 2 Operation Manual Product Name: EPX20 Wiring diagram Fitting Instructions 1 1 1 +12V +12V +12V black brown DATA1 orange DATA0 grey Button pink blue Normal close purple green NO-Normal yellow BELL white 8 o h m 0 . 5 W Operation 1.
- Page 3 Setting The Length Of The Master Code Enter the setting mode: Press buttons * 9 (mode indicator starts to flash), then press 04 (a tone will be heard and the mode indicator stops flashing), then input :- (for 2 digit operation) (for 3 digit operation) (for 4 digit operation) (for 5 digit operation)
- Page 4 Set the unlocking time Enter the setting mode: Press *1 (mode indicator flashes yellow),then press the number from 00 to 99(a short tone will be heard to indicate success). 05 = 5 seconds 10 = 10 seconds Press # button to exit the setting mode. Deleting All Prox Cards/Tokens And User Codes Enter the setting mode: Press *8(mode indicator will start to flash yellow), then press 88(a short tone will be heard).
- Page 5 Adding A Master Card Enter the setting mode: Press *7 (mode indicator will flash green, this signifies that no master cards have been added previously). If the mode indicator turns green but does not flash this means a master card has already been added.
