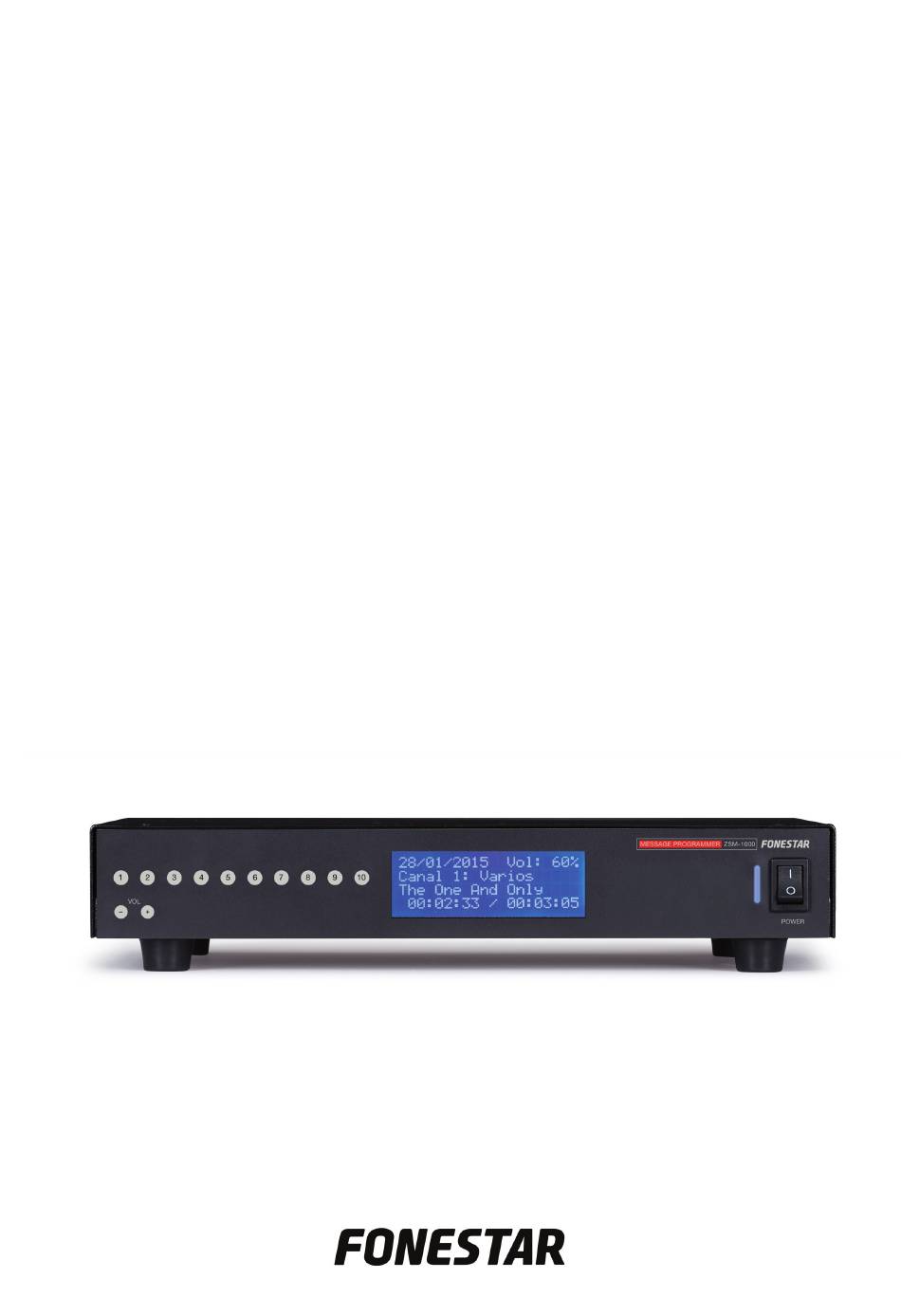

- Page 1 ZSM-1000 MESSAGE PROGRAMMER, EVENTS AND BACKGROUND MUSIC PLAYER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety and Environment ......................Significance of the symbols on the device ................Description..........................Basic recommended steps for installation/configuration of ZSM devices ........ New connections ........................Login data..........................Options ............................Groups ............................Select device in LAN........................Basic Controls ........................... Icon Buttons .......................... -
Page 3: Safety And Environment
We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine. -
Page 4: Significance Of The Symbols On The Device
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 5: Description
ZSM DEVICES 1.- Make sure the device is connected to the local network. 2.- In the ZSM-1000, device itself, Press the 1 button for 3 seconds to open the Network menu and select Status. 3.- If it appears as “disconnected”, check the configuration of your network, the connection of the device,the Ethernet cable, etc. -
Page 6: New Connections
3. NEW CONNECTIONS In order to connect to the ZSM-1000 device, create a new connection with the option “New” in the drop- down menu “General”: reate access to ZSM-1000 Access data - Name: the name which identifies the access to the device. -
Page 7: Options
Options - Connect when starting the application: When launching the application, an attempt will be made to connect to the device. - Automatic reconnection: Only in automatic mode. Whenever a device is available on the local network and is not connected, it will connect automatically to it. - Synchronize date and time when connecting: the device will configure the time and date of the PC upon each connection. -
Page 8: Basic Controls
4. SIC CONTROLS There are several options when it comes to operating a connected device. 1.- Icon buttons: Help Show/Do not show list of next messages. Information about the device: time & date, IP address, network name, ports, current status. Open background music control windows. -
Page 9: Configuration
(orange) Attempting to connect to the SIP server (green) Connection established (red) Connection error (green) SIP call in progress 5. CONFIGURATION There are 2 ways of accessing the device configuration: - Right button -> Configure - From the display: “Dashboard -> “Configuration” GENERAL - System time and date: shows the current time and date in the device. -
Page 10: Audio
AUDIO - Volumes: Each type of audio has its own volume control. - Sound: Mono or stereo output. OMMUNICATIONS - Network access: Credentials to connect to the device, consisting of name and password. - Local network: DHCP or fixed IP network configuration. - Ports: TCP communications port through which the remote connection is made, and TFTP UDP port for audio file transfers, and updates and configurations. -
Page 11: Sip
MÁX TRANSFER SPEED ZSM-1040 ZSM-1000/ZSM-1050 ZSM-1000/ZSM-1050 (Megabits per second) SERIE TRANSFER MODE BLOCK TRANSFER MODE 0.150 Mb/s 2.720 Mb/s 3.8 Mb/s Internet 0.016 Mb/s 0.024 Mb/s 3.8 Mb/s Allows you to register the device as a SIP client, and hence, to receive calls from another client connected to the same SIP server/proxy. -
Page 12: Background Music
BACKGROUND MUSIC The buttons on the left side are divided into two groups: Channels - New channel: Allows the creation of a new empty channel. - Send directory: Select a PC directory to create a channel with the same name and send your files. Files are not sent in sub-directories. -
Page 13: Messages
MESSAGES The buttons on the left side allow you to: - Send: Send files to use as audio for scheduled or direct messages. - Download: Download the marked files to the PC. - Delete: Deletes the marked files. - Copy: Copies the marked files to another device as message files. A connection must be established with the target device - 13 -... -
Page 14: Background Music
8. KEY ASSIGNMENT The key assignment window assigns each channel to one or more buttons on the front of the ZSM-1000 device. This allows the playback of channels by pressing the corresponding button. -
Page 15: Scheduled Messages
9. SCHEDULED MESSAGES In this window all the messages that are scheduled in the device are shown. It also allows new scheduled messages to be created and edited or existing messages to be deleted. NEW MESSAGE 1.- General - Message: - Name: message identification name. -
Page 16: Direct Messages
2.- Schedules - Date intervals: the program allows the use of the message to be limited to a given period of time. Set the period of time by selecting the starting date and ending date. - Days of the week: allows the days of the week on which the message will be played to be selected - Schedules: - Once a day: the message will be played once a day at the specified time. -
Page 17: New Direct Message
Configuration direct access button. d. Channel assignment direct access button. 2.- Zone control: indicates the current audio being played in each zone. Only Zone 1 is available for the ZSM-1000. 3.- Functions control: a. Background music: - Current channel and audio file. -
Page 18: Exporting And Importing
b. Alarms (only ZSM-1050): - Current active alarm. - Alarm volume. - Direct access to the alarm configuration window. c. Next messages: - Current time of the system. - List of upcoming messages and the time at which they will be played. - Scheduled message volume. - Page 19 Background music Select the background music channels you wish to save. Programmed message files Select the message files that you wish to save. If programmed messages have been selected in advance, the files associated with them will be marked as necessary. Programmed message files At any time that you have the items you wish to save, click "Download and save"...
-
Page 20: Importing
Import The Import to Device window allows you to load a previously exported data file. To access it, right-click on an entry and select "Import data to device". - Destination device: Device where the data will be loaded. By default, the device for which the window was opened. - Page 21 Background music channels Select the background music channels you want to load onto the target device. Message files Select the alarm files you want to upload to the target device. If you have previously selected alarms that have associated audio files, these files will be marked as obligatory. Send and import At any time, click the "Send and Import"...
-
Page 22: Updating
3. Select the new version that you wish to load for the update. 4- Press the update button. Once the update has completed, the device will restart. NOTE: Fonestar provides the update files for the devices and the ZSM-GO program on its website. - 22 -... - Page 23 LOCAL METHOD Download the update file provided by Fonestar through its website in your PC. Put the file in the USB storage device by placing the file in the root of the file system. There are 2 methods of local updating: via the device menus and via the security update.
- Page 24 2. NETWORK CONFIGURATION SCREEN This is a step-by-step screen to the following sections: - Network configuration status. - Edit network configuration. The following actions can be performed using the buttons: - Channel 1: Change to NETWORK STATUS SCREEN. - Channel 2: Change to EDIT NETWORK SCREEN. - Channel 3: Back to INITIAL SCREEN.
- Page 25 2.2.1. SCREEN TO EDIT FIXED IP ADDRESS Allows the IP address, the subnet mask and the gateway to be changed manually. The screen cursor links on the octet that is being modified. The following actions can be performed using the buttons: - Channels 1 to 10: Changes the value of the octet.
- Page 26 3.3. REPEAT MODE SCREEN - Channel 1: Changes the status. - Channel 2: Returns to the BACKGROUND MUSIC CONFIGURATION SCREEN and, if the status is different, applies it. 4. LANGUAGE SCREEN Allows you to change the language of the menus. The following actions can be performed using the buttons: - Channel 1: Changes the language to Spanish and returns to the START-UP SCREEN.
- Page 27 CONTROLS AND FUNCTIONS FRONT PANEL 1.- Botones 1-10: Channels and menus. 2.- Device information screen. 3.- LED indicator of device operation.. - A "flashing blue" light will appear when the device is starting up. - A "steady blue" light will appear when the device is in operation. 4.- POWER: Device on/off switch.
-
Page 28: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
