BARRIER
®
GLIDER
SINGLE SLIDE COLD STORAGE DOOR
MODEL 7100
This Manual Covers Doors Shipped After 12-17-07, Refer to 7100SSF For Doors Prior.
PRINTED IN U.S.A.
PUBLICATION NO. 7100SSG
EMAIL: PRINTSHOP@RITEHITE.COM
FEBRUARY 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BARRIER GLIDER 7100 and is the answer not in the manual?

Questions and answers

Related Manuals for RITE-HITE BARRIER GLIDER 7100

Summary of Contents for RITE-HITE BARRIER GLIDER 7100

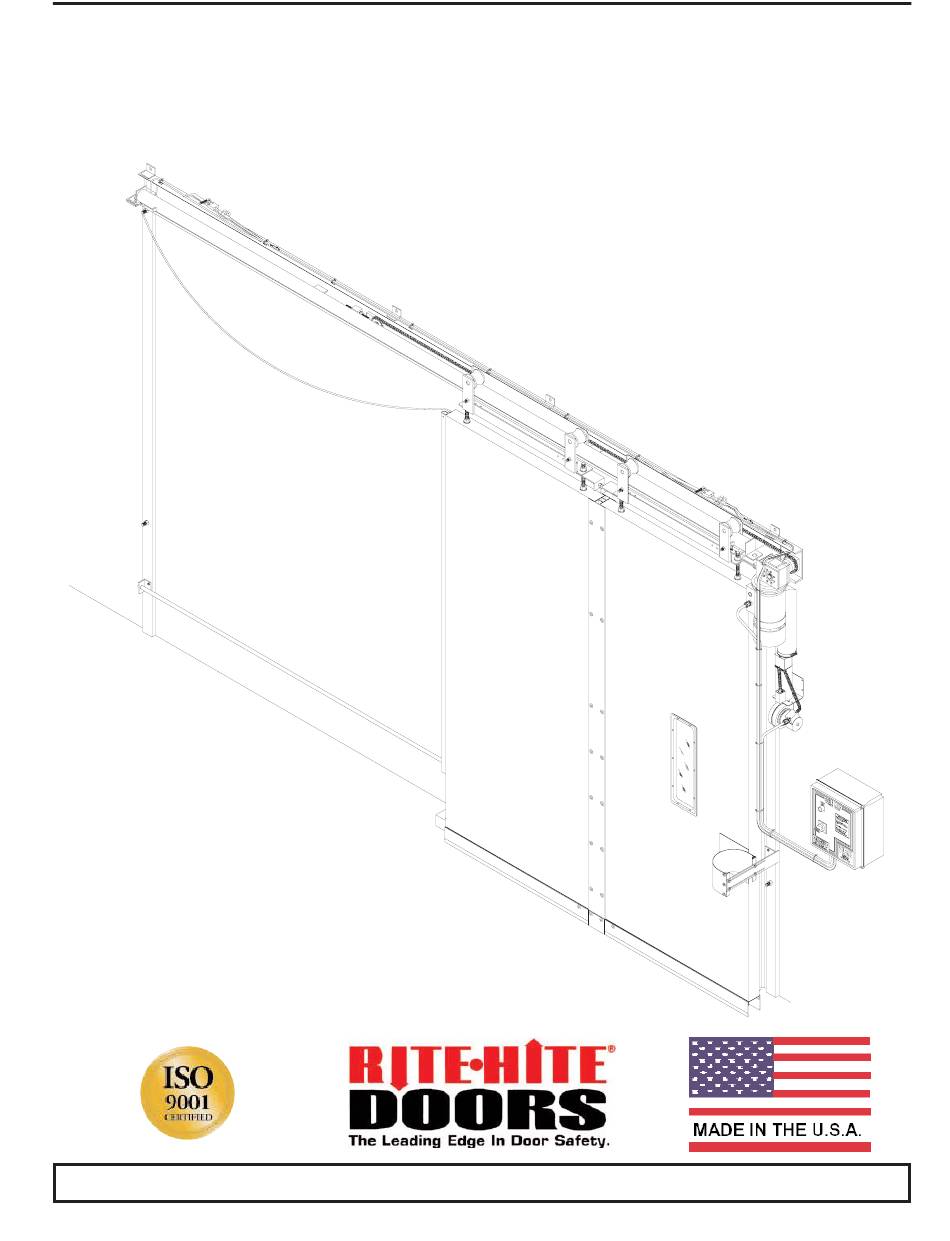

  • Page 1 BARRIER ® GLIDER SINGLE SLIDE COLD STORAGE DOOR MODEL 7100 This Manual Covers Doors Shipped After 12-17-07, Refer to 7100SSF For Doors Prior. PRINTED IN U.S.A. PUBLICATION NO. 7100SSG EMAIL: PRINTSHOP@RITEHITE.COM FEBRUARY 2008...

  • Page 2: Table Of Contents

    HITE DOORS, INC. The BARRIER GLIDER is designed to be a WARRANTY fast, smooth opening, low maintenance door that provides superior environmental separation while reducing passage time RITE-HITE DOORS, INC. warrants that it’s BARRIER ® GLIDER and temperature loss. door will be free from defects in design, materials, and...

  • Page 3: Installation Instructions

    Figure 1. These dimensions should be within ±1" of the dimensions listed on the Serial Number label. If the measurements Horizontal Air Bag do not agree, STOP! Contact your RITE-HITE DOORS, Poly Lumber INC. representative. Support Post Thru-Bolt Poly Lumber Tab.

  • Page 4: Header Installation

    BARRIER ® GLIDER Single Slide Model 7100 HEADER INSTALLATION Open Limit Switch Panel Trolleys Header Mounting Angle Support Post (6 Places) Header Mounting Header Close Limit Switch Panel Stud Holes Lifting Tubes, Make Sure to Clamp or Tie to Fork Lift and Remove 7 1/2”...
  • Page 5 BARRIER ® GLIDER Single Slide Model 7100 HEADER INSTALLATION Open Limit Switch Panel Trolleys Header Mounting Angle (6 Places) Cable Not Present With Cooler Door Option Panel Stud Close Limit Switch Holes Header Lifting Tubes, Make Sure to Clamp or Tie to 7 1/2”...

  • Page 6: Perimeter Seal Installation

    BARRIER ® GLIDER Single Slide Model 7100 PERIMETER SEAL INSTALLATION Screw Retainer to the Vertical Extension Wall After Fastening Fastened to Blower at the Bottom Optional Optional Retainer Vertical Extension Retainer Blockout Blockout to Blower Screw Retainer to the Wall 5 3/8”...

  • Page 7: Retention System Installation

    BARRIER ® GLIDER Single Slide Model 7100 RETENTION SYSTEM INSTALLATION Spring Assembly Longer Cord Support Post Eyebolt Slide Collar Retention Rod Bracket Eyebolt Insert Cord Knot Slide Angle Cord Clamp Tight Against Bolt FIGURE 6 3/4” Retention Rod 16” FIGURE 5 I M P O R TA N T ! ! ! Maintain 3 1/2”...

  • Page 8: Panel Installation

    BARRIER ® GLIDER Single Slide Model 7100 FLEXIBLE PANEL INSTALLATION NOTE: The top of the panels can be pulled together with Panel Splice Stud, Nuts and Washers the trolley to trolley attachment bolt at the top that Rivet was removed earlier. If panels are not tight together, remove spacer nut, Figure 8.
  • Page 9 BARRIER ® GLIDER Single Slide Model 7100 FIBERGLASS PANEL INSTALLATION NOTE: Panels may come as one or two piece, depending Remove the top nut from threaded rods. on the width of the opening. Place panel in front of the opening with the threaded rods at the top, Figure 8.

  • Page 10: Electrical Installation

    BARRIER ® GLIDER Single Slide Model 7100 ELECTRICAL INSTALLATION I M P O R TA N T ! ! ! WA R N I N G ! ! ! In freezer and cooler applications where a When working with electrical or electronic controls, conduit passes from a warm to cold temperature make sure that the power source has been locked out zone, the conduit must be plugged with epoxy.
  • Page 11 BARRIER ® GLIDER Single Slide Model 7100 ELECTRICAL INSTALLATION 208/230/460V 575V 220V DO NOT Wire F1, F2, F3 Incoming Power Into Incoming Power These Terminals FIGURE 13 PUB. NO. 7100SSG FEBRUARY 2008...

  • Page 12: Input / Output Chart

    BARRIER ® GLIDER Single Slide Model 7100 INPUT / OUTPUT CHART / OPERATING PROCEDURE OPERATING PROCEDURE LIMIT SWITCH ADJUSTMENT To operate the door, simply press the green open button After all parts have been assembled to the door, place on the front of the control box, the door should go to the the door in the closed position with the closed limit switch full open position.

  • Page 13: Troubleshooting / Maintenance

    Power to the blower must be constant. Make sure air exhaust hole is free of obstructions, blockage my cause frost buildup. Repair any tears or replace as necessary. Trolley To remove trolleys or replace rollers, remove the bottom plates and pull off. RITE-HITE ® DOORS PLANNED MAINTENANCE Model 7100 BARRIER ®...
  • Page 14 BARRIER ® GLIDER Single Slide Model 7100 INVERTER ERROR CODES / PROGRAMMING Barrier Glider - Inverter Error Codes Trip Code Condition Possible Cause tr UU DC bus under voltage Low AC supply voltage, check power source. Low DC voltage when supplied by an external DC power supply. tr OV DC bus over voltage The DC bus (Pr.

  • Page 15: Final Checklist

    BARRIER ® GLIDER Single Slide Model 7100 LOCK INSTALLATION / FINAL CHECKLIST Switch for Single Slide or Bi-Parting Non-Drive Switch for Bi-Parting Drive Side 1. Only attempt to install this lock at the rear edge of a rigid panel. 2. Mount the panel lock bracket to the rear of the panel with the U-shaped edge overlapping the retainer extrusion.
  • Page 16 BARRIER ® GLIDER Single Slide Model 7100 MANDATORY FIELD WIRING DIAGRAM PUB. NO. 7100SSG FEBRUARY 2008...
  • Page 17 WIRE NUT, ORANGE 51950003 XFMR,2.0KVA,600:240/120 73550017 575V XFMR,2.0KVA,480/240:240/120 73550024 Not 575V ITEM PART NO. DESCRIPTION PARTS LIST / MATERIAL INCH TOLERANCES RITE-HITE DO NOT SCALE DRAWING OVER UP TO + / - 0.125 0.005 MM-DD-YY DOORS INC. 0.125 0.25 0.010 0.25 1.25...

  • Page 18: Wiring Diagrams

    BARRIER ® GLIDER Single Slide Model 7100 WIRING DIAGRAM PUB. NO. 7100SSG FEBRUARY 2008...

  • Page 19: Architectural Drawing

    ARCHITECTURAL DRAWING (FLEXIBLE PANEL) AC DRIVE 5529 1/15/2008 ADDED VISION FAN DIMENSIONS 4575 9/13/2004 UPDATE TITLE BLOCK 4603 11/15/2004 DOOR SYSTEM RITE-HITE DOORS INC. 2/9/2004 ARCHITECTURAL APPROVAL, BARRIER GLIDER, SINGLE SLIDE, FLEXIBLE PANEL, NON-STORAGE SIDE MOTOR MOUNT 4409 4/8/2004 8806A001 3/8"=1' 2004...
  • Page 20 BARRIER ® GLIDER Single Slide Model 7100 ARCHITECTURAL DRAWINGS (RIGID PANEL) 8806A004 AC DRIVE 5529 1/15/2008 DOOR SYSTEM RITE-HITE DOORS INC. 10/4/2004 ARCHITECTURAL APPROVAL BARRIER GLIDER, SINGLE SLIDE, FIBERGLASS PANEL, STORAGE SIDE MOTOR MOUNT 4603 11/15/2004 8806A004 3/8"=1' 2004 REMOVE DIMENSION 'A' AND UPDATE...
