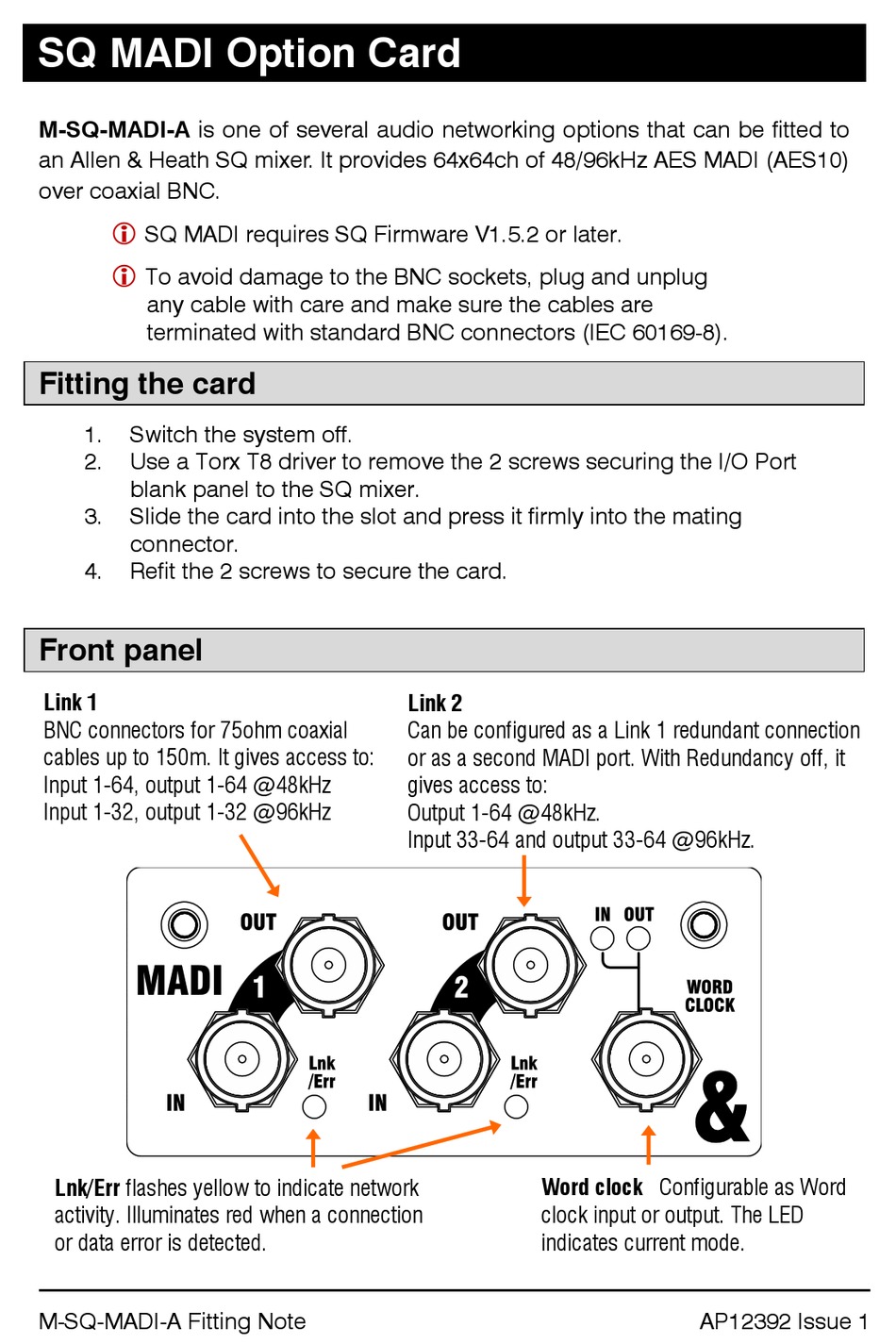

ALLEN & HEATH SQ MADI Option Card Fittings Manual

SQ MADI Option Card
M-SQ-MADI-A is one of several audio networking options that can be fitted to
an Allen & Heath SQ mixer. It provides 64x64ch of 48/96kHz AES MADI (AES10)
over coaxial BNC.
 SQ MADI requires SQ Firmware V1.5.2 or later.

To avoid damage to the BNC sockets, plug and unplug
any cable with care and make sure the cables are
terminated with standard BNC connectors (IEC 60169-8).

Fitting the card

1. Switch the system off.
2. Use a Torx T8 driver to remove the 2 screws securing the I/O Port
blank panel to the SQ mixer.
3. Slide the card into the slot and press it firmly into the mating
connector.
4. Refit the 2 screws to secure the card.

Front panel

Link 1
BNC connectors for 75ohm coaxial
cables up to 150m. It gives access to:
Input 1-64, output 1-64 @48kHz
Input 1-32, output 1-32 @96kHz
Lnk/Err flashes yellow to indicate network
activity. Illuminates red when a connection
or data error is detected.
M-SQ-MADI-A Fitting Note
Link 2
Can be configured as a Link 1 redundant connection
or as a second MADI port. With Redundancy off, it
gives access to:
Output 1-64 @48kHz.
Input 33-64 and output 33-64 @96kHz.
Word clock Configurable as Word
clock input or output. The LED
indicates current mode.
AP12392 Issue 1
