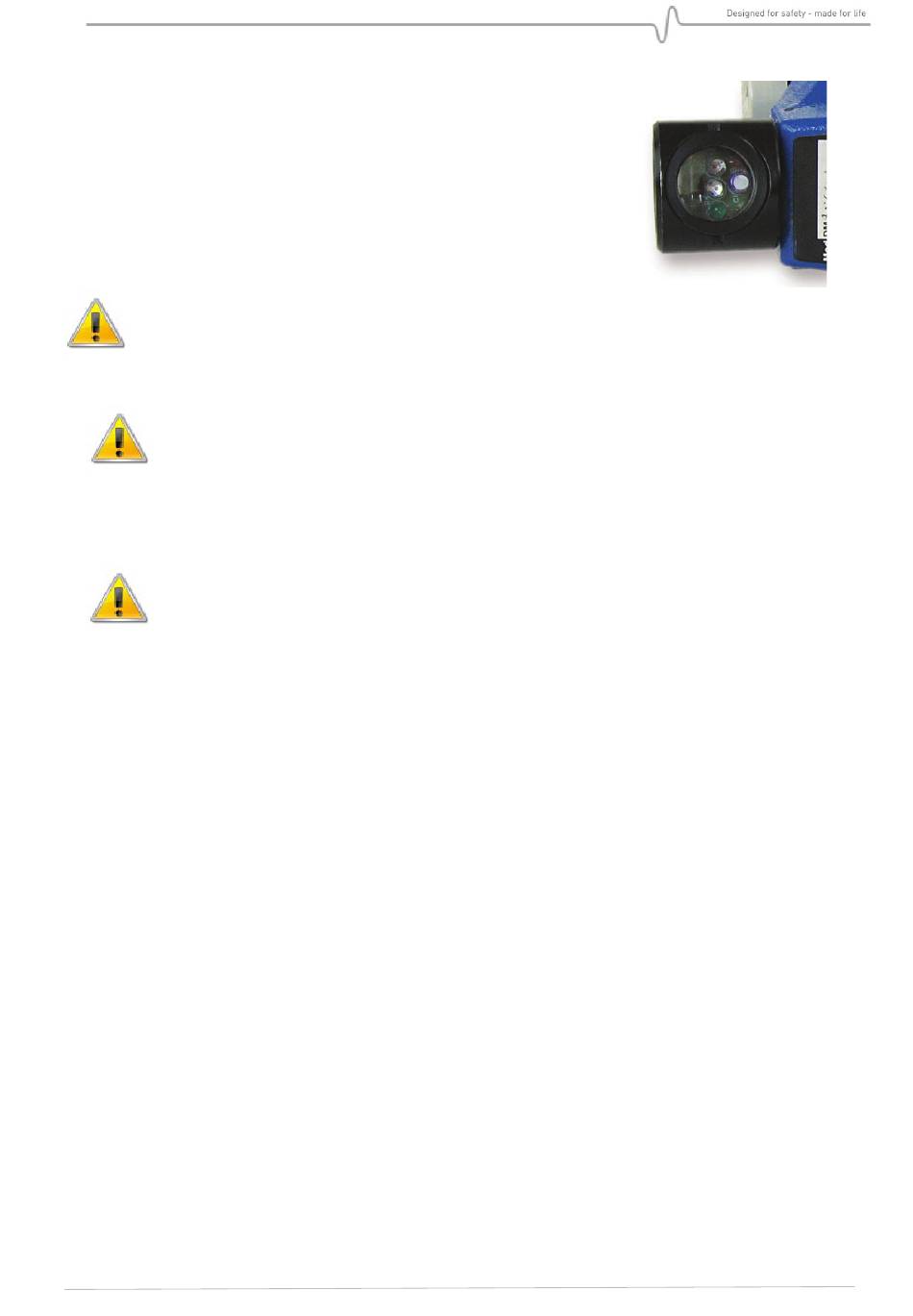

4.2.2. Orientation of the communication head
The IR communication head can be rotated from top to bottom in
order to optimize
communication tool. Avoid direct sunlight on head.
Once the correct position has been obtained, tighten the
stopping screw to set the adjustment.
A 1.5 mm Allen wrench is required for this operation.
Do not touch the anti-removal screw of the IR communication head which is masked
by the label "Do not retire".
4.2.3. Cable's inputs (as an option)
Connection cables must pass through a cable gland (Explosion Proof certified)
For installation details, refer to the instructions provided by the manufacturer of the cable
gland used.
The unassigned cable glands entries must be blanked with explosion proof
certified plugs (M20). On stainless steel version, they are glued with Loctite or
equivalent compound. If a plug is moved or removed, it must be glued again with
Loctite or an equivalent.
