EZ CONNECT EZ Holder Getting Started

Getting Started

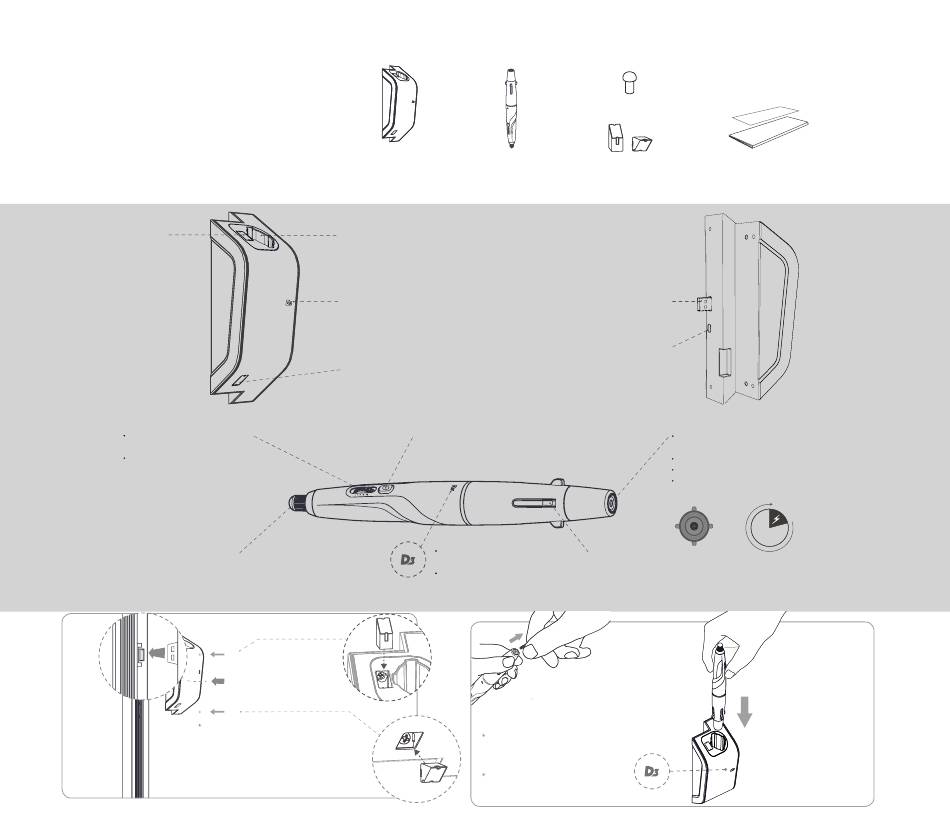

What's in the box?

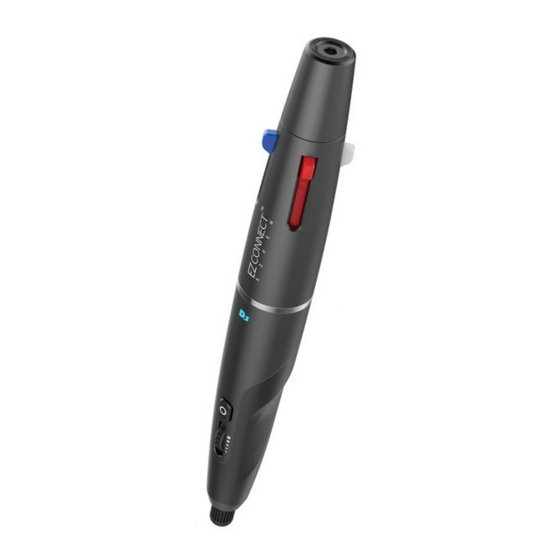

EZ Holder / EZpen
Screw Hole
Scroll Wheel & Button
Click the scroll wheel to switch
between pen and eraser functions.
Scroll the scroll wheel to adjust
pen nib and eraser thickness when
annotating, or to navigate up and
down when reviewing a document.
Pen Nib
• Specially designed ergonomic pen nib .

EZ Button Installation

1)Insert the EZ Holder into the USB port
on the right side of the IFTD.
2)Screw the EZ Holder to the IFTD with
the screws provided.
3)Insert the screw hole caps into the screw holes.
EZ Holder EZ Pen
Charging & Syncing Port
• To charge your EZ Pen, insert it
(pen nib-up) into the charging port
on the EZ Holder.
LED Indicator
• When charging and syncing, the
LED indications can help determine
the status of the EZ Holder & EZ
Pen.
Screw hole
• Use the screw holes to fix the EZ
holder securely to the IFTD.
Mode Button
Click the Mode Button to tab back and forth
•
between the OS UI and D3 annotation UI.
Additionally, press for more than 3 seconds
to access the home screen.

LED Indications

The LED indications on the EZ Pen
are as follows:
Blue : More than 50%
Logo
Magenta : More than 20%
Red : Below 20%
Charging & Syncing
To recharge the EZ Pen, insert it
(pen nib-up) into the charging port on
the EZ Holder.
To sync the EZ Pen, place it into the
charging port for 3 seconds and then
remove.
Pen Nib x1
Screw Hole
Cap x2
USB Connector
• Connect the EZ Holder via USB to
the USB port on the side of the
IFTD.
Firmware Upgrade Port
Do not use this port. This port is for
•
firmware updates only and should
not be used.
Charging & Syncing Port
Insert the EZ Pen into the charging port on the EZ
Holder to begin charging or to sync your EZ Pen.
Full Charge Time : MAX 2.5 hours
Continuous Uptime : Approximately 10 hours
Standby Time : Approximately 6 days
4 Colour Clicker
• EZ Pen colour selection
(Red, Blue, White, Black)
Protective Cap
Remove the protective cap from
the charging and syncing port
before use.
Quick Manual & Warranty
2.5Hr Charge
10Hr Use
LED Indications
Charging :
Green : Charge Complete
Red : Charge in Progress
Blue : Power On
Syncing :
Blue : Synced / Power On
Yellow : Sync Issue
Magenta : Sync Issue
