Specifications

C4-Z2C (single)
Model numbers
C4-Z2C-5PK (5-pack)
System requirements
Control4 OS system
OS version 2.10.0 or greater
requirements
Control4 system
Each installed ZigBee Contact Sensor requires
integration input connections to the Composer project.
The ZigBee Contact Sensor (C4-Z2C) is available in
Driver
the Composer Online Driver Database.
Communication
Control4 ZigBee Pro mesh networking protocol,
Networks supported
based on the IEEE 802.15.4 ZigBee standard
ZigBee data rate
250 kbps
ZigBee frequency
2.405 – 2.475 GHz
range
Connections
4 inputs, accepts AWG 16-28, common ground
Contact sensor input
connection.
1 thermistor input, sold separately.
External thermistor
See "Accessories"
Integrated features
Internal magnetic reed switch
Internal contact
Requires external magnet, sold separately
Integrated internal
Internal thermistor can be used for local
thermistor temperature sensing: 32°F to 104°F (0°C to 40°C)
Integrated humidistat
Can measure local humidity from 5% to 90%.
Power consumption
100mA at 3V, fully active
AA batteries (2), included. Alkiline batteries are
Power
recommended.
Available colors
Black (water-based paintable enclosure)
Dimensions (L × W × H)
3.1" (78.7 mm) × 2.6" (65.7 mm) × 1.05" (26.6 mm)
Weight
2.5 oz. (70.9 g) without batteries
Temperature:
Operational 32°F to 104°F (0°C to 40°C)
Storage -20°F to 158°F (-29°C to 70°C)
Environmental
Humidity 5% to 95% non-condensing
This device is not waterproof and must be kept out
of direct contact with water. The product must not
be immersed.
The cover assembly plastics are paintable with any
Paintable enclosure
water-based residential paints. Do not clog the
cover assembly vent holes with paint.
Accessories
External thermistor
ZCA-EXT10A, AC-DOTS1-W, AC-PMT51-W
2
Power
Other
Installing
Opening the case and installing the batteries
1 Detach the tray from the cover by inserting a flat screwdriver
into the opening slot in the side of the cover and pushing
in gently, while at the same time pulling the cover out and
away from the tray.
C O
V E R
T R A
Y
The cover holds the radio logic board
(the actual device) and pins and the
internal contact. The cover attaches
to the tray. The tray holds the wiring
terminals and is mounted to a wall or
flat surface.
2 Install the two AA alkaline batteries (included) into the
device, oriented according to the diagram in the battery
compartment.
Battery use and care
• Keep the battery contacts and compartment clean.
• Remove the batteries from the device if it is not going to
be used for several months.
• Extreme temperatures reduce battery performance. Avoid
putting the device in very warm places.
• NiMH batteries are not recommended due to their low
voltage causing inaccurate battery level readings.
Battery replacement safety rules
Warning! To prevent a battery short, leakage or rupture:
• Use typical AA alkaline batteries only.
• Do not mix battery types.
• Do not attempt to recharge a battery unless the
battery is specifically marked "rechargeable."
• Never dispose of batteries in a fire.
AVERTISSEMENT ! Pour empêcher court-circuiter, fuite
ou rupture de batterie:
• Utilisez les accumulateurs alcalins typiques d'AA
seulement.
• Ne mélangez pas les types de batterie.
• N'essayez pas de recharger une batterie à moins
que la batterie soit spécifiquement marqué «
rechargeable ».
• Ne vous débarassez jamais des batteries dans un feu.

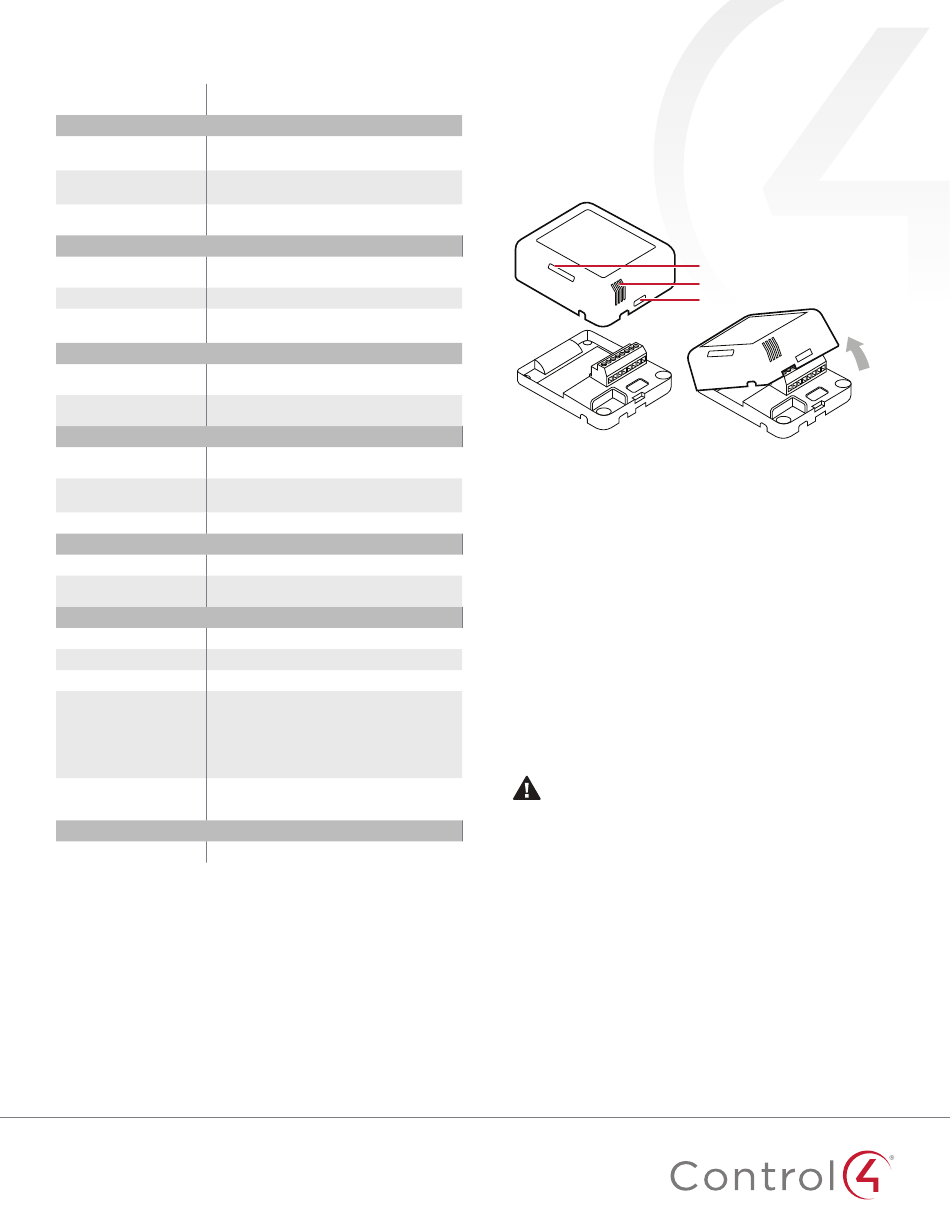

Internal contact location
Temperature chamber/LED display
Opening slot
The cover "rocks" into contact with
the tray. To separate the two, insert a
screwdriver or other flat object into the
opening slot on the side of the cover,
gently push in and then "rock" it away
from the tray.
