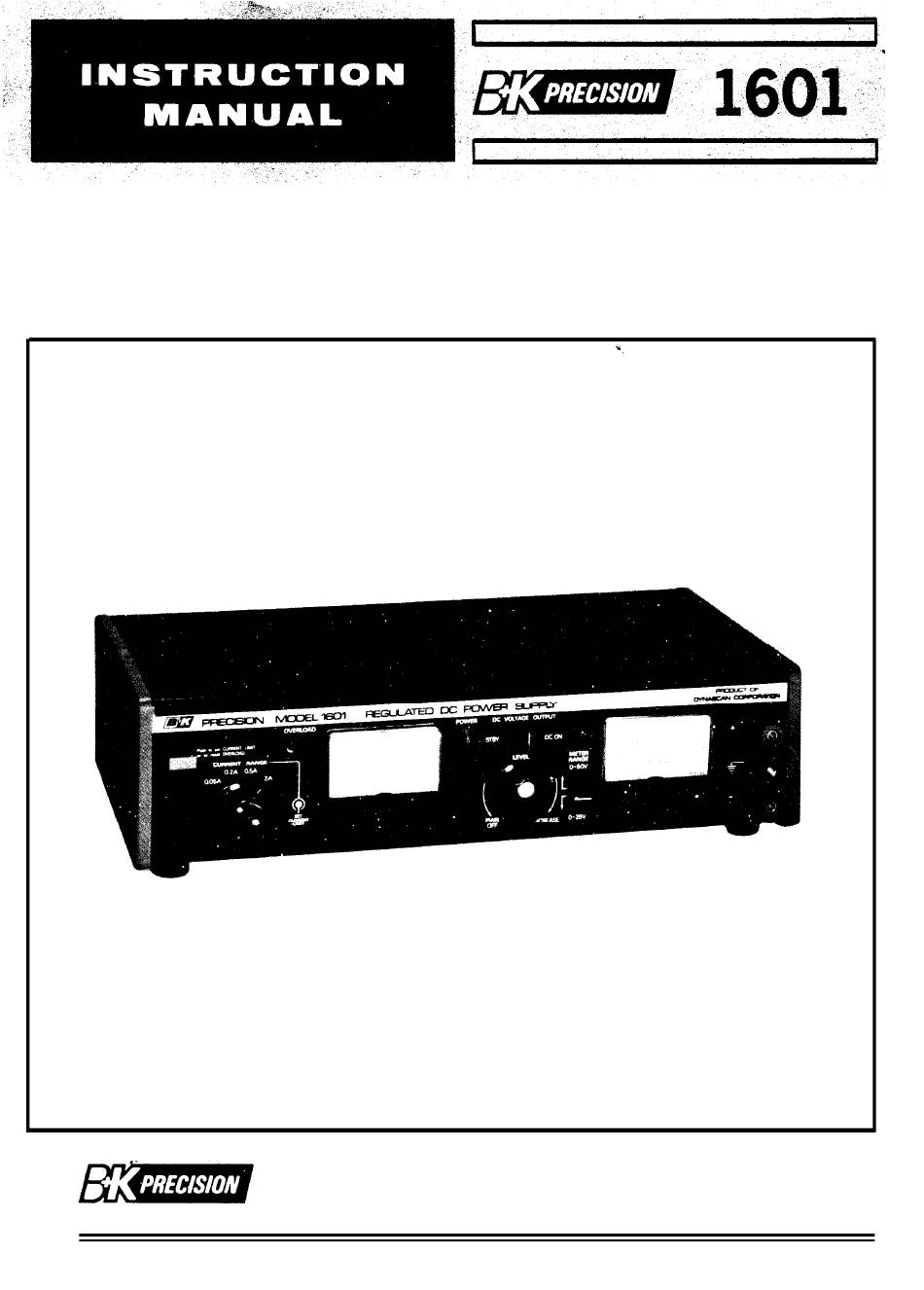

- Page 1 Solid State Regulated DC Power Supply A Product of DYNASCAN CORPORATION 6460 West Cortland Street Chicago, Illinois 60635 PRICE $3.66...
-
Page 2: Table Of Contents
CONTENTS Page ........... SPECIFICATIONS FEATURES . -
Page 3: Specifications
SPECIFICATIONS Maximum 0.l%, 0.32% typ- LINE REGULATION O-50 VDC, continuously var- OUTPUT VOLTAGE ical, at output voltage of 50 iable. Two ranges, O-25 and VDC and output current of 2 O-50 VDC. amps from 105-125 VAC. OUTPUT CURRENT O-2 amperes. Four ranges: 5 millivolts peak-to-peak RIPPLE O-50 mA, 0-0.2A, 0-0.5A, and... -
Page 4: Introduction
INTRODUCTION Powering equipment or indi- -Service Technicians The B 6 K Precision Model 1601 Regulated DC vidual circuits during testing Power Supply is a versatile, laboratory quality in- and trouble-shooting in the strument which provides regulated dc voltage and service shop. -
Page 5: Operating Instructions
8 1 terminal Earth and chassis ground and prevents LEVEL control 13 from increasing the terminal. voltage above approximately 9 + terminal Positive polarity output ter- 25 volts. minal. 13 LEVEL control Turns off power supply at - terminal Negative polarity output extreme counterclockwise ro- terminal. -
Page 10: General
CIRCUIT DESCRIPTION The unregulated B+ output level is pre-regulated GENERAL in coarse steps. As the LEVEL control is rotated The power supply converts a 117 VAC input to a clockwise from zero to maximum, the unregulated highly regulated and filtered dc output that is fully B+ voltage changes from its lowest to its highest adjustable from 0 to 50 volts and 0 to 2 amperes.
