Summary of Contents for CYP PUV-POH
- Page 1 PUV-POH PoH/PoE Power Injector OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. CONNECTION DIAGRAM ..... 10 8. Specifications ........11 8.1 Technical Specifications ......11 8.2 Cable Specifications .......12 8.3 HDBaseT Features ........13... -
Page 6: Introduction
1. INTRODUCTION HDBaseT™ has a large share of the video extension market when it comes to the extension of uncompressed video and other extenders that rely on Ethernet for extension are gaining in popularity. With the idea of simplifying the installation process, reducing cable clutter, and removing the need for power outlets near every endpoint, we designed this product. -
Page 7: Features
5. FEATURES HDCP 1.x and 2.2 compliant Signals up to 10.2Gbps bandwidth are bypassed without modification other than the addition of PoE/PoH Data path is bi-directional, pin to pin, and signal agnostic Supports DC 48V to products using Power over HDBaseT or Power over Ethernet (IEEE 802.03af ) Provides PoE/PoH over distances of up to 100 metres to compatible powered devices (PD) -
Page 8: Operation Controls And Functions

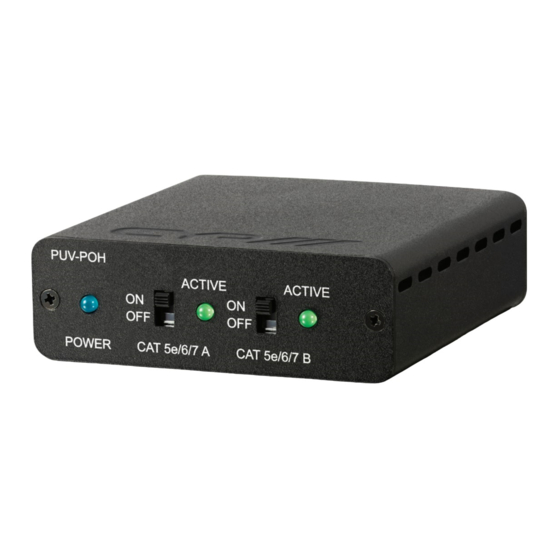

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel PUV-POH ACTIVE ACTIVE POWER CAT 5e/6/7 A CAT 5e/6/7 B POWER LED: This LED will illuminate to indicate the unit is on and receiving power. CAT 5e/6//7 A Switch: Enables or disables providing PoE/PoH on Ethernet port A. -
Page 9: Rear Panel
6.2 Rear Panel CAT 5e/6/7 B CAT 5e/6/7 A DC 48V CAT 5e/6/7 B Port: Connect to a compatible unit with a single Cat.5e/6/7 cable for bypassed transmission of all data signals. PoE/PoH can also be supplied to compatible PD devices if the feature has been enabled via the appropriate front panel switch. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Media Player Stereo HDMI Input Input Input RESET SERV. HDCP HDMI INFO. PoE/PoH Power Injector ACTIVE ACTIVE POWER CAT 5e/6/7 A CAT 5e/6/7 B CAT 5e/6/7 B CAT 5e/6/7 A DC 48V Cat.5e/6/7 Cable Power Supply Cat.5e/6/7 Cable Projector with HDBaseT Input... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Cat.5e/6/7 Bandwidth 10.2Gbps Input Port 1×Cat.5e/6/7 (RJ-45) Output Port 1×Cat.5e/6/7 (RJ-45) Power Supply 48V/0.83A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 71mm×72mm×23mm [Case Only] 71mm×76mm×23mm [All Inclusive] Weight 130g Chassis Material... -
Page 12: Cable Specifications
8.2 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit Ethernet Cable Cat.5e/6 100m Cat.6A/7 100m Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (4K UHD Video) - 4K@24/25/30Hz &... -
Page 13: Hdbaset Features
8.3 HDBaseT Features HDBaseT Feature Set Extender Video & Audio Extension Supported LAN Extension Supported Send power to Receiver Supported (PoH) Send power to Transmitter Supported (PoH) IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Supported... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Gbps Gigabits per second HDBT HDBaseT Kilohertz Local Area Network Light-Emitting Diode Megahertz Powered Device Power over HDBaseT Power over Ethernet Power Sourcing Equipment 4K UHD... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
