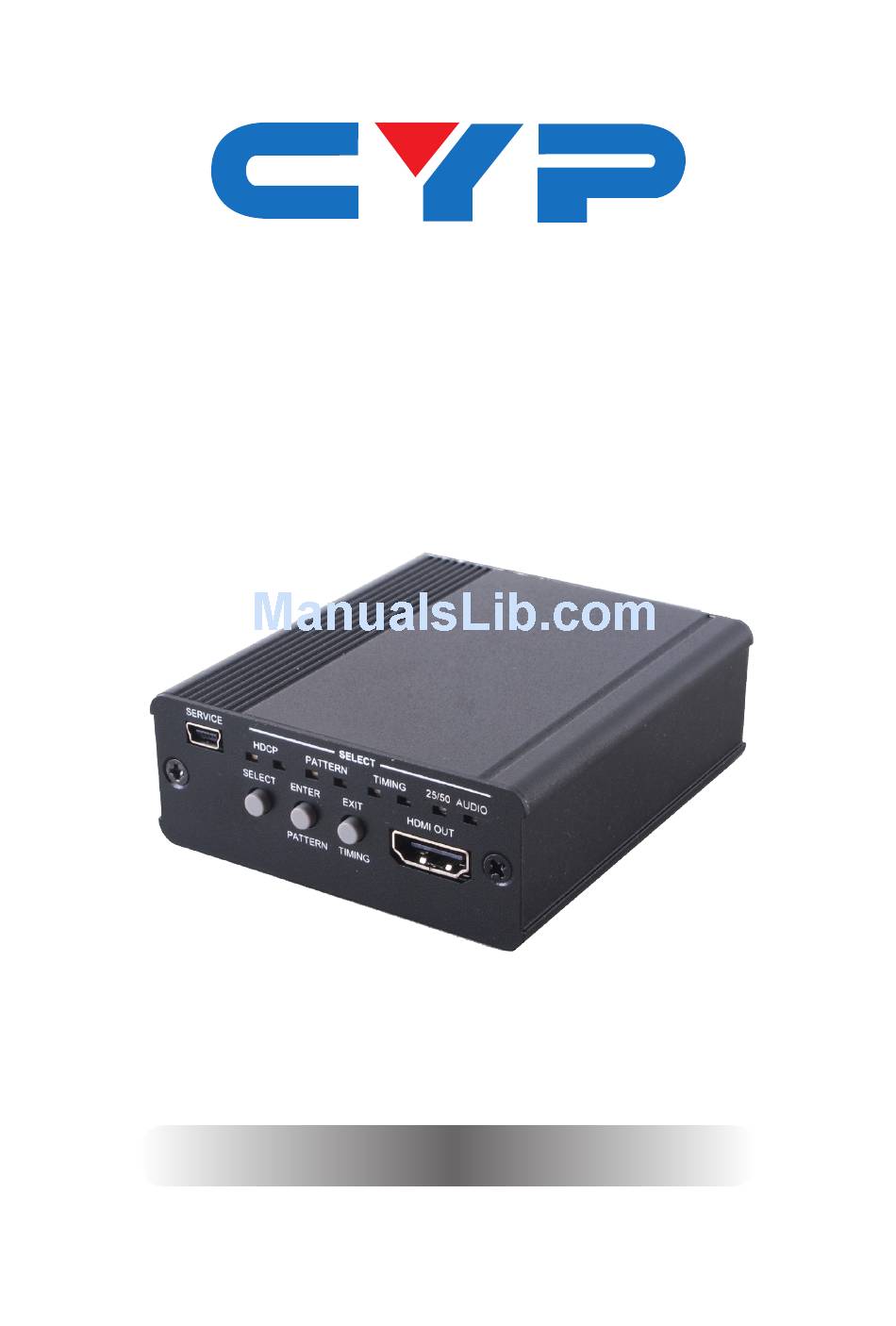

Page 1: Operation Manual
CPLUS-11HB 4K2K HDMI 6G Pattern Generator Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements .......1 5. Features .............1 6. Operation Controls and Functions ..2 6.1 Front Panel ...........2 6.2 Rear Panel ..........3 7. Connection Diagram .......5 8. Specifications ...........6... -
Page 6: Introduction
1. INTRODUCTION The 4K2K HDMI 6G Pattern Generator is the most advance and handy tool for verify HDMI devices and produce 6G HDMI signal. With built-in resolution timing and test patters of 4 each, HDCP and audio type of 3 each that provide over hundred types of test patterns. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel AUDIO IN O.V.P DC 5V OPTICAL POWER AUDIO IN L/R: Connect from audio source equipment with L/R cables. AUDIO IN OPTICAL: Connect from audio source equipment with optical cable. POWER: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 8: Rear Panel
6.2 Rear Panel SERVICE SELECT HDCP PATTERN TIMING 25/50 AUDIO SELECT ENTER EXIT HDMI OUT PATTERN TIMING SERVICE: This slot is reserved for factory use only. SELECT LED: These LEDs will illuminate according to the selection. Each selection with 2 LEDs of 3 colors, left LED is blue and right LED are red or green. - Page 9 press ENTER (to select HDCP) → press SELECT 3 times (to select HDCP2.2) → press ENTER (to confirm HDCP selection) → press SELECT again (to enter into PATTERN selection)→ press ENTER (to select Patter) → press SELECT 3 times (to select Blue Scale) → press ENTER (to confirm Pattern selection) →...
-
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player AUDIO IN O.V.P DC 5V OPTICAL POWER SERVICE SELECT HDCP PATTERN TIMING 25/50 AUDIO SELECT ENTER EXIT HDMI OUT PATTERN TIMING Amplifier or HD TV... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 600MHz/6Gbps Input Port 1 x L/R 1 x Optical 1 x USB(Service) Output Ports 1 x HDMI Supported Resolutions 720p@50/60, 1080p@50/60, 4K2K@25/30/50/60 Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Chassis Material Aluminum Chassis color Black Weight 202g Dimensions... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPLUS11HB...
