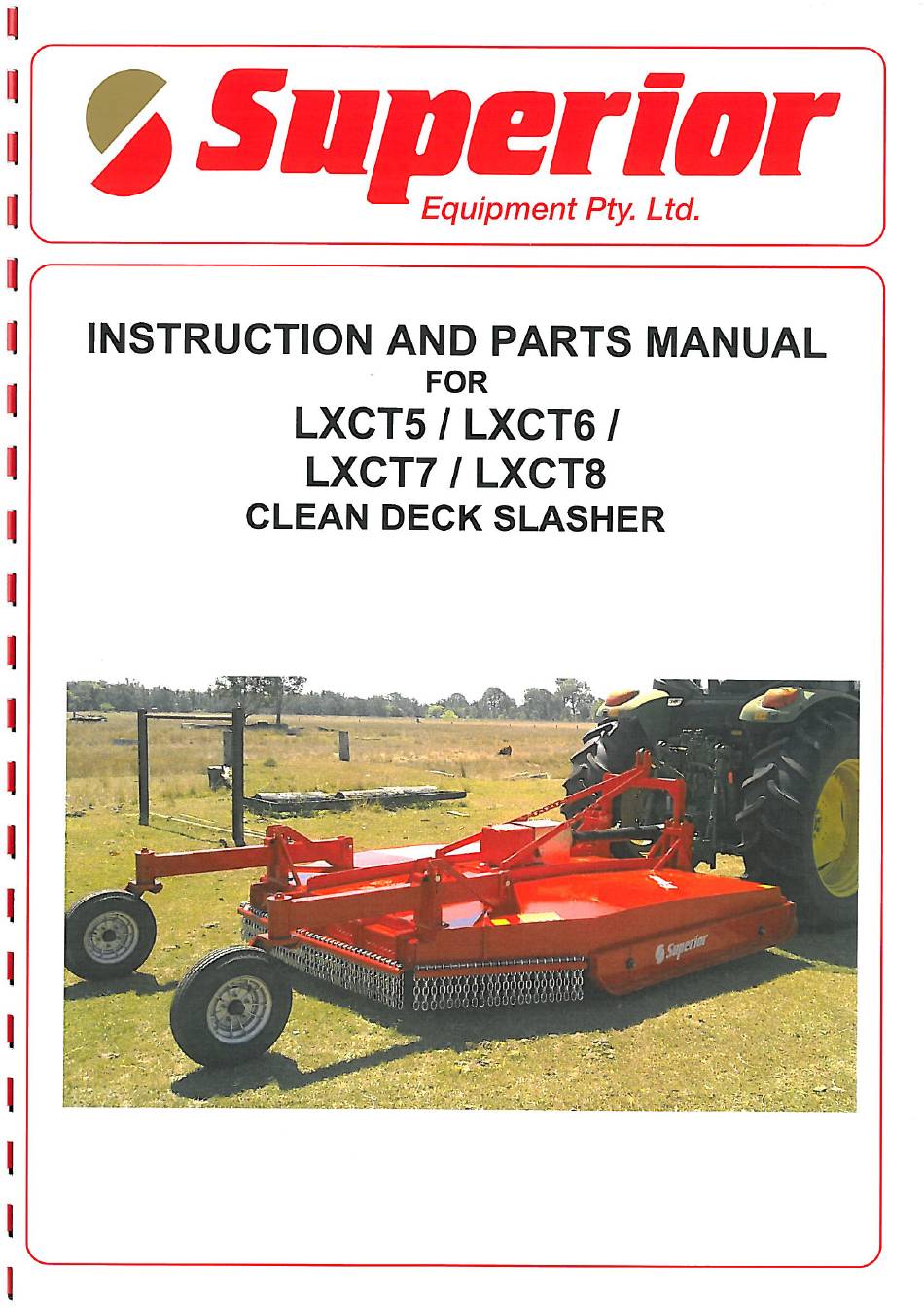

- Page 2 INSTRUCTION AND PARTS MANUAL LXCT5/ LXCT6/ LXCT7/ LXCT8 CLEAN DECK SLASHER...
- Page 3 BODY COMPONENTS ASSEMBLY 8- 8A T.P.L TOWER & CHAINS HEAVY DUTY GEAR BOX ASSEMBLY CLUTCH ASSEMBLY DRIVESHAFT ASSEMBLY CUTTING HEAD ASSEMBLY – LXCT5 / LXCT6 / LXCT7 13-13A CUTTING HEAD ASSEMBLY – LXCT8 14-14A 4 STUD WHEEL ASSEMBLY 5 STUD WHEEL ASSEMBLY...
-
Page 4: Warranty Conditions
& service personnel must read, comprehend & follow all instructions in the manual as to the safe use & maintenance of the equipment. Superior advises that their manual is a guide only & users of the equipment have a `duty of care' to perform their own risk assessment. - Page 5 SUPERIOR EQUIPMENT Australia Pty Ltd Multi Head Mowers, Slashers, Vineyard Mowers, Pasture Toppers, Post Hole Diggers, Grader Blades, Cotton Shredders, Flail Mowers, Aerators and associated Equipment. Operational Safety Instructions Before operating any Equipment it is your duty to read all Safety Labels and Warning Decals and Operating Manuals and fully comprehend their meaning.
- Page 6 POSSIBLE HAZARDS OPERATORS MUST FOLLOW OPERATORS ARE TO BE AWARE THESE SAFETY GUIDE LINES Guards enclosing cutting area of equipment / unit to be properly adjusted to prevent material from being ejected. Mowing / Slashing to stop if persons or vehicles passing close-by...
- Page 7 POSSIBLE HAZARDS OPERATORS MUST FOLLOW OPERATORS ARE TO BE AWARE THESE SAFETY GUIDE LINES Operator not to approach unit while it is operating. Operator must always stop the Slasher Operator entangled with power input prior to getting off. coupling. ...
- Page 8 Coming Apart, Check Drive Shaft Length before using Slasher in Extreme Conditions. SETTING UP SLASHER Your Superior Slasher will cut cleanest and requires less H.P. to drive when the front of the Slasher is set lower than the rear.
-
Page 9: Operation
DRIVESHAFT safety covers or will result in bending DRIVESHAFT, requiring costly repairs. OPERATION Your Superior Slasher will be set up in the factory to suit your tractor’s particular P.T.O. either 540 rpm or 1000 rpm. For best mowing results maintain correct P.T.O. speeds. - Page 21 CASTOR ASSEMBLY WITH TWIN LEG FORK AND 4 STUD 400X8 WHEEL ASSEMBLY FOR LXCT5 AND LXCT6 CLEAN SKIN SLASHERS (STANDARD ASSEMBLY) SL.NO. SL.NO. PART NUMBER PART NUMBER PART NAME PART NAME QTY. OFF QTY. OFF SL.NO. SL.NO. PART NUMBER PART NUMBER...
- Page 22 CASTOR ASSEMBLY 400X8 - 5 STUD AND TYPE 3 BEAM LXCT5/ LXCT6/ LXCT7/ LXCT8 ITEM # PART # PART NAME QTY. OFF S05067 NYLOC NUT 3/4" UNC S03559 HEX BOLT 3/4" UNC 5 1/2" LONG S02379 CASTOR BEAMS TYPE 3 S01038 NYLOC NUT 1"UNF...
- Page 24 S05063 75 x 16 BLADE 1 1/2" STEP MATERIAL TOLERANCE SCALE USED ON CHECKED BY DATE SUPERIOR EQUIPMENT PTY LTD DRAWN BY 3/06/15 1:10 LXCT6 19 QUINDUS ST. WACOL QLD 4076 PH. 07-3271 3177 PROJECTION DRAWING NO./ PART NO. HARDNESS...
-
Page 25: Warranty
CLEAN SLASHERS WARRANTY Your Superior Product is covered by Manufacturers Warranty of 180 days against faulty parts and or workmanship. Warranty does not cover operator abuse, or damage to the cutting head assembly (head flats, blades etc.) Should a warranty type problem develop with your new Mower contact your local dealer who will refer the problem to SUPERIOR EQUIPMENT.
