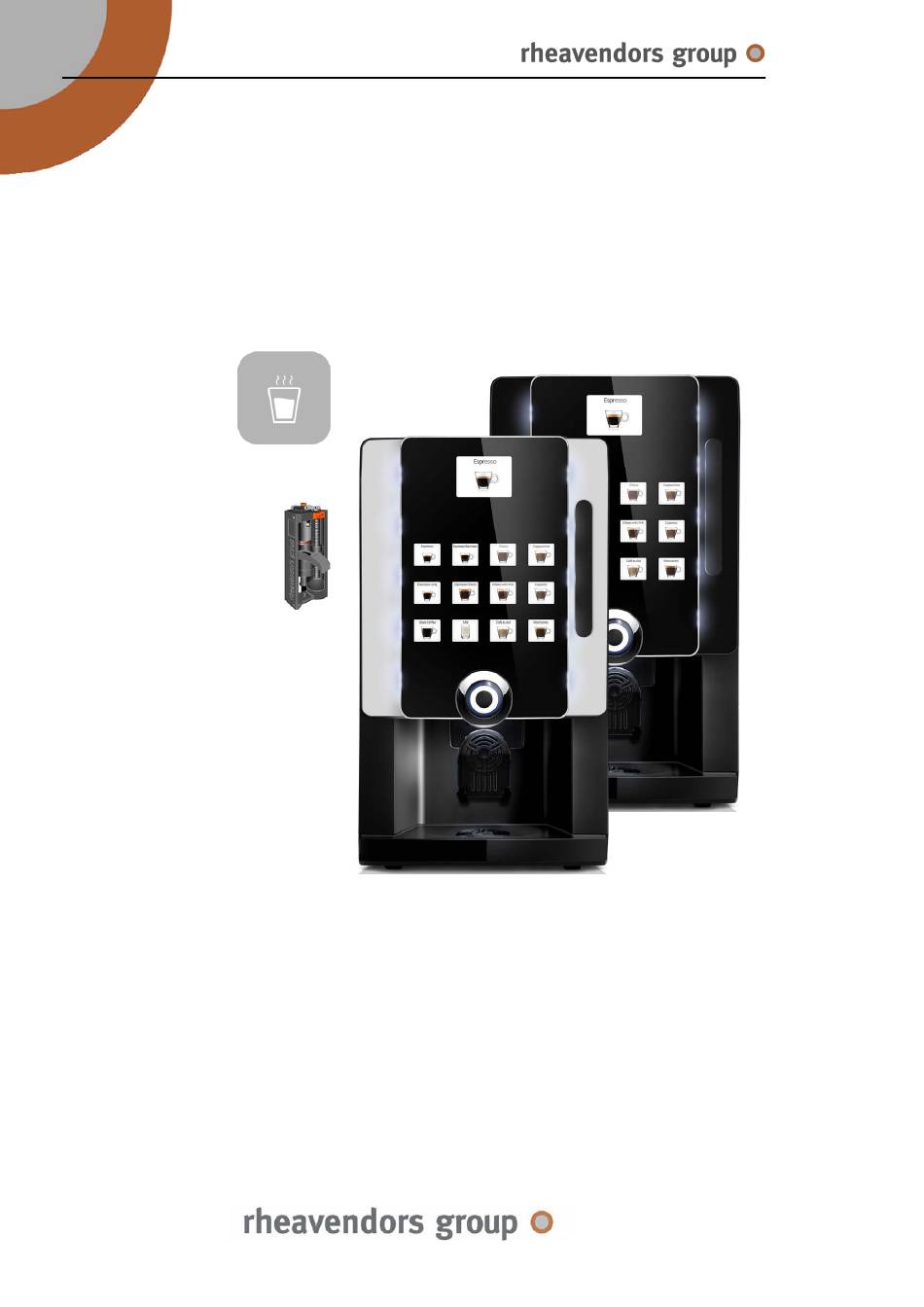

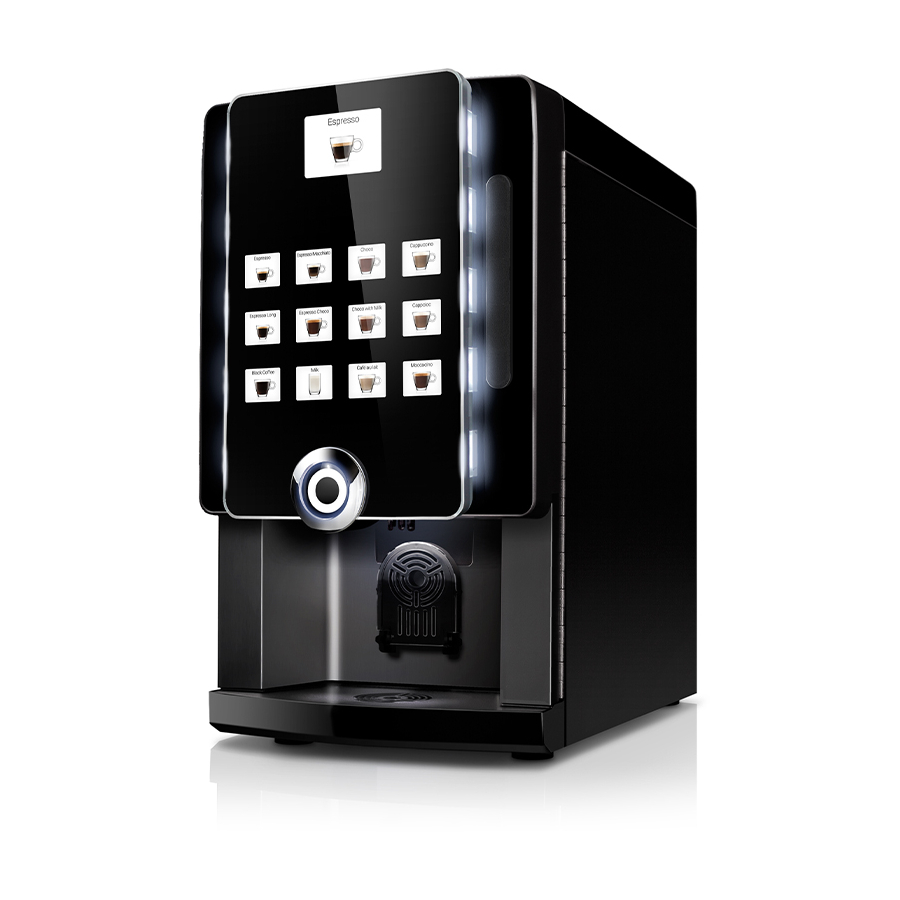

SERVICE BOOK - RHEA BUSINESS LINE EC E
by
rhea Business Line eC
E
SERVICE BOOK
___________________________________
www.rheavendors.com
- 21/02/2020 - Generated on 14/04/2020 16:26
Pag.1/60
www.rheavendors.com
tel: 0039 02 966 551
fax: 0039 02 96 55 086
email: rheavendors@rheavendors.com exclusive property of rheavendors group

Advertisement

loading
Need help?

Need help?

Do you have a question about the rhea Business Line eC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rheavendors rhea Business Line eC

Summary of Contents for Rheavendors rhea Business Line eC

  • Page 1 SERVICE BOOK - RHEA BUSINESS LINE EC E rhea Business Line eC SERVICE BOOK ___________________________________ www.rheavendors.com - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.1/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...

  • Page 2: High Voltage

    SERVICE BOOK - RHEA BUSINESS LINE EC E preliminary before using the machine, carefully read this information that helps you safety behave properly and guarantees a safe use; information the following pages use the symbols listed here below, whose meaning is of attention: GENERAL;...
  • Page 3 SERVICE BOOK - RHEA BUSINESS LINE EC E safety rules for using the vending machine pay special attention to the chapters and notes high lit by the symbols alert; strictly observe the rules concerning, in particular, operators’ and users’ safety;...
  • Page 4 SERVICE BOOK - RHEA BUSINESS LINE EC E safety rules for using the vending machine the symbol means that it is forbidden to dispose of the equipment as urban waste and compulsory to provide for separate collection in order to prevent any potential effect on the environment and human health;...

  • Page 5: Residual Risks

    SERVICE BOOK - RHEA BUSINESS LINE EC E residual risks a residual risk is understood as a potential danger that can not be eliminated and it persists despite all precautions in use since it is related to the intrinsic features of the product and it also includes non-identifiable risks;...
  • Page 6 Rheavendors Industries S.p.A. is obliged neither to compensate any economic damage due a forced stop of the machine nor to extend the guarantee period;...

  • Page 7: Preventive Maintenance

    SERVICE BOOK - RHEA BUSINESS LINE EC E Preventive maintenance: Preventive maintenance is performed periodically in order to reduce the incidence of equipment failure and the costs associated with it. Ideally, preventive maintenance will take place just before failure occurs in order to maximize the time that equipment is in use between scheduled maintenance activities.
  • Page 8 1. Use cases: the cycles required by Rheavendors refer to standard conditions of indoor use and can’t be considered valid in case, for example, of use of the machines in particularly wet environments, hot or dusty location 2.
  • Page 9 SERVICE BOOK - RHEA BUSINESS LINE EC E Boiler descaling and replacing Descaling and replacing the boiler or its elements is not directly related to the number of dispensing cycles. Also if the machine is not dispensing, the heating element is continuously activated to keep the water warm.
  • Page 10 SERVICE BOOK - RHEA BUSINESS LINE EC E The following tools are required: • Philips screwdrivers short and long • Open-end wrenches 8, 10, 12 and 13 mm • Silicone grease (GRS0000004) • Pliers Service maintenance A Service maintenance A routine: ..
  • Page 11 SERVICE BOOK - RHEA BUSINESS LINE EC E Service maintenance C The maintenance C will be considered in addition to the maintenance A and B, when required. Service maintenance C routine: .. Visually inspect brewing-unit, clean brewing chamber .. Exchange brewer parts and grease o-ring ..
  • Page 12 SERVICE BOOK - RHEA BUSINESS LINE EC E Legend Table: table title (grey background) • Pos: position reference • Code: part number • Description: part description • Critical: parts considered critical. These parts should be always in stock for service.
  • Page 13 SERVICE BOOK - RHEA BUSINESS LINE EC E cabinet (Unplumbed version) - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.13/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 14 SERVICE BOOK - RHEA BUSINESS LINE EC E cabinet (Unplumbed version) Preventive Maintenance Code Description Critical Pos. 1 Z0010028249NA-05 CABINET (BLACK) 2 GUA0011011 MACHINE FOOT D.25 3 Z0010028256NA PROFESSIONAL GROUP MOTOR PLATE (BLACK) 4 Z0010028153-03 5 VIT0002010 SCREW ST HEAD CAP M3.5X9.5...
  • Page 15 SERVICE BOOK - RHEA BUSINESS LINE EC E cabinet (Plumbed version) - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.15/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 16 SERVICE BOOK - RHEA BUSINESS LINE EC E cabinet (Plumbed version) Preventive Maintenance Code Description Critical Pos. 1 Z0010028249NA-05 CABINET (BLACK) 2 GUA0011011 MACHINE FOOT D.25 3 Z0010028255NA PROFESSIONAL GROUP MOTOR PLATE (BLACK) 4 Z0010028153-03 5 VIT0002010 SCREW ST HEAD CAP M3.5X9.5...
  • Page 17 SERVICE BOOK - RHEA BUSINESS LINE EC E UPPER COVER - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.17/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...

  • Page 18: Upper Cover

    SERVICE BOOK - RHEA BUSINESS LINE EC E UPPER COVER Preventive Maintenance Pos. Code Description Critical 1 Z0010028276NA UPPER COVER RAL9005 2 Z0010027344 RING PLUG 3 Z0010027343 PLUG SUPPORT COVER 4 Z0010028158 UPPER HINGE LID 5 VIT0002469 SCREW HEAD TAP M3.5X10...
  • Page 19 SERVICE BOOK - RHEA BUSINESS LINE EC E rear cabinet (Unplumbed version) - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.19/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...

  • Page 20: Preventive Maintenance

    SERVICE BOOK - RHEA BUSINESS LINE EC E rear cabinet (Unplumbed version) Preventive Maintenance Code Description Critical Pos. 1 Z0010028249NA-05 CABINET (BLACK) 2 ELE0060520 GROUND PIN 3 ELE0062020 PLASTIC BOARD SUP. RLCBSK-10-01BK BLACK 4 SCH0008964 CPU/POWER BOARD 5 Z0130013061 ELECTRIC COMPONENT SUPP.
  • Page 21 SERVICE BOOK - RHEA BUSINESS LINE EC E rear cabinet (Plumbed version) - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.21/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 22 SERVICE BOOK - RHEA BUSINESS LINE EC E rear cabinet (Plumbed version) Preventive Maintenance Code Description Critical Pos. 1 Z0010028249NA-05 CABINET (BLACK) 2 ELE0060520 GROUND PIN 3 ELE0062020 PLASTIC BOARD SUP. RLCBSK-10-01BK BLACK 4/a SCH0008964 CPU/POWER BOARD 4/b SCH0008964CL CPU/POWER BOARD 100/120V For 100V version 5/a Z0130013061 ELECTRIC COMPONENT SUPP.
  • Page 23 SERVICE BOOK - RHEA BUSINESS LINE EC E door - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.23/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 24 SERVICE BOOK - RHEA BUSINESS LINE EC E door Preventive Maintenance Code Description Critical Pos. 1 Z0020037671NA DOOR (BLACK) 2 Z0020037652NA CUPS STATION FRAME RAL9005 3 Z0020039078TR CUP STAT.ENLIGHTENMENT SUPPORT 4 SCH0008142 LIGHTING CUP STATION BOARD 5 SER0000028/1 LOCK-STAINLESS STEEL + KEY 3480 (Key code SER0000321)
  • Page 25 SERVICE BOOK - RHEA BUSINESS LINE EC E mixer plan (espresso version) - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.25/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 26 SERVICE BOOK - RHEA BUSINESS LINE EC E mixer plan (espresso version) Preventive Maintenance Code Description Critical Pos. 1 Z0260014026NA BREWER SUPPORT PLATE See table PRO BREWER SUPPORT+MOTOR See table ESPRESSO boiler support 4 Z0070030422 TRAP SUPPORT I3 5 VIT0002002 SCREW ST HEAD CAP M3.5X6.5...
  • Page 27 SERVICE BOOK - RHEA BUSINESS LINE EC E ESPRESSO boiler support - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.27/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 28 SERVICE BOOK - RHEA BUSINESS LINE EC E ESPRESSO boiler support Preventive Maintenance Pos. Code Description Critical 1 Z0600019720NA STAINLESS STEEL BOILER SUPPORT (BLACK) 2 Z0020018061 SELECTION BUTTON PLUG See table ESPRESSO BOILER 4/a Z0110004041 PUMP EX5 230V-50HZ 4/b Z0110004080 PUMP EX5 100V-REINF. DIODE For 100V version...
  • Page 29 SERVICE BOOK - RHEA BUSINESS LINE EC E ESPRESSO BOILER - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.29/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 30 SERVICE BOOK - RHEA BUSINESS LINE EC E ESPRESSO BOILER Preventive Maintenance Pos. Code Description Critical Z0600019701CL § BOILER 1500 W 230V 400 CC From pos.1 to pos. 5 Z0600019704CL 1300W 100V STAINLESS STEEL BOILER 400CC ASS.Y From pos.1 to pos. 5. For 100V version 2 Z0600019188 THERMOSTAT CLIP 3 ELE0000982 CLIXSON 120°...
  • Page 31 SERVICE BOOK - RHEA BUSINESS LINE EC E mixer - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.31/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 32 SERVICE BOOK - RHEA BUSINESS LINE EC E mixer Preventive Maintenance Pos. Code Description Critical 1 GUA0000084 OR 3131 2 Z0080100005 MOTOR MIXER BASE 3 Z0080100009IC MIXER MOTOR SUPPORT RAL2011 4 Z0080100011 MIXER FAN 5 Z0080100101 MIXER SHAFT GASKET 6 Z0080100015 MIXER BUSH...
  • Page 33 SERVICE BOOK - RHEA BUSINESS LINE EC E GRINDER - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.33/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 34 SERVICE BOOK - RHEA BUSINESS LINE EC E GRINDER Preventive Maintenance Code Description Pos. Critical 1/a Z0320001639NAR § MOTOR SUPPORT BLACK+PLUG Not more sold. Substituted from pos. 1/b 1/b Z0320001702R § MOTOR SUPPORT ALUMINIUM+PLUG 2 Z0320001602NAR GRINDER BLADES SUPPORT 3 VIT0009325...
  • Page 35 SERVICE BOOK - RHEA BUSINESS LINE EC E PRO BREWER SUPPORT+MOTOR - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.35/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 36 SERVICE BOOK - RHEA BUSINESS LINE EC E PRO BREWER SUPPORT+MOTOR Preventive Maintenance Code Description Critical Pos. 1 Z0260014002 VARIFLEX BREWER SUPPORT 2 ELE0001522 MICROSWITCH 3 VIT0000006 SCREW HEAD TAP CAP M3X16 4 VIT0004701 NUT M3 6 ELE0000931 NTC PROBE...
  • Page 37 SERVICE BOOK - RHEA BUSINESS LINE EC E PROFESSIONAL BREWER GROUP D.45 - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.37/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 38 SERVICE BOOK - RHEA BUSINESS LINE EC E PROFESSIONAL BREWER GROUP D.45 Preventive Maintenance Pos. Code Description Critical A Z0250014008R § CHUTE D.45 1 Z0250014081 SPRING 2 GUA0011022 PLUG B Z0250014022R § INFUSION CHAMBER D.45 included internal components and elbow C Z0250014024R §...
  • Page 39 SERVICE BOOK - RHEA BUSINESS LINE EC E PROFESSIONAL BREWER GROUP D.45 100 Z0250014000CL COFFEE BREWER VARIFLEX D 45 - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.39/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 40 SERVICE BOOK - RHEA BUSINESS LINE EC E PROFESSIONAL BREWER GROUP D.36 - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.40/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 41 SERVICE BOOK - RHEA BUSINESS LINE EC E PROFESSIONAL BREWER GROUP D.36 Preventive Maintenance Pos. Code Description Critical A Z0250014033R § CHUTE D.36 1 Z0250014081 SPRING 2 GUA0011022 PLUG B Z0250014032R § INFUSION CHAMBER D.36 included internal components and elbow C Z0250014034R §...
  • Page 42 SERVICE BOOK - RHEA BUSINESS LINE EC E PROFESSIONAL BREWER GROUP D.36 100 Z0250014060CL § COFFEE BREWER VARIFLEX D.36 - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.42/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 43 SERVICE BOOK - RHEA BUSINESS LINE EC E water inlet panel - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.43/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 44 SERVICE BOOK - RHEA BUSINESS LINE EC E water inlet panel Preventive Maintenance Pos. Code Description Critical 1 Z0800013041 AIR BREAK TANK 2 Z0110020007 PLASTIC FILTER DIAM. 20 3 TSIL07/11T SILICON HOSE 7X11 4 Z0100001065 CONNECTOR "Y" 5 Z0800009211 ELBOW CONNECTOR...
  • Page 45 SERVICE BOOK - RHEA BUSINESS LINE EC E UNPLUMBED WATER TANK - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.45/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 46 SERVICE BOOK - RHEA BUSINESS LINE EC E UNPLUMBED WATER TANK Preventive Maintenance Pos. Code Description Critical 1 Z0800012516 H2O TANK HOLDER 2 Z0800012512 WATER TANK ELBOW CONNECTOR 3 GUA0002100 SILICONE GASKET 4 Z0800012515NA RING GASKET BLACK 5 GUA0000046 OR 2137...
  • Page 47 SERVICE BOOK - RHEA BUSINESS LINE EC E products container - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.47/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 48 SERVICE BOOK - RHEA BUSINESS LINE EC E products container Preventive Maintenance Pos. Code Description Critical 1 Z0230030500 INGREDIENT CANISTER 54 190 2 Z0230030236AB WHEEL (PLASTIC) 3 Z0230030012 SPIRAL PIN 4 GUA0000083 OR 123 5/a Z0230030014 SPIRAL 18 5/b Z0230030013 SPIRAL 9...
  • Page 49 SERVICE BOOK - RHEA BUSINESS LINE EC E coffee beans container - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.49/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 50 SERVICE BOOK - RHEA BUSINESS LINE EC E coffee beans container Preventive Maintenance Code Description Critical Pos. 1 Z0230015302TR COFFEE BEANS HOPPER 2 Z0230015227TR GRINDER COVER 3 VIT0002469 SCREW HEAD TAP M3.5X10 4 Z0230015303-01IC COFFEE BEANS HOP. STOP.RAL2011 5 Z0230015306NA REGUL. GRINDER STOPPER PLATE 6 Z0230015305CK COFFEE BEANS HOP.
  • Page 51 SERVICE BOOK - RHEA BUSINESS LINE EC E OPTIONAL KIT - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.51/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...

  • Page 52: Optional Kit

    SERVICE BOOK - RHEA BUSINESS LINE EC E OPTIONAL KIT Preventive Maintenance Pos. Code Description Critical 1 Z0020035031NA COIN ENTRY PLATE BLACK 2 Z0020035033NA COIN RETURN BUTTON BLACK 3 Z0020035034 COIN RETURN BUTTON SPRING 4 Z0020035032NA PAYM SYSTEM SUPPORT 5 Z0020037656NA PAY. SYSTEM COVER...
  • Page 53 SERVICE BOOK - RHEA BUSINESS LINE EC E WIRINGS - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.53/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
  • Page 54 SERVICE BOOK - RHEA BUSINESS LINE EC E WIRINGS Preventive Maintenance Pos. Code Description Critical 1 CBLXSC0008 HEATING WIRING 2 CBLXSC0002 SUPPLY BOARD 230V WIRING 3 CBLXSC0004 24V ACTUATOR WIRING 4 CBLXSC0005 BOILER-PUMP WIRING 5 CBLXSC0006 GRINDER WIRING 6 CBLA122002 DOOR POWER WIRING 5/24V...
  • Page 55 SERVICE BOOK - RHEA BUSINESS LINE EC E The recommended replacement for key parts in the table below, is especially oriented towards machines installed in locations placed far from the headquarter and infrequently visited. The numbers have been collected on the basis of field experience and should be taken only as a reference. they are subject to change depending on, local operating conditions and therefore must be adapted to local environments.
  • Page 56 SERVICE BOOK - RHEA BUSINESS LINE EC E Recommended Spare Parts Preventive (considering Maintenance the number of vending machines) (*1) Table Code Description A B C D 1-10 >51 Pos. Critical 11-50 rear cabinet (Plumbed version) 9/b ELE0002318 MAINS SOCKET 115/250V 20/16A...
  • Page 57 SERVICE BOOK - RHEA BUSINESS LINE EC E Recommended Spare Parts Preventive (considering Maintenance the number of vending machines) (*1) Table Code Description A B C D 1-10 >51 Pos. Critical 11-50 mixer 5 Z0080100101 MIXER SHAFT GASKET Y Y Y...
  • Page 58 SERVICE BOOK - RHEA BUSINESS LINE EC E Recommended Spare Parts Preventive (considering Maintenance the number of vending machines) (*1) Table Code Description A B C D 1-10 >51 Pos. Critical 11-50 PROFESSIONAL BREWER GROUP D.45 H Z0250014020R § INFUSION CHAMBER D.45 PROFESSIONAL BREWER GROUP D.45...
  • Page 59 SERVICE BOOK - RHEA BUSINESS LINE EC E Recommended Spare Parts Preventive (considering Maintenance the number of vending machines) (*1) Table Code Description A B C D 1-10 >51 Pos. Critical 11-50 products container 7 Z0230030011 REAR BUSH products container...
  • Page 60 SERVICE BOOK - RHEA BUSINESS LINE EC E - 21/02/2020 - Generated on 14/04/2020 16:26 Pag.60/60 www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 email: rheavendors@rheavendors.com exclusive property of rheavendors group...
