SERVICE BULLETIN

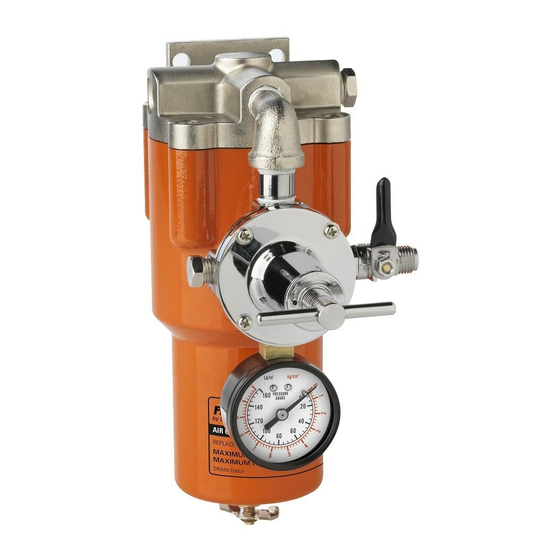

HAR-680 80 CFM FILTER + REGULATOR
DESCRIPTION
These units are designed to remove
water and dirt particles.
SPECIFICATIONS:
Air Inlet:
1/2 NPT (female)
Air Outlet HAF-580: 3/8 NPT (female)
Air Outlet HAR-680: 1/4 NPSM (male)
Air Capacity:
80 CFM filter
50 CFM regulator
Max. Pressure:
150 PSI
Max. Temp.:
150° F
Filter Size:
5 micron
Risk of personal injury.
Risk of property damage.
RELEASE ALL AIR PRESSURE
BEFORE SERVICING.
This product is specifically designed
for compressed air service. Use with
any other fluid (liquid or gas) is a
misapplication. For example, use
with or injection of certain hazard-
ous gases in the system (such as
oxygen or liquid petroleum gas)
could be harmful to the unit or
result in a combustible condition
that may cause fire or explosion.
Manufacturer's warranties are void
in the event of misapplication and
manufacturer assumes no responsi-
bility for any resulting loss.
SB-6-224-A (11/2016)
INSTALLATION
1. Assemble unit (refer to Figure1).
2. Install with the air flowing into the
top of the filter.
3. Install in a vertical position.
OPERATION
1. Turn the regulator's handle clock-
wise to increase pressure.
2. To decrease pressure, turn the
handle counterclockwise.
3. Relieve downstream pressure by
triggering spray gun or tool.
MAINTENANCE
1. Drain filter daily.
2. Depressurize before replacing
filter element.
3. Replace element at least once per
year.
SERVICE PARTS
See Parts List, page 2.
WARRANTY
This product is covered by DeVil-
biss' one year limited warranty. See
SB-1-000 which is available upon
request.
1 / 2

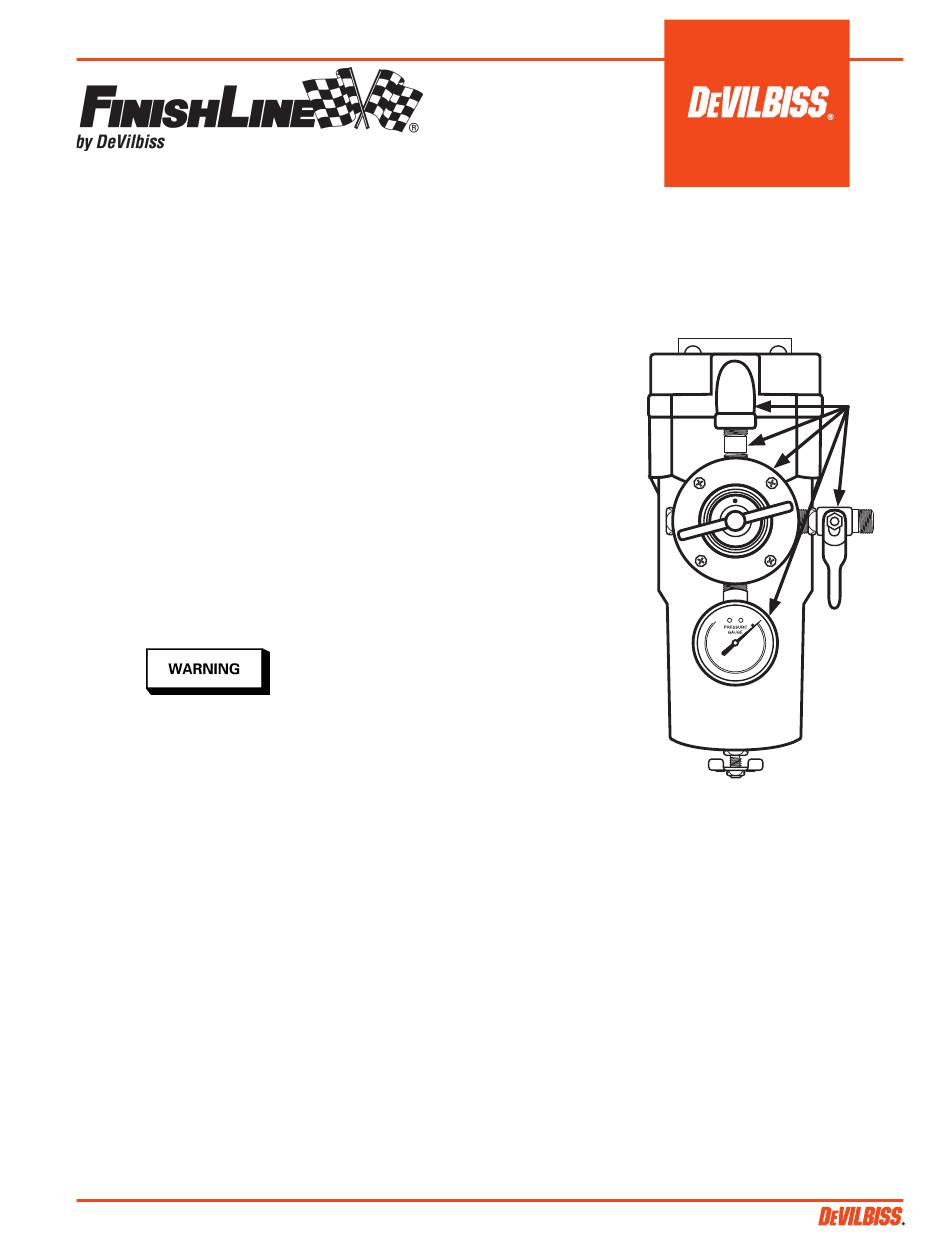

FIGURE 1
Only on
HAR-680
