SERVICE MANUAL
EN
IMPORTANT: Read and fol low all
instructions and safety precau-
tions before using this equip-
ment. Retain for future reference.
Air Pilot
Regulator
Tamper Resistant
Regulator
Manual
Regulator
SB-6-403-R1 (3/2018)

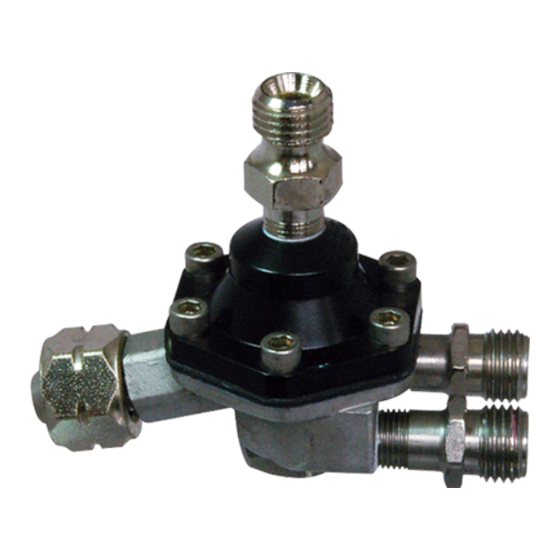

HGS STAINLESS STEEL FLUID REGULATORS
GENERAL
This service bulletin covers installation,
operation, preventive maintenance, parts
replacement, and accessory items for HGS
Fluid Regulators.
MODEL IDENTIFICATION
HGS-5 X X X
Product
Identification
Control Type
1)Air Pilot
2) Manual Adjustment
3)Tamper Resistant
Adjustment
Fluid Inlet
Configuration
1) 1/4" NPSM(M) Fitting
2) 3/8" NPSM(M) Fitting
3) Non-Circulating 1/8" NPT(F)
* Manual, non-circulating, single gun fluid regulator, primarily used in conjunction
with fluid pumps or dead end systems.
** Manual, non-circulating, can be attached to gun inlet or in line. Note: If used in
color change applications or with catalyzed materials, plug (24) must be removed
and the threads cleaned periodically.
DESCRIPTION
HGS Fluid Regulators provide regulation
of fluid to the spray gun without stopping
the flow of material which can cause set-
tling of pigmented materials.
Fluid Outlet
Configuration
1) Bayonet Lock
2) 3/8" NPSM(F)
Swivel
3) 1/4" NPSM(M)
Standpipe
9) 3/8" NPSM(M)
PROP 65 WARNING
WARNING: This product contains chemicals
known to the State of California to cause
cancer and birth defects or other
reproductive harm.
MODEL CHART
1 / 8
NOTE
These regulators may be used
with materials containing chlo-
rinated solvents.
CA PROP
65
www.carlisleft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HGS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DeVilbiss HGS Series

  • Page 1 SERVICE MANUAL HGS STAINLESS STEEL FLUID REGULATORS DESCRIPTION IMPORTANT: Read and fol low all GENERAL instructions and safety precau- HGS Fluid Regulators provide regulation This service bulletin covers installation, tions before using this equip- of fluid to the spray gun without stopping operation, preventive maintenance, parts ment.
  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS This manual contains information that is important for you to know and understand. This information relates to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the fol- lowing symbols. Please pay particular attention to these sections. NOTE Important information that tells Information that you should pay...
  • Page 3: Installation

    TECHNICAL DATA Connect fluid inlet supply hose. To Regulate Fluid Pressure on Air Pilot Models Circulating Models (bar) Connect the fluid supply hose to Fluid pressure is controlled by means either fluid inlet adapter (53 or 54). of air pressure. To actuate fluid flow, a Fluid Inlet Pressure Min.
  • Page 4: Manual Adjustment

    MANUAL FLUID REGULATOR BODY ASSEMBLIES HGS-450, TAMPER RESISTANT HGS-451, HGS-455, HGS-461 Ind. Ref. Replacement Parts Part No. Description Req. Cap Nut #10-32 Nut #10-32 Hex Key Allen Set Screw, #10-32 x 3/4" KK-5047 T-Handle Kit (Order Separately) Torx Key T-Handle MANUAL Torx Screw 10-32 Thd.
  • Page 5 AIR PILOT FLUID REGULATOR BODY ASSEMLBLIES HGS-452 AND HGS-453 Ind. Ref. Replacement Parts Part No. Description Req. 1/8"-27 NPT(F) TORQUE TO H-1766 Connector 1/8" NPT(M) 15 LB.-IN. x 1/4" NPSM(M) (1.6 N•m) SSF-3169-K6 Socket Head Cap Screw, S.S. #8-32 x 3/8" (Kit of 6) HGS-4 Bonnet TORQUE TO...
  • Page 6 FLUID OUTLET CONNECTORS Ref. Replacement Ind. Part No. Description Parts Req. HC-370-1 Bayonet Lock Body Not Used Stem Seal HGS-401-1 Ball Seat Stainless Steel Ball Bayonet 7/16" Diameter Assembly Spring HGS-25 Bayonet Body *KK-5061 Repair Kit 1/8-27 NPT(M) Ref. Replacement Ind.
  • Page 7: Troubleshooting Chart

    SERVICE Pressurized parts cause a risk of injury if disassembled. Shut off and relieve pressure before disconnecting hoses from the fluid regulator. Cleaning or servicing is required if the regulator does not: regulate fluid, maintain its pressure setting, or leaks fluid. To service regulator, relieve pressures, disconnect regulator from spray gun and hoses from regulator.
  • Page 8: Warranty Policy

    For specific warranty information please contact Carlisle Fluid Technologies. Carlisle Fluid Technologies is a global leader in innovative finishing technologies. Carlisle Fluid Technologies reserves the right to modify equipment specifications without prior notice. DeVilbiss , Ransburg , ms , BGK , and Binks ®...
