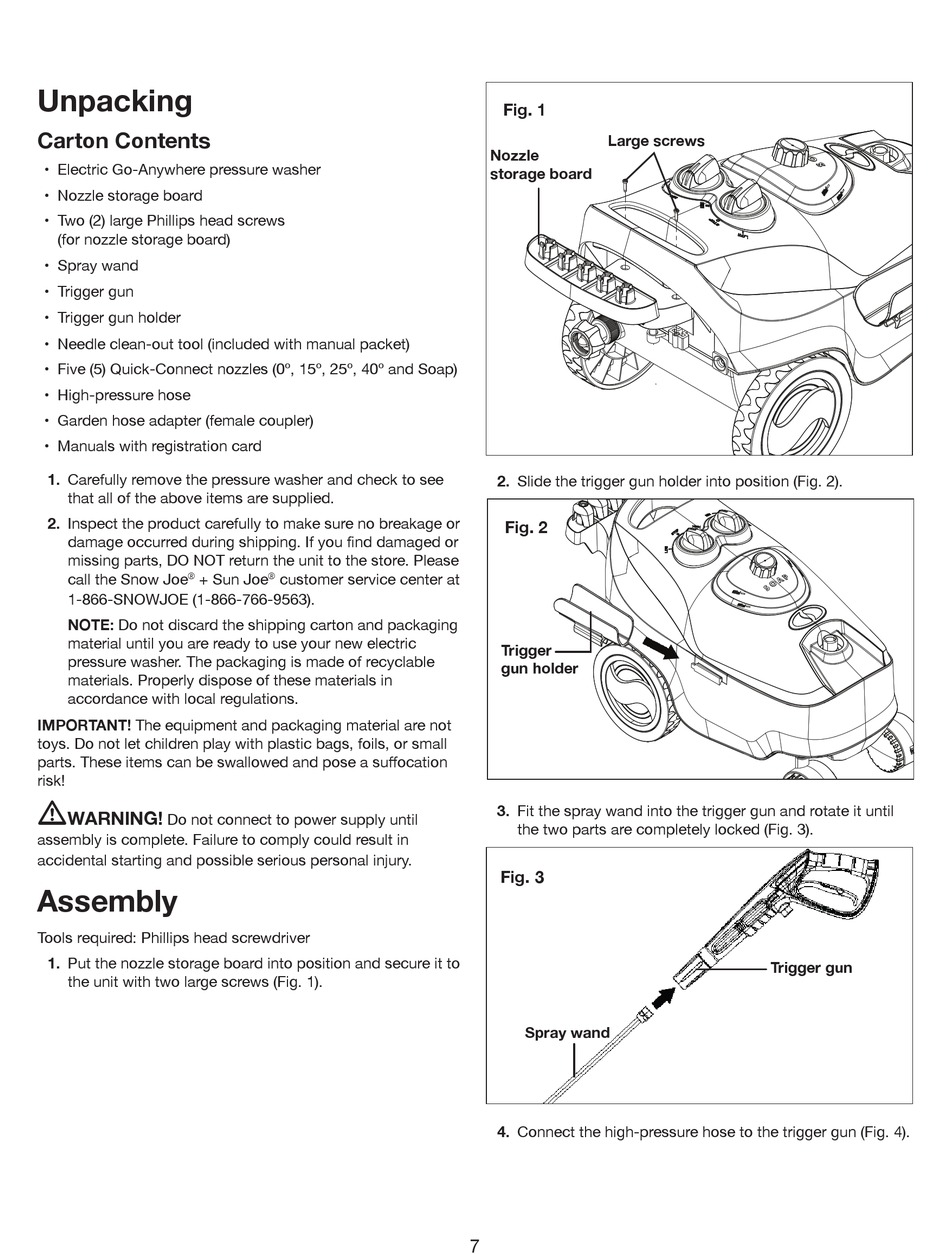

Unpacking

Carton Contents

• Electric Go-Anywhere pressure washer
• Nozzle storage board
• Two (2) large Phillips head screws
(for nozzle storage board)
• Spray wand
• Trigger gun
• Trigger gun holder
• Needle clean-out tool (included with manual packet)
• Five (5) Quick-Connect nozzles (0º, 15º, 25º, 40º and Soap)
• High-pressure hose
• Garden hose adapter (female coupler)
• Manuals with registration card
1. Carefully remove the pressure washer and check to see
that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you find damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe + Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use your new electric
pressure washer. The packaging is made of recyclable
materials. Properly dispose of these materials in
accordance with local regulations.
IMPORTANT! The equipment and packaging material are not
toys. Do not let children play with plastic bags, foils, or small
parts. These items can be swallowed and pose a suffocation
risk!
m
WARNING!
Do not connect to power supply until
assembly is complete. Failure to comply could result in
accidental starting and possible serious personal injury.
Assembly
Tools required: Phillips head screwdriver
1. Put the nozzle storage board into position and secure it to
the unit with two large screws (Fig. 1).
customer service center at
®
Fig. 1
Large screws
Nozzle
storage board
2. Slide the trigger gun holder into position (Fig. 2).
Fig. 2
Trigger
gun holder
3. Fit the spray wand into the trigger gun and rotate it until
the two parts are completely locked (Fig. 3).
Fig. 3
Spray wand
4. Connect the high-pressure hose to the trigger gun (Fig. 4).
7
Trigger gun
