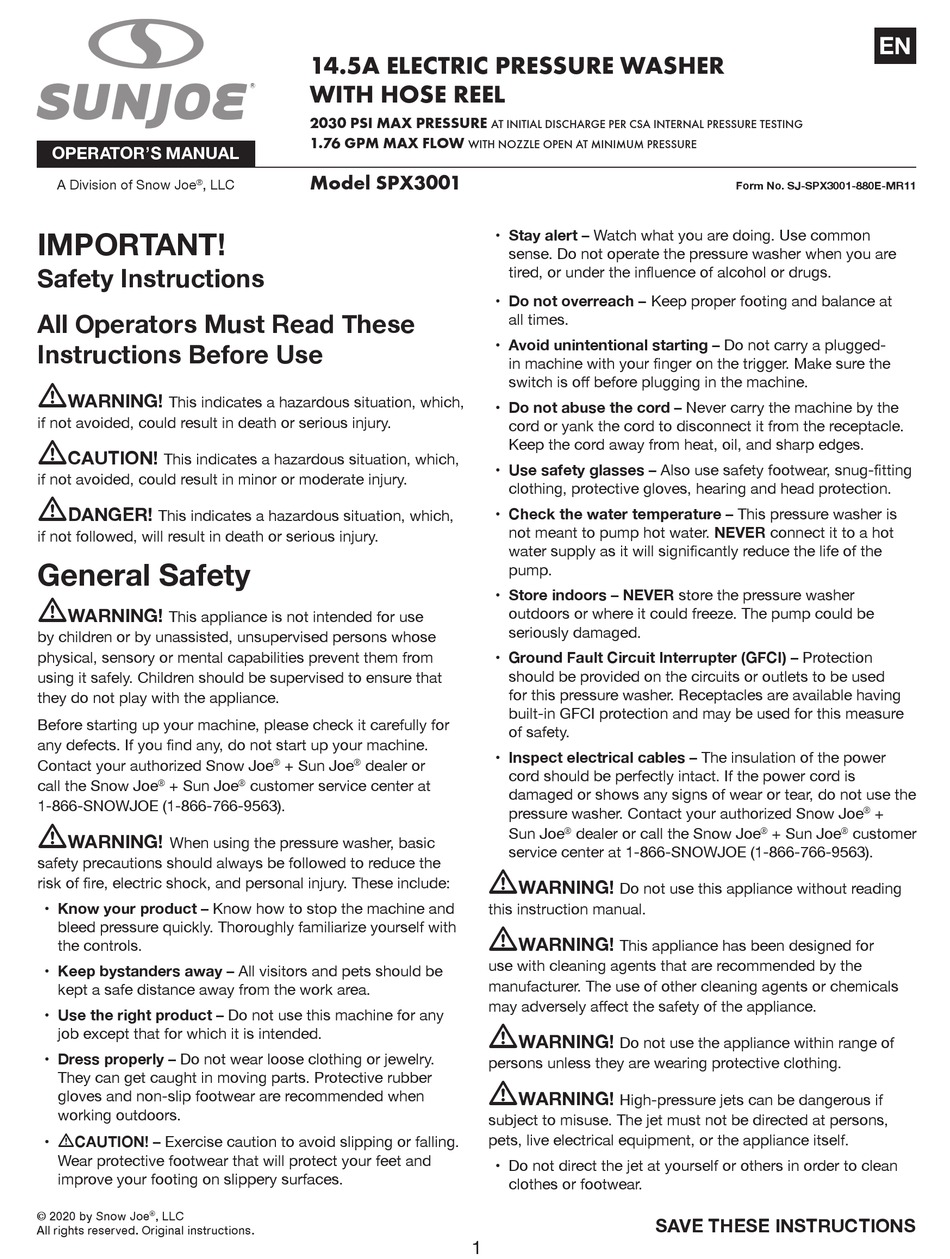

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you find any, do not start up your machine.
Contact your authorized Snow Joe
call the Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
When using the pressure washer, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury. These include:
• Know your product – Know how to stop the machine and
bleed pressure quickly. Thoroughly familiarize yourself with
the controls.
• Keep bystanders away – All visitors and pets should be
kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any
job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
CAUTION! – Exercise caution to avoid slipping or falling.
m
Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
© 2020 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

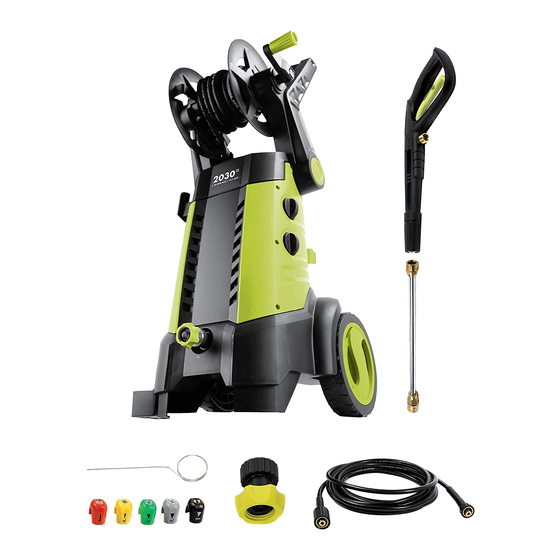

14.5A ELECTRIC PRESSURE WASHER
WITH HOSE REEL
R
2030 PSI MAX PRESSURE
1.76 GPM MAX FLOW
Model SPX3001
+ Sun Joe
dealer or
®
®
customer service center at
®
AT INITIAL DISCHARGE PER CSA INTERNAL PRESSURE TESTING
WITH NOZZLE OPEN AT MINIMUM PRESSURE
• Stay alert – Watch what you are doing. Use common
sense. Do not operate the pressure washer when you are
tired, or under the influence of alcohol or drugs.
• Do not overreach – Keep proper footing and balance at
all times.
• Avoid unintentional starting – Do not carry a plugged-
in machine with your finger on the trigger. Make sure the
switch is off before plugging in the machine.
• Do not abuse the cord – Never carry the machine by the
cord or yank the cord to disconnect it from the receptacle.
Keep the cord away from heat, oil, and sharp edges.
• Use safety glasses – Also use safety footwear, snug-fitting
clothing, protective gloves, hearing and head protection.
• Check the water temperature – This pressure washer is
not meant to pump hot water. NEVER connect it to a hot
water supply as it will significantly reduce the life of the
pump.
• Store indoors – NEVER store the pressure washer
outdoors or where it could freeze. The pump could be
seriously damaged.
• Ground Fault Circuit Interrupter (GFCI) – Protection
should be provided on the circuits or outlets to be used
for this pressure washer. Receptacles are available having
built-in GFCI protection and may be used for this measure
of safety.
• Inspect electrical cables – The insulation of the power
cord should be perfectly intact. If the power cord is
damaged or shows any signs of wear or tear, do not use the
pressure washer. Contact your authorized Snow Joe
Sun Joe
dealer or call the Snow Joe
®
service center at 1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
Do not use this appliance without reading
this instruction manual.
m
WARNING!
This appliance has been designed for
use with cleaning agents that are recommended by the
manufacturer. The use of other cleaning agents or chemicals
may adversely affect the safety of the appliance.
m
WARNING!
Do not use the appliance within range of
persons unless they are wearing protective clothing.
m
WARNING!
High-pressure jets can be dangerous if
subject to misuse. The jet must not be directed at persons,
pets, live electrical equipment, or the appliance itself.
• Do not direct the jet at yourself or others in order to clean
clothes or footwear.
1
Form No. SJ-SPX3001-880E-MR11
+ Sun Joe
®
SAVE THESE INSTRUCTIONS
