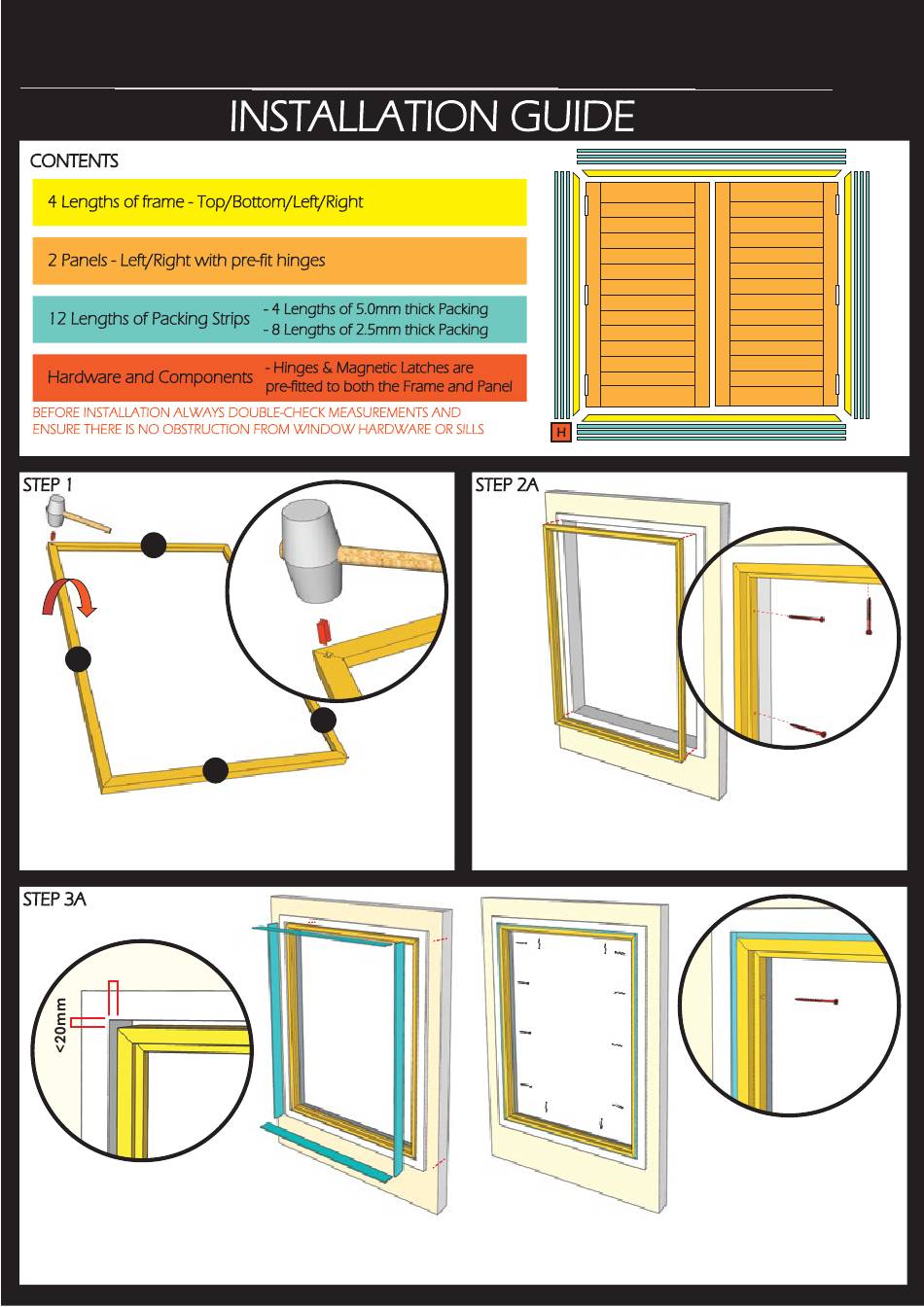

Pillar 0179587 Installation Manual

Plantation Shutters
CONTENTS
4 Lengths of frame - Top/Bottom/Left/Right
2 Panels - Left/Right with pre-fit hinges
12 Lengths of Packing Strips
Hardware and Components
BEFORE INSTALLATION ALWAYS DOUBLE-CHECK MEASUREMENTS AND
ENSURE THERE IS NO OBSTRUCTION FROM WINDOW HARDWARE OR SILLS
SHUTTERS ARE FOR INTERNAL USE ONLY
STEP 1
T
FACE DOWN
R
Identify Top/Bottom/Left/Right Frame lengths, lay face
down on a soft flat surface. Use Hoffman Key and
mallet, wedge into place forming strong corners
STEP 3A
<20mm
RECESS MOUNT - If the recess opening is slightly larger
than the frame, 2.5mm and/or 5mm packing pieces
can be used to fill up to 20mm in total width & height.
INSTALLATION GUIDE
- 4 Lengths of 5.0mm thick Packing
- 8 Lengths of 2.5mm thick Packing
- Hinges & Magnetic Latches are
pre-fitted to both the Frame and Panel
L
B
H
STEP 2A
RECESS MOUNT - Align constructed frame with window
and insert into opening. Ensure frame is square and fit
into place using screws provided. Pre-drill as required.
Once the matching packing pieces form a secure fit
into the recess, ensure frame is square and fit into
place using screws provided. Pre-drill as required.
