- Page 1 MTC HC-300 0 INSTALLATION, OPERATING, AND MAINTENANCE MANUAL High Capacity Mobile Tank Cleaning, Fuel Optimization, and Transfer System 1.239.690.9589 1.877.425.4239 Toll Free AXI.International AXInternational AXIFuel AXIFuel www.AXI-International.com REV0303HC300010318...

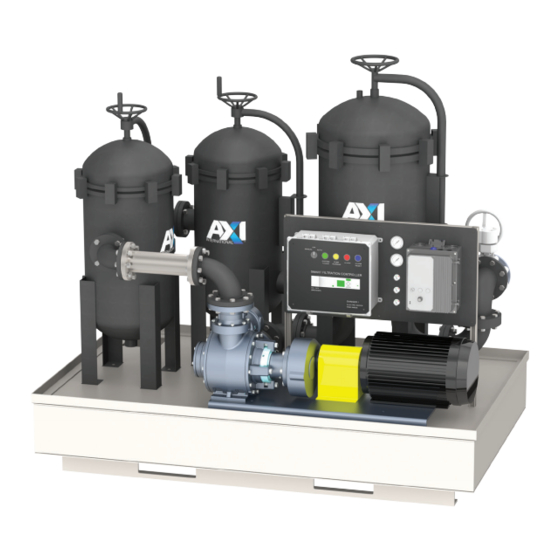

- Page 2 High Capacity Mobile Fuel Polishing System The MTC HC-300 Mobile Fuel Polishing System is a high capacity system designed to efficiently and safely clean and restore fuel to pristine condition. Connected to a fuel storage tank as a “dialysis system,” it effectively removes sludge, particulate and water while restoring, conditioning, and optimizing fuel.
- Page 3 Pre-Filter Vessel Inlet Port Variable Frequency Controller Pump & Motor SMART Filtration Controller Inline Magnetic Fuel Conditioner MTC HC-300 OPTIONS AFC 705/710 FUEL ADDITIVE Enclosure Filtration Options A unique and powerful broad spectrum concentrate for use AFC 705/710 Fuel Catalyst Connection Type in diesel, gasoline, bio-fuel, kerosene, and HFO.
-
Page 4: Table Of Contents
Table of Contents General Overview ................................System Components ................................. Pump/Motor ................................. Pre-Filter/Water Separator ............................Final Filter ..................................Fuel Conditioner ................................Plumbing ..................................Commissioning/Initial Startup ............................Preparations ................................... General Tank Cleaning Procedure ..........................System Operation ................................Operating Procedure ..............................Phase 1 ................................... Phase 2 ................................... -
Page 5: General Overview
General Overview MTC HC-300 Specifications Flow Rate ................300 GPM (1135.6 LPM) Outline Dimensions..............96”x 54” x 82” (244 x 137 x 208 cm) (H x W x D) System Weight................. ≈ 5500 lbs (2495 kg) Operating Temperature ............41 - 104°F (5 - 40°C) Electrical ................. -
Page 6: System Components
System Components Control and Safety Devices • AXI International “Smart Filtration Controller” in electrical sub enclosure – UL 508A listed Industrial Control Panel • Pump control switch (Off/Manual), weatherproof, key operated • Alarm Reset --‐ weatherproof push button • Power available indicator •... -
Page 7: Commissioning/Initial Startup
Kolor Kut paste will show the water level in the tank, and indicate how much water, and sludge, will have to be removed. Call AXI International for further information on other fuel sampling equipment. -
Page 8: System Operation
ID “stinger”, or if the length of the suction hose is increased, reduce pump speed with the Speed Control Dial so that the vacuum gauge remains in the green color band. The system’s PLC controller will halt system operation automatically if the suction vacuum exceeds safe limits. Note: To adjust vacuum settings of MTC HC-300, please contact AXI International. REV0303HC300010318... -
Page 9: Phase 2
17. Observe System Priming. 18. Check for leaks or other abnormalities. 19. If anything deviates contact AXI International immediately Phase 2: After removing the bulk of the sludge and water from the tank into a separate container for disposal, the return hose is now inserted into the tank, ending Phase One. -
Page 10: Phase 3
Differential gauges are installed to show the pressure drop over each filter individually. 7. Now is the time to add AXI International AFC-710 Fuel Catalyst in a dose of 1 : 2500 or 1 gal of AFC-710 for 2500 gallons of fuel. -
Page 11: Afc Fuel Additive
AFC Fuel Additive The use of AXI International AFC-705/710 Fuel Additive is an essential part of any tank cleaning and fuel polishing procedure, as AFC can more rapidly and efficiently decontaminate and clean the entire fuel system. The additive is best introduced into the process after Fine Filtration Mode. -
Page 12: Primary Inspection
Primary Inspection Upon arrival, the system and accessories must be visually inspected before installation. Improper handling during shipping may cause physical or electrical problems. Immediately report or note any damages (also concealed ones) to the shipper. Checklist ❑ If the packing crate shows signs of damage inspect the system for damage. ❑... -
Page 13: Priming The System
Priming the System Note: The system is equipped with a positive displacement vane pump. It should never be run dry and started without the hoses attached and/or valves in the closed position. Failure to do so may damage the bypass valve and/or pump. Priming Procedure Before turning on the pump make sure the entire suction side of the MTC system (suction hose, separator, plumbing, pump, strainer …) is primed and filled with oil/diesel fuel. -
Page 14: Controller
Note: ALL other Speed Controller Control Pad Functions (Run, Stop, Forward, Reverse) are disabled. Alarms The system is equipped with an AXI International Smart Filtration Controller. System and alarm status are displayed on the industrial control panel (on the door) via indicator lights, and LCD screen on PLC inside. -
Page 15: Maintenance
Maintenance ! IMPORTANT ! It is recommended that only qualified, experienced personnel, familiar with this equipment, who have read and understood all the instructions in this manual should install, operate and maintain the system. ! IMPORTANT ! Always disconnect the system from the electric power supply before working or servicing it. -
Page 16: Servicing Pre-Filter/Water Separator
1. 2 to 30 micron high efficiency particulate filter 2. 5 to 30 micron water block fine filter The AXI International Water Block removes entrained and emulsified water from fuel and oil. Changing Filters: Pending all butterfly valves are open, a differential pressure drop of 22 PSI, as shown by the differential pressure gauges on the final filters, indicates that the final filter elements of that vessel need to be changed. -
Page 17: Servicing Final Filter(S)
Servicing Bag Filter Note: Always have an adequate supply of filter elements/bags on hand. Changing Bag Filters: At 15”HG vacuum, the bag filter elements should be replaced. 1. For a “no mess” bag filter change, the bag filter vessel should be pumped empty. To accomplish this, remove the suction “stinger”, or open atomspheric vent on top of “stinger”. -
Page 18: Saftey Notes
Safety Notes • The MTC Pump is designed to be used with diesel fuel and oils only. The pump is NOT designed for gasoline, alcohol or other explosive or corrosive liquids. • Please contact us if you are not sure if the liquid you are intending to polish and clean is compatible with the MTC system. -
Page 19: Troubleshooting
Troubleshooting No fuel delivery Pump requires frequent re-priming 1. Pump does not run 1. Inoperative foot valve 2. Pump is not primed 2. Inoperative check valve 3. Fuel supply line blocked 3. Inoperative solenoid valve (optional) 4. Excessive lift 4. Pump cavitations 5. -
Page 20: Filter Chart
PFB-30-25 PFB-30-75 PFB-30-250 PFB-30-800 MTC HC-50 PFB-30-1 PFB-30-5 PFB-30-10 PFB-30-25 PFB-30-75 PFB-30-250 PFB-30-800 MTC HC-90 PFB-30-1 PFB-30-5 PFB-30-10 PFB-30-25 PFB-30-75 PFB-30-250 PFB-30-800 MTC HC-150 PFB-150-1 PFB-150-5 PFB-150-10 PFB-150-25 PFB-150-1 PFB-150-250 PFB-150-800 MTC HC-300 PFB-150-1 PFB-150-5 PFB-150-10 PFB-150-25 PFB-150-1 PFB-150-250 PFB-150-800... -
Page 21: Warranty
AXI International to make similar changes in such products that were previously manufactured. To the fullest extent permitted by law, any claims against AXI International are limited to the remedies as expressly set forth in this warranty and any other further claims, such as but not limited to, compensation for any damage incurred other than to the AXI International product, are hereby excluded. -
Page 22: Parts/Service
Internet: www.axi-international.com Please provide the following information: Serial Number of your MTC HC-300, the required part numbers and quantity. The drawings/parts list included in this manual are the most accurate source of part numbers for your MTC HC-300. Replacement Filter Elements Pre-Filter(s): •... - Page 23 NOTES:...
- Page 24 To the bene t of our customers and the AXI network, we’ve become very e cient at doing so - faster than any other company in the industry.
