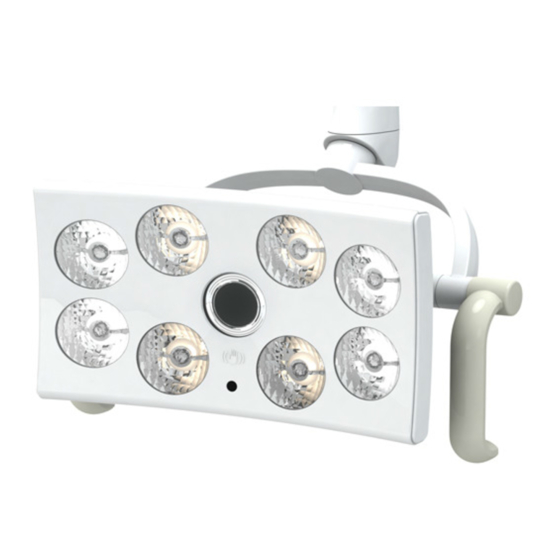

- Page 1 Global TOP 10 in Healthcare LUVIS C500 SERVICE MANUAL (V2.1) 10/11/2017 Dantal Light DENTIS CO., LTD. 99, Seongseoseo-ro, Dalseo-gu, Daegu, Korea Tel. 82-53-583-2804 FAX. 82-53-583-2806 www.dentis.co.kr / www.luvis.co.kr Please read this service manual before installing this equipment.
-
Page 2: Table Of Contents
CONTENTS 1. Standard ..................................... 4 2. Warning ...................................... 5 3. Symbol......................................7 4. Safety instruction..................................8 5. LIGHTHEAD specification ..............................9 5.1 Technical specification (In accordance with EN/ISO 9680: 2014) ................9 5.2 Electrical specification (In accordance with IEC 60601-1) ..................10 5.3 Mechanical specification .............................. - Page 3 10.2 Remote Control (Optional) ............................34 10.3 RESIN COVER (Optional) ............................. 35 10.4 HANDLE ................................... 35 10.5 SENSOR ................................... 36 10.6 Positioning..................................37 11. Setting ....................................38 11.1 Adjusting the balancing of the ARM ........................38 11.2 OperOperating range of HEAD ARM ........................39 11.3 Operating range of MAIN ARM ..........................
-
Page 4: Standard
1. Standard Ÿ Certification of DENTIS ž ISO 9001:2008 ž EN ISO 13485:2012 Ÿ Relevant EC Directives: 93/42/EEC Medical Device Directive as amended by 2007/47/EC, Annex I and Annex VII. Ÿ Applied Standards: ž EN ISO 15223-1:2012, Medical devices – Symbols to be used with medical device labels, labelling and information to be supplied ž... -
Page 5: Warning
WARNING This product may only be repaired and special assembly work may only be carried out by DENTIS or a company that has been authorized by DENTIS. WARNING Check the polarity of all electrical connections before turning on the power. - Page 6 However, DENTIS takes no responsibilities of the results caused by default, omission, or misuse of it. WARNING DENTIS has rights to modify the product itself or specifications of the product without any prior notice, as well as rights not to renew that modification on this manual.
-
Page 7: Symbol
3. Symbol Symbol Meaning CE label The device bears the CE mark and complies with the requirements of European Directive 93/42/EEC Medical Device Directive as amended by 2007/47/EC, Annex I and Annex VII. Medical general medical equipment as to electrical shock, fire and mechanical hazards only in accordance with ANSI/AAMI ES60601-1 &... -
Page 8: Safety Instruction
Given the confidential nature of the information in this document, it is distributed exclusively to customers and installers of DENTIS products. Ÿ Check with the DENTIS network to ensure that you have the latest versions of these documents. Ÿ If you are authorized to engage the services of a contractor for all or part of... -
Page 9: Lighthead Specification
5. LIGHTHEAD specification 5.1 Technical specification (In accordance with EN/ISO 9680: 2014) Ÿ STANDARD SPECIFICATION LUVIS 500 Specifications Unit Remark BASIC RESIN COVER 3,000 2,000 Central illuminance 50,000 30,000 @ 4,500K Ec (@70cm) Irradiance 171.86 92.27 W/㎡ (Ee) Illuminance in ≤... -
Page 10: Electrical Specification (In Accordance With Iec 60601-1)
50,000h WARNING Please use be connected to a chair that can limit the power supply. If the power supply is not a dental chair, use the special adapter, which Must provided by the DENTIS. 5.3 Mechanical specification Specifications Length(mm) Weight(kg) -
Page 11: Camera(Optional) Specification
Video Output Signal 3G HD-SDI SMPTE 424M, HD-SDI 292M 75Ω BNC * Select one of the two types of cameras to install 6. Other characteristic Specifications LUVIS C500 Remark Protection against electric shock Class I Protection Protection against harmful ingress Ordinary... -
Page 12: Product Installation
8. Product Installation 8.1 Components name CHAIR TYPE Professional LED Light System for All of Surgery Application... - Page 13 MOBILE TYPE Professional LED Light System for All of Surgery Application...
- Page 14 WALL TYPE Professional LED Light System for All of Surgery Application...
- Page 15 CEILING TYPE Professional LED Light System for All of Surgery Application...
-
Page 16: Chair Type Installation
- Check the arm bolt size before installation. - Avoid pressure of wire - Avoid peeling of the paint on the arm Check packaging · Check the product releasing condition - If damage is found, contact DENTIS Professional LED Light System for All of Surgery Application... - Page 17 Wiring & connecting · wiring & connecting chair arm and SECOND MAIN ARM. · INTERNAL CAMERA Model is connected to ADAPTER - Please turn off the chair power - Be careful with the polarity(DC Input only) COAXAL CABLE Connecting (INTERNAL CAMERA Model ·...
-
Page 18: Mobile Type Installation
Installation Guide Check packaging · Check the product releasing condition - If damage is found, contact DENTIS. CASTER Combination · Open the BASE BODY BOX, take out the product · Put face down on the floor, after checking the conditions ·... - Page 19 BASE BODY and insert the BASE WEIGHT to the BASE BODY. · Insert the M6 X L35 Hexagon screws and tighten them with a 5mm Allen wrench - Be careful finger injury. When insert a BASE WEIGHT. · Properly align the center hole of WEIGHT to the pole inside the BASE BODY and insert the BASE WEIGHT to the BASE BODY.
- Page 20 Harness Connection · ADAPTER DC Cable and MOBILE VERTICAL ARM HARNESS connection · Fixed using a shrink tubing - The cable must not be fallen. · Combining MOBILE VERTICAL ARM after reverse the BASE BODY · 90 ° degree Tilt - Be careful with peeling of the paint on the arm - Please be sure you lock the caster after work VERTICAL ARM...
- Page 21 · Take out the harness from the MOBILE VERTICAL ARM - Be careful that loose harness come loose. SECOND MAIN Combination · Insert the harness in the SECOND MAIN ARM · Connect the MOBILE VERTICAL ARM and the SECOND MAIN - Be careful with pressed wire.
- Page 22 Completion · Handle R/L(Check direction of) combinations · Check the operation 번호 Shelf Installation Guide ∙ Putting the urethane sealing in the TRAY HOLD MOUNT1 ∙ TRAY HOLD MOUNT2 combination TRAY HOLD - Be careful with peeling of the paint on the arm MOUNT Combination ∙...
- Page 23 ∙ Moderately tightening the bolts and nuts ∙ Move the handle forward fixed ∙ Combine VERTICAL SURFACE MOUNT to TRAY HOLD MOUNT - Be careful with peeling of the paint on the arm VERTICAL SURFACE MOUNT Combination ∙ Tightening a hexagon bolt with a 3mm Allen wrench ∙...
-
Page 24: Wall Type Installation
∙ Fixed shelves OK 8.4 WALL TYPE Installation Installation Guide Check packaging · Check the product releasing condition - If damage is found, contact DENTIS WALL BRAKET Combination · To fix the WALL BRAKET on the wall SECOND MAIN ARM Combination ·... - Page 25 - Avoid peeling of the paint on the arm FIRST MAIN ARM connecting · Connecting SECOND MAIN ARM and FIRST MAIN ARM chair arm (including head) · Check the wire(wire harnesses) condition and connecting - Avoid pressure of wire - Avoid peeling of the paint on the arm FIRST MAIN ARM Combination ·...
-
Page 26: Ceiling Type Installation
Check packaging · Check the product releasing condition - If damage is found, contact DENTIS · Check the hole location of CEILING VERTICAL ARM & BASE Hole - location of the holes must be careful not to play. CEILING VERTICAL Combination ·... - Page 27 · Fixed with bolt and nut · Ensure that the well fixed · Make sure the hex bolts loosened · Adjust the Wrench bolt left and right for horizontality · Check whether there’s no swing Wiring & Connecting · Harness into the CEILING VERTICAL ARM ·...
- Page 28 ARM BOLT Combination · ARM BOLT Ass’y into the CEILING VERTICAL ARM · Fixed with 3mm allen wrench - If damage is found, contact DENTIS · SEILING COVER inserted into the CEILING VERTICAL ARM CEILING COVER · Stopper O-ring insertion...
- Page 29 · Move the o-ring to the position to stop the plastic cover · Ceiling cover have to cover all bracket and fit to ceiling side. · Fixed bolt with 3mm allen wrench · CEILING VERTICAL ARM Harness check · SECOND MAIN ARM Harness check SECOND MAIN ARM Combination ·...
-
Page 30: Electrical Connection
Completion · Handle R/L(Check direction of) combinations · Check the operation 9. Electrical connection WARNING The electrical connections must be performed by a authorized service personnel only. WARNING Check the polarity of all electrical connections before turning on the power. Insert the power cables carefully to protect against the risk of electrocution WARNING Do not remove covers or perform service other than as described in this equipment... -
Page 31: Wiring Diagram
9.1 Wiring Diagram DENTAL CHAIR TYPE Professional LED Light System for All of Surgery Application... - Page 32 SWITCHING POWER ADAPTER TYPE Professional LED Light System for All of Surgery Application...
-
Page 33: Use
10. USE 10.1 HEAD CONTROLLER The LED DENTAL LIGHT can be controlled using the HEAD CONTROLLER Ÿ Illumination Function - Dial type (option, remote controllable) - clockwise rotation -> Brightness Brightness up. Control - Counter clockwise roatation -> brightness down - 6 ~ 100% of control range. -
Page 34: Remote Control (Optional)
10.2 Remote Control (Optional) The LED DENTAL LIGHT can be controlled using the Remote Control Ÿ The control panel of the Remote Control · Brightness control in 6levels · Other Functions will work same as control panel WARNING Don’t make the children handle this remote controller. Use a correct coin battery rated as DC 3V, CR2025. -
Page 35: Resin Cover (Optional)
10.3 RESIN COVER (Optional) WARNING Check the detachable way before using the product. Check for cracks. Make sure the correct position on the RESIN COVER. Easy removable magnetic structure Ÿ To block the light of the wavelength of 380 - 500nm also slow the cure rate of the resin 10.4 HANDLE WARNING Check the attachment and detachment before using the product... -
Page 36: Sensor
10.5 SENSOR Motion Sensor On/off: sensing distance 2cm Professional LED Light System for All of Surgery Application... -
Page 37: Positioning
10.6 Positioning Positioning the C500 LIGHTHEAD Ÿ Use the HANDLE to position the C500 LIGHTHEAD before the operation. Ÿ Recommended distance : 70cm Ÿ This HANDLE can be removed for sterilization. Professional LED Light System for All of Surgery Application... -
Page 38: Setting
11. Setting 11.1 Adjusting the balancing of the ARM WARNING The TENSION ARM contains a powerful spring. When the LIGHTHEAD is dismantled, the SPRING ARM can suddenly jump up and may cause serious injury Make sure the apparent weight of the LIGHTHEAD is the same when raised and lowered and that it is stable in any position. -
Page 39: Operoperating Range Of Head Arm
11.2 OperOperating range of HEAD ARM WARNING If this device is operated beyond the indicated angles, it can be damaged. During positioning, eventual collisions between the LIGHTHEAD, SPRING ARMs and other devices must be avoided. WARNING This image was constructed to demonstrate the product’s operating range. The image may differ from the actual product.manual. -
Page 40: Operating Range Of Main Arm
11.3 Operating range of MAIN ARM CHAIR TYPE WARNING Do not place things on or hang on MAIN ARM. WARNING If this device is operated beyond the indicated angles, it can be damaged. Professional LED Light System for All of Surgery Application... - Page 41 MOBILE TYPE WARNING Do not place things on or hang on MAIN ARM. WARNING If this device is operated beyond the indicated angles, it can be damaged. Professional LED Light System for All of Surgery Application...
- Page 42 WALL TYPE WARNING Do not place things on or hang on MAIN ARM. WARNING If this device is operated beyond the indicated angles, it can be damaged. Professional LED Light System for All of Surgery Application...
- Page 43 CEILING TYPE WARNING Do not place things on or hang on MAIN ARM. WARNING If this device is operated beyond the indicated angles, it can be damaged. Professional LED Light System for All of Surgery Application...
-
Page 44: Adjust Tension
11.4 Adjust tension Problem Corrective action Removal Arm Cover(common way) · Remove the cover using ‘-’ driver (3mm below) - Avoid peeling of the paint on the arm - Arm cover hook broken Common Tension control method · Lower FIRST MAIN ARM as much as possible ·... - Page 45 Head (1 axle) tension control · Remove left and right handles · Adjust proper tension with long nose plier - Do not force excessively Be careful not to change the direction of the handle Head (2 axle) · Check the joint part of first head am and second head arm. tension control ·...
-
Page 46: Model Designation
12. Model designation a: No. e: Mount Type h: Resin j: SWITCHING POWER b: Type H=Head, C=Chair 0=No Resin 1=Resin ADAPTOR c: Sensor W=Wall, E=Ceiling i: R/C(Remote Control) 0=No SPA, 1=SPA 0=No Sensor 1=Sensor M=Mobile A=No R/C p: Coded Model Name d: Head f: Camera B=R/C... - Page 47 C50-W0M1A1 C50-W0M1B1 C50-W1M0A1 C50-W1M0B1 C50-W1M1A1 C50-W1M1B1 C50-W2M0A1 C50-W2M0B1 C50-W2M1A1 C50-W2M1B1 C50-E0M0A1 C50-E0M0B1 C50-E0M1A1 C50-E0M1B1 C50-E1M0A1 C50-E1M0B1 C50-E1M1A1 C50-E1M1B1 C50-E2M0A1 C50-E2M0B1 C50-E2M1A1 C50-E2M1B1 C50-M0M0A1 C50-M0M0B1 C50-M0M1A1 C50-M0M1B1 C50-M1M0A1 C50-M1M0B1 C50-M1M1A1 C50-M1M1B1 C50-M2M0A1 C50-M2M0B1 C50-M2M1A1 C50-M2M1B1 Professional LED Light System for All of Surgery Application...
-
Page 48: List Of Component
13. List of component FIRST MAIN ARM SECOND MAIN ARM MOBILE VERTICAL ARM MOBILE BASE CASTER WALL BRAKET CEILING COVER CEILING VERTICAL ARM HANDLE ADAPTER Professional LED Light System for All of Surgery Application... - Page 49 REMOTE CONTROL C500 LIGHT HEAD C500 LIGHT HEAD C500 LIGHT HEAD with RESIN COVER With RESIN COVER and INTERNAL CAMERA Professional LED Light System for All of Surgery Application...
- Page 50 www.luvis.co.kr Professional LED Light System for All of Surgery Application...
