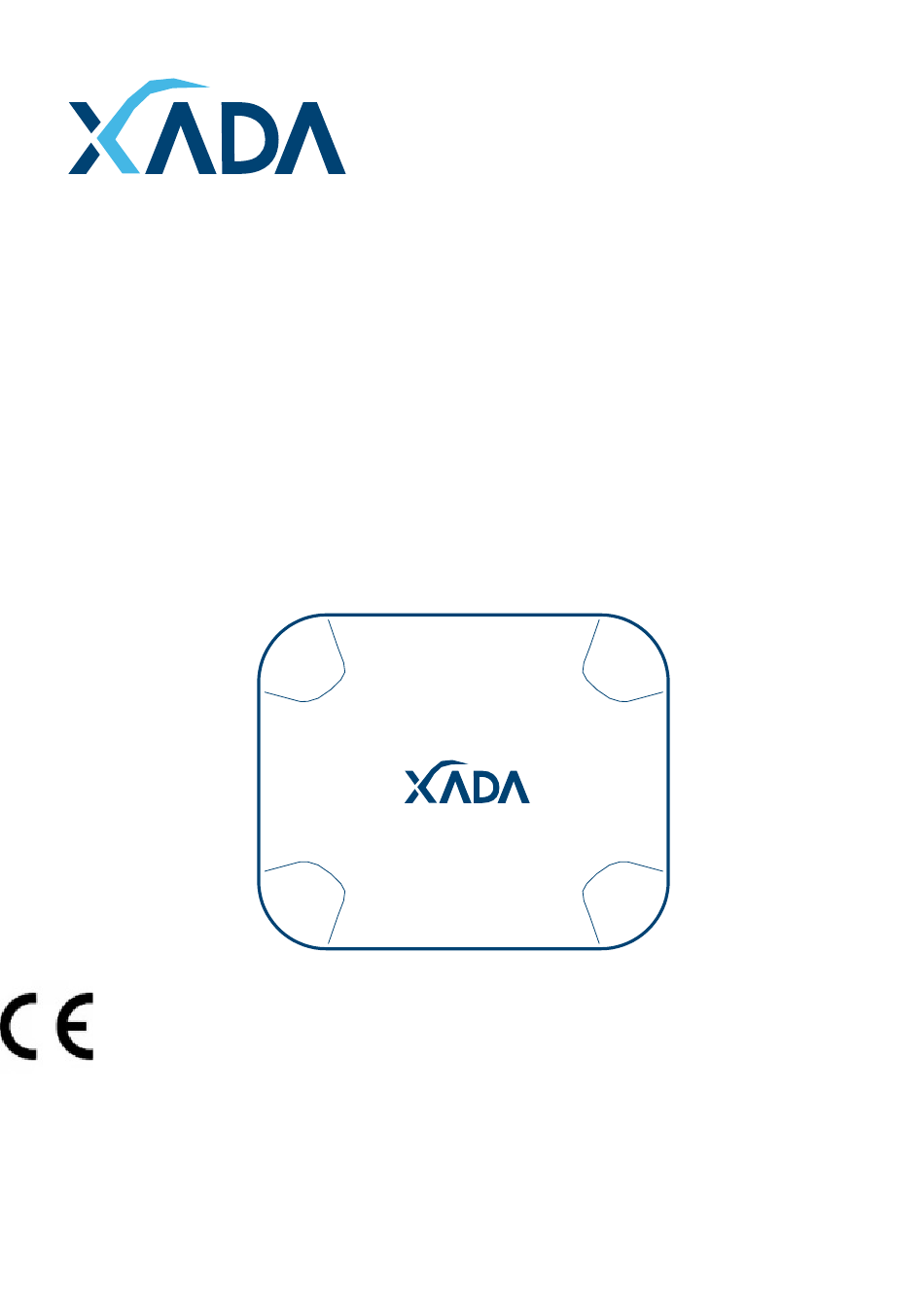

- Page 1 XA2200 QUICKSTART GUIDE FCC ID:2AUII-XA2200 IC: 25460-XA2200...
- Page 2 LAN cable though the right connector directly to your computer, then go to the http://192.168.100.1 page. Step 2- Login Locate the label on the bottom of your Xada device, type the KEY to log in to the product management interface.
- Page 3 For future network management enter your secure password on every Xada unit. Step 4 – Enter Setup Wizard For your first Xada unit, select Create New Network, and go to Step 5. For additional Xada unit(s) select Join an Existing Network and skip to Step 6.
- Page 4 Type your desired wireless network name (SSID), password and confirm your country. ( FOR ADDITIONAL XADA UNIT ) Step 6 – Join an Existing Network For additional Xada unit(s) please enter the identical network and pass- word as your first Xada unit.
- Page 5 ( FOR YOUR FIRST XADA UNIT ) Step 7 – Network Connection Guide Yours main Xada unit must connect the left connector to your internet gateway, and the right connector to your corporate LAN network. ( FOR ADDITIONAL XADA UNIT ) Step 8 –...
-
Page 6: Product Overview
Product Overview Front view: Top view: 1 2 3 Description Description Power Input connector Reset button LAN RJ45 connector LED Light indicator LAN RJ45 connector... -
Page 7: Regulatory Statements
No Un auth orized Modifications: D o not make any ch an ges or modifications to this product withou t the prior ex press written approval of Xada Technologies Ltd. An y ch an ges or modifications ma de withou t express written approval cou ld v oid the user’s authority to operate this product. - Page 8 No warran ty of accu racy is given con cern in g the con tents of the in formation contained in this publication. T o the ex ten t permitted by law n o liability (including liability to an y person by reason of negligence) will be accepted by Xada Technologies Ltd., its subsidiaries or employees for any direct or in direct loss or damage caused by omissions from or...
-
Page 9: Mechanical Specifications
Mechanical Specifications Dimension (L)135mm x (W)165mm x (H)46.5mm Color White ID drawing Wireless AP System Specifications PCBA Form Factor Wireless AP Main Board 100mm x 125mm x 1.6mm Chipset Main board: Qualcomm IPQ4019 +QCA8072 Wi-Fi Standard IEEE802.11a/b/g/n/ac Wi-Fi Bands 2.4GHz, 5 GHz MU-MIMO Qualcomm IoT Connectivity Wi-Fi Features... - Page 10 RBG LED x3 (Wi-Fi, States, WAN) m-PCIe x1 (PCIe, USB2.0) Internal I/O ⎓ UART0 Debug console Power input Input supply for host I/O: Type-C 9V Operating Temperature 0~50℃ Environment Support Storage Temperature 0~50℃ Humidity 10%~90% Mini-PCIe Module Module Wi-Fi Module Chipset Qualcomm QCA9888...
- Page 11 © 2019 Xada Technologies Ltd. 1F., No. 2, Ln. 150, Sec. 5, Xinyi Rd., Xiny District, 110 Taipei City, Taiwan Phone: +886-2-23451878 Web: https://xada.tech/...
