Summary of Contents for boho office HomeDesk

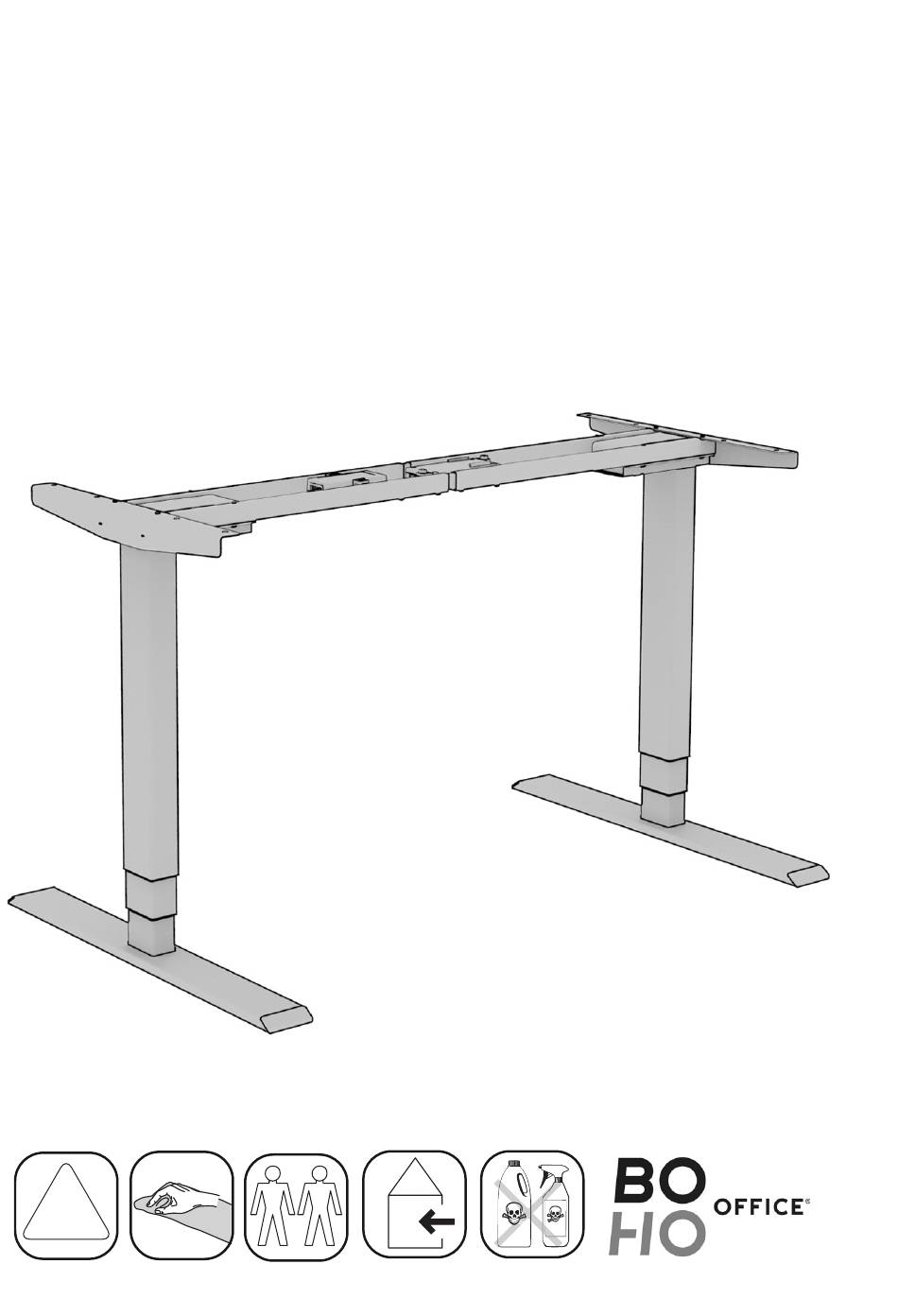

- Page 1 HomeDesk ASSEMBLY AND OPERATING INSTRUCTIONS ELECTRICALLY HEIGHT-ADJUSTABLE DESK FRAME Version 20201020-boho-HD-en • Subject to technical changes...
-
Page 3: Table Of Contents
SAFETY Electrical hazards Use of the desk Load Particular hazard areas Emergency instructions Service and maintenance Cleaning Noise level of the desk Residual risks Read and keep operating and assembly instructions DELIVERY CONTENTS Parts Fittings bag ASSEMBLY 8-11 Step 1 - Assembling the lifting columns Step 2 - Assembling the frame Step 3 - Installing the foot stabilizer Step 4 - Electronics and desktop installation... -
Page 4: Safety
SAFETY INFORMATION Electrical Hazards Do not connect the table frame to the power supply until it is com- pletely assembled. Check the electrical equipment of the desk frame regularly in accordance with national regulations (in Germany these are the accident prevention regulations) Do not use cables with damaged insulation. -
Page 5: Particular Hazard Areas
SAFETY INFORMATION Special danger areas When adjusting the table frame, make sure that no persons are near the table frame. There is a risk of injury. When setting up the table frame, make sure that it is completely free of collisions (e.g. sloping roof, structural conditions, pedestals, waste paper baskets, etc.) in all pos- sible adjustment positions. -
Page 6: Residual Risks
SAFETY INFORMATION Residual risks The desk frame is built according to up-to-date and recognised safety regulations. Nevertheless, dangers to the life and limb of the user or third parties or damage to the table frame or other material assets can occur during use. -
Page 7: Delivery Contents
CONTENTS 2 2 2 2 Fittings bag B C D E F G H I... -
Page 8: Assembly
STEP 1 - ASSEMBLY OF THE LIFTING COLUMNS Please perform the step for BOTH lifting columns Please use the following screws: B (4x M6x35) -
Page 9: Step 2 - Assembling The Frame
STEP 2 - FRAME ASSEMBLY Insert the centre rail (3) into the frame on both sides and adjust the position accordingly. Note: The word „MAX“ on the centre rail cannot be completely exposed. Please use the following screws: A (8x M6x30) -
Page 10: Step 3 - Installing The Foot Stabilizer
STEP 3 - ASSEMBLY OF THE FRAME FEET Please use the following screws: C (4x M10x30) -
Page 11: Step 4 - Electronics And Desktop Installation
STEP 4 - ELEKTRONICS + DESKTOP Place the control unit and adapter in the centre of the table frame. Fix the adapter with the supplied bracket (G). Connect the lifting column cables and the adapter to the control unit. lifting columns <-> Control unit connection M1 / M2 Control unit <->... -
Page 12: Initial Start-Up
INITIAL START-UP ! ! ! ! ! ! ! ! ! ! The height-adjustable desk must be initialised before first use. 1. Press/hold the DOWN key until the desk has reached its lowest position. 2. Release the DOWN button. 3. Press/hold the DOWN key again until the LED display shows „RST“. 4. -
Page 13: Ergonomic Information
ERGONOMIC INFORMATION The correct sitting posture Sitting incorrectly can cause damage to joints, tendons and muscles. To avoid this, the desk and office chair must be adjusted accordingly. Irrespective of the following instructions, an uncomfortable sitting posture must be avoided. If you find that one or the other of the follo- wing tips leads to an uncomfortable sitting position, simply adjust the positioning to suit your needs. -
Page 14: Operating Instructions
OPERATING NOTES Observe the regulations and safety instructions starting on page 4. In particular: Do not leave children unattended with the desk. Children cannot assess the dangers that can be caused by this desk. Children can be seriously injured or even killed. Do not exceed the maximum switch-on time of 2 minu- tes for the desk. -
Page 15: Customer Service
GmbH Industriestraße 45 33397 - Rietberg GERMANY +49 5244 9789030 boho office® is a registered trade mark of the boho möbelwerkstatt GmbH Disposal Taking the table out of service Pull the plug from the mains. Dismantle the table To dismantle the frame, follow the instructions in the reverse order.
