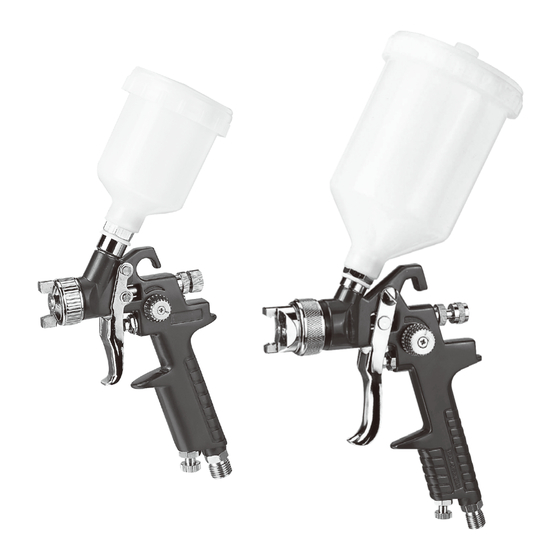

2 PIECE HVLP GRAVITY FEED

SPRAY GUN KIT

Item

Air Pressure Range

Maximum Air Pressure

Air Consumption

Cup Capacity

Air Inlet

Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.

Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property

damage and/or personal injury. Please keep instructions for future reference.

For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.

For Customer Service, Call 1-800-348-5004

or e-mail customerservice@focus-ontools.com

Detail Gun

Large Gun

30 – 40 PSI

40 PSI

9 CFM @ 40 PSI

12 CFM @ 40 PSI

4.2 fl. oz.

20 fl. oz.

1/4"–18 NPS

*Actual product may vary slightly

40828

11/2017

Table of Contents

Need help?

Do you have a question about the 40828 and is the answer not in the manual?

Page 1 Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property damage and/or personal injury. Please keep instructions for future reference. For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping. For Customer Service, Call 1-800-348-5004 40828 11/2017 or e-mail customerservice@focus-ontools.com...
Page 2 Large Gun PART LIST DESCRIPTION AIR NOZZLE W/BRASS CAP FLUID NOZZLE AIR DIVERSION RING PISTON PAD SCREW SEAL FOR AIR PISTON COMPRESSION SPRING FOR NEEDLE SEAL WASHER GUN BODY FLUID CONTROL KNOB SPRING FOR AIR PISTON SCREW NUT FLUID CONTROL KNOB STUFFING BOX FOR AIR PISTON GASKET AIR PISTON ASSEMBLY...
Page 3 Detail Gun PART LIST 1. Putting into operation Before putting into operation, and especially after any repair work, check to see that all nuts and bolts are tight. Always disconnect the unit from the air supply before carrying out any repair work. a) Mount the nozzle set tightly Align the air nozzle so that the number stamped into ii can be read from the front the right way round.
Page 4 Possible failures in operation Trouble Cause Repair 1.Foreign substances between fluid tip and 1.Clean fluid needle and fluid nozzle in thin- 1.Gun leaks from fluid tip needle prevent sealing ner or use new set nozzle 2. Paint merges from fluid needle - needle 2.
