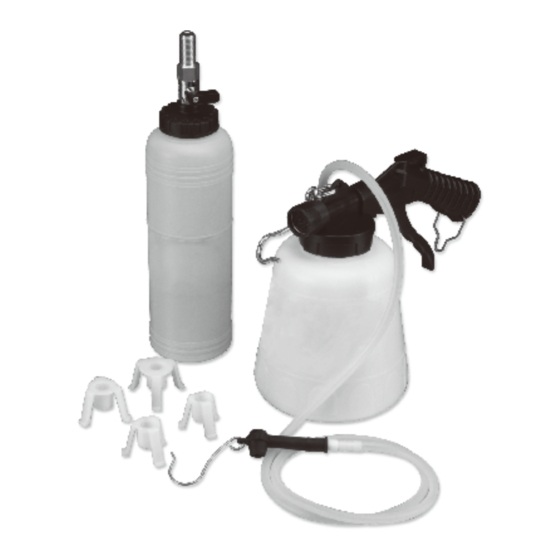

34 OZ BRAKE FLUID BLEEDER
*Actual product may vary slightly
Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.
Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property
damage and/or personal injury. Please keep instructions for future reference.
For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.
For Customer Service, Call 1-800-348-5004
39210
01/2017
or e-mail customerservice@focus-ontools.com
Advertisement
Table of Contents
Related Manuals for Steel Core 34 OZ
Summary of Contents for Steel Core 34 OZ
- Page 1 34 OZ BRAKE FLUID BLEEDER *Actual product may vary slightly Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product. Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property damage and/or personal injury.
- Page 2 Fill Bottle Capacity 24 oz. 25/32″ – 1-7/32″ (21–30mm) Old Fluid Bottle Capacity 34 oz. IMPORTANT SAFETY INFORMATION WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow instructions listed below may result in serious injury. SAVE THESE INSTRUCTIONS 1. Keep bystanders, children, and visitors away while operating the Vacuum Pump.
- Page 3 11. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. 12. When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance and Servicing section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of injury.
- Page 4 OPERATING INSTRUCTIONS Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. Fill 1. Turn the vehicle’s engine off and Nozzle (2) chock the vehicle’s wheels to Lever (closed) prevent the vehicle from moving.
- Page 5 8. Determine the proper brake bleeding Bleeder Screw sequence from the vehicle service manual. (i.e., right rear caliper, Bleeding Hose (7) left rear caliper, right front caliper, Gun (6) Brake left front caliper) Caliper 9. Clean the vehicle brake caliper with brake parts cleaner (not included).
- Page 6 MAINTENANCE AND SERVICING Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn off the tool, detach the air supply, and release the trigger before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment.
- Page 7 PARTS LIST AND ASSEMBLY DIAGRAM Part Description Part Description Fill Bottle Fill Nozzle Adapter Set 1 Set of 4 Bleeding Hose Old Fluid Bottle customerservice@focus-ontools.com 1-800-348-5004...
- Page 8 Limited Manufacturer Warranty FOT makes every effort to ensure that this product meets high quality and durability standards. FOT warrants to the original retail consumer a 1-year limited warranty from the date the product was purchased at retail and each product is free from defects in materials.
