- Page 1 Modul B & OPTIMA Modul B & OPTIMA Installation and operating instructions Installation and operating instructions...
- Page 2 MUB 006 003 M01 (REV-A) 07-2020 Modul B & OPTIMA...
-
Page 3: Table Of Contents
Table of contents 1 Explanation of symbols..........4 2 Preface................5 3 Safety instructions............3.1 Safety instructions for operation......6 3.2 Safety instructions for maintenance......7 3.3 Safety instructions for installation......7 4 Intended use..............8 5 Operation..............9 5.1 Operating equipment..........5.2 Uncoupling the semi-trailer........ -
Page 4: Explanation Of Symbols
Explanation of symbols WARNING! Means that death, serious physical injury or significant material damage can occur if the relevant safety instruc- tions are not followed. ATTENTION! Means that slight physical injury or material damage can occur if the relevant safety instructions are not fol- lowed. -
Page 5: Preface
ADVICE! Technical modifications reserved. You will find the latest information at: www.jost-world.com Modul B & OPTIMA MUB 006 003 M01 (REV-A) 07-2020... -
Page 6: Safety Instructions
Safety instructions The following safety instructions apply to operation, servicing Always fully retract the landing gear when the vehicle is in and installation. The safety instructions of the towing vehicle and motion. trailer vehicle also continue to apply. When supporting the vehicle, make sure the ground is suffi- ciently firm and/or position a suitable base underneath (min. -
Page 7: Safety Instructions For Maintenance
Safety instructions Safety instructions for maintenance Only use the specified lubricants for maintenance work. Maintenance work must be carried out by skilled personnel. Safety instructions for installation Landing gears must be mounted on the trailer vehicle in line with the installation guidelines. If the landing gear is not installed correctly, all warranty claims against the manufacturer and the supplier of the land- ing gear will be rendered void. -
Page 8: Intended Use

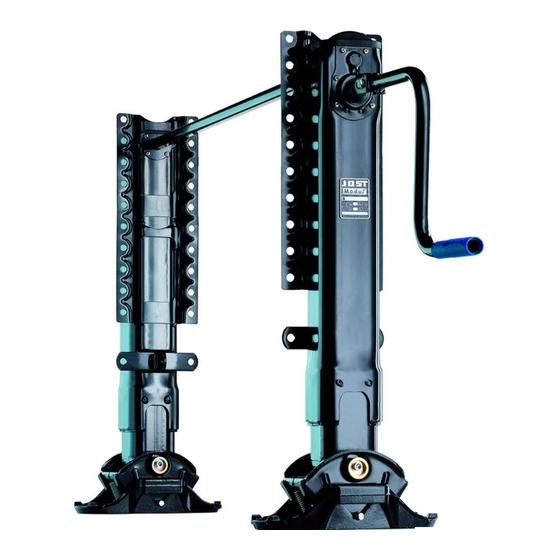

Intended use Furthermore, parked up trailer vehicles may be laden, providing the appropriate safety regulations are complied with. Any other usage requires the written approval of JOST-Werke. JSK-ST/19 1 Landing gear 3 Crank holder 5 Struts 2 Crank 4 Type plate... -
Page 9: Operation
Operation Operating equipment Gear change High gear (2): Remove the crank from the parking hook and pull it out fully until the gear engages. A slight turning motion facilitates the gear change. The gear locking mechanism must engage. Low gear (3): Remove the crank from the parking hook and push it in fully until the gear engages. -
Page 10: Uncoupling The Semi-Trailer
Operation Uncoupling the semi-trailer Check the landing gear for damage and have any damage repaired before use. Park the trailer on firm, flat and level ground (see “Trailer vehicle” owner’s manual). Put a suitable base (1) underneath the landing gear if necessary. Engage high or low gear and wind down the landing gear. -
Page 11: Loading The Supported Trailer Vehicle
Operation Loading the supported trailer vehicle ATTENTION! Providing the appropriate safety regulations are com- plied with, the supported trailer vehicle may be loaded • using a crane • using a forklift. Do not exceed the centre of gravity, otherwise the trailer vehicle will tip over. -
Page 12: Maintenance
Whenever the land- Seal the lubricating hole once more with the plug (1). If using landing gear imme- cracks and defor- ing gear is used a grease nipple, only use the genuine JOST part JS E0084000. diately mation ATTENTION! Lubricants Using a different grease nipple may damage the landing gear. -
Page 13: Disposal Instructions For Lubricants
Maintenance Disposal instructions for lubricants The manufacturer of the lubricant will supply the disposal instruc- tions for the lubricants used. The following applies to grease delivered ex works: Dispose of as special waste, disposal key no. 120 112 EAK PCB content: free from PCB Halogen content: free from halogen Disposal instructions for landing gear The installed parts are valuable raw materials that can be recycled. -
Page 14: Troubleshooting
Troubleshooting Fault Cause Remedy Landing gear cannot be lowered, or only Connection shaft too long Shorten the connection shaft with difficulty Landing gear or inside tube bent Repair landing gear Spindle or gear defective Landing gear can only be lowered until it Incorrect gear engaged Engage low gear before contact with the touches the ground... -
Page 15: Technical Data
Technical data Modul B E+25 JSK-ST/24 Mh = Installation height H = Lift = Length of connection shaft Modul B & OPTIMA MUB 006 003 M01 (REV-A) 07-2020... - Page 16 Technical data Load data per set Order number 24 t Modul B 01 01 900 mm 560 mm 630 mm Lifting load 50 t Stat. test load Modul B 02 01 850 mm 520 mm 580 mm 35 t with castor Modul B 03 01 800 mm 470 mm...
- Page 17 Technical data OPTIMA E+25 JSK-OP/02 Mh = Installation height H = Lift = Length of connection shaft Modul B & OPTIMA MUB 006 003 M01 (REV-A) 07-2020...
- Page 18 Technical data Load data per set Order number Lifting load 24 t OPT700S-1 700 mm 350 mm 430 mm Stat. test load 50 t OPT750S-1 750 mm 400 mm 480 mm Lift per turn of crank handle: OPT800S-1 800 mm 450 mm 530 mm Low gear...
-
Page 19: Installation
Installation Retract supports (1) fully. Check the length of the connection shaft (2) and adapt if nec- 190 Nm 190 Nm essary. Position the supports at right angles to the chassis of the trailer vehicle. Align supports parallel with each other. min 45˚... - Page 20 Member of JOST World JOST, Germany, Tel. +49 6102 295-0, tkd-technik@jost-world.com, www.jost-world.com MUB 006 003 M01 (REV-A) 07-2020 • 1.3 1006212...
