Hardware included;
32 x 55mm Hex Head Bolts
6 x 70mm Hex Head Bolts
36 x 80mm Hex Head Bolts
Components included;
Roof x 2
Floor x 2

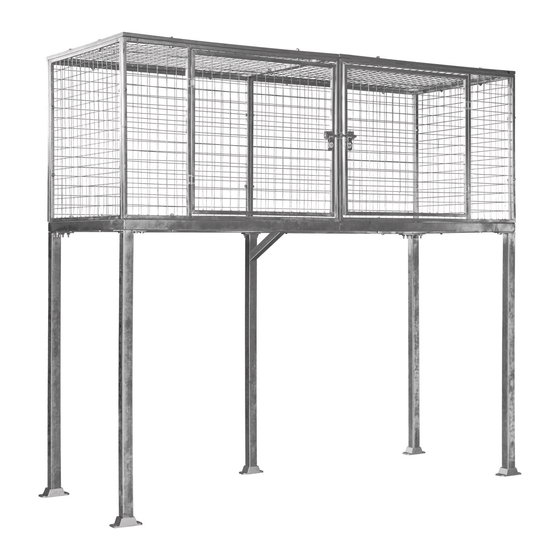

RMWSL0227 Above Bonnet Storage
Additional Tools Required;
74 x Nut
5 x Flanges
Front Panel w/ door x 2
Back Panel x 2
Assembly Instructions
Side Panel x 2
Cantilever Support x 1
Joining Bracket x 1
Corner Legs x 4
Centre Leg x 1
Advertisement
Table of Contents
Related Manuals for RapidMesh RMWSL0227
Summary of Contents for RapidMesh RMWSL0227
- Page 1 RMWSL0227 Above Bonnet Storage Assembly Instructions Hardware included; Additional Tools Required; 74 x Nut 32 x 55mm Hex Head Bolts 6 x 70mm Hex Head Bolts 5 x Flanges 36 x 80mm Hex Head Bolts Components included; Front Panel w/ door x 2...
- Page 2 RMWSL0227 Above Bonnet Storage Assembly • Entire set up is to be done on level ground. • Requires 2-person assembly. • Finger tighten all nuts, until step 9. Step 1. Unpack the unit and confirm you have all the parts listed.
