Hardware included;
10 x 50mm Hex Head Screws
23 x 60mm Hex Head Screws
2 x 70mm Hex Head Screws
17 x 80mm Hex Head Screws
Components included;
Roof x 2
Floor x 2
1300 911 914

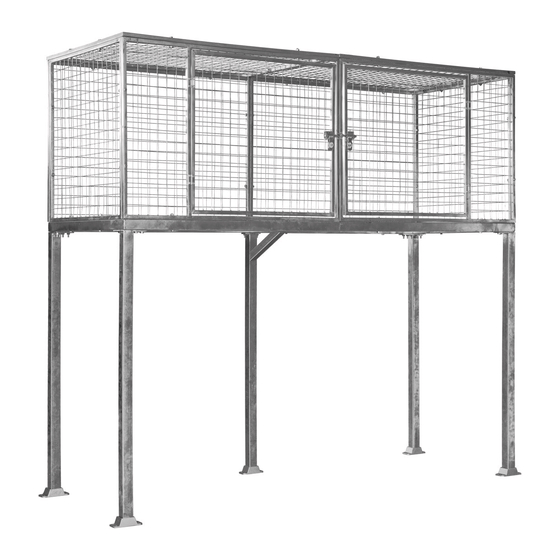

RMWSL0227 Above Bonnet Storage
47 x Nut
5 x Flanges
Front Panel x 2
Back Panel x 2
|
sales@rapidmesh.com.au
Assembly Instructions
Additional Tools Required;
Door x 2
Side Panel x 2
|
www.rapidmesh.com.au
Corner Legs x 4
Centre Leg x 1
Cantilever Support x 1
Joining Bracket x 1
Advertisement
Related Manuals for RapidMesh RMWSL0227
Summary of Contents for RapidMesh RMWSL0227
- Page 1 RMWSL0227 Above Bonnet Storage Assembly Instructions Hardware included; 10 x 50mm Hex Head Screws Additional Tools Required; 47 x Nut 23 x 60mm Hex Head Screws 2 x 70mm Hex Head Screws 5 x Flanges 17 x 80mm Hex Head Screws Corner Legs x 4 Components included;...
- Page 2 Assembly RMWSL0227 Above Bonnet Storage Entire set up is to be done on level ground. Requires 2-person assembly. Step 1. Unpack the unit and confirm you have all the parts listed. Step 2. Loosely fix all Floor, Side, Back, Door and Roof Panels using the screws and nuts provided.
