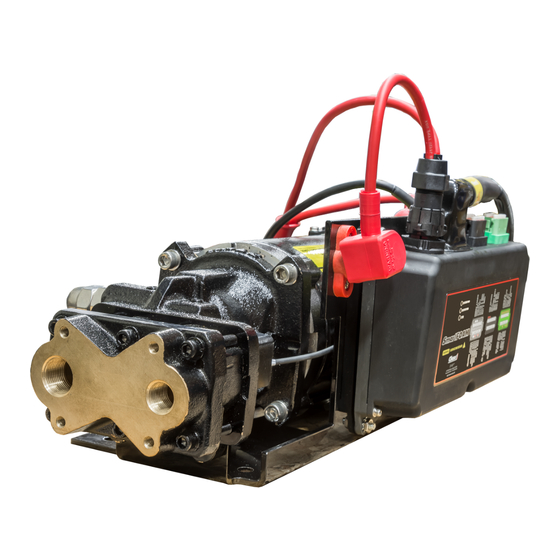

HALE SmartFOAM 1.7AHP Foam Calibration Quickstart
Electronic foam proportioning systems
Hide thumbs
Also See for SmartFOAM 1.7AHP:
Advertisement
Quick Links
SmartFOAM
Electronic Foam Proportioning Systems
Models:
Class A only – 1.7AHP, 2.1A
Class A/B – 3.3, 5.0, 6.5
FOAM CALIBRATION
QUICKSTART
FSG-MNL-00175
HALE PRODUCTS, INC / CLASS 1
607 NW 27th Avenue ● Ocala, FL 34475
U.S.A. Telephone: 352-629-5020
FAX: 800-533-3569
GODIVA LTD.
Charles Street ● Warwick, England CV34 5LR
Phone: 44-1-926-623600
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HALE SmartFOAM 1.7AHP
Summary of Contents for HALE SmartFOAM 1.7AHP
- Page 1 Class A only – 1.7AHP, 2.1A Class A/B – 3.3, 5.0, 6.5 FOAM CALIBRATION QUICKSTART FSG-MNL-00175 HALE PRODUCTS, INC / CLASS 1 607 NW 27th Avenue ● Ocala, FL 34475 U.S.A. Telephone: 352-629-5020 FAX: 800-533-3569 GODIVA LTD. Charles Street ● Warwick, England CV34 5LR...
-
Page 2: Apparatus Information
Hale Products does not assume responsibility for product failure resulting from improper maintenance or operation. Hale Products is responsible only to the limits stated in the product warranty. Product specifications contained in this manual are subject to change without notice. - Page 3 SmartFOAM Page 2 NOTES...
- Page 4 Make sure proper personal protective equipment is used when operating or servicing apparatus. ❑ A foam tank low level sensor must be utilized to protect the Hale Foam proportioner from dry running. Failure to use a low level sensor with the Hale Foam system voids warranty.
- Page 5 Always disconnect the power cable, ground straps, electrical wires and control cables from the control unit or other Hale Foam system equipment before electric arc welding at any point on the apparatus Failure to do so could result in a power surge through the unit that could cause irreparable damage.
- Page 6 Make sure all connections are sound, and that each connection is correct. ❑ The cables shipped with each Hale Foam system are 100% tested at the factory with that unit. Improper handling and forcing connections can damage these cables which could result in other system damage.
- Page 7 SmartFOAM Page 6 The preset and operation screens: The SmartFOAM controller will show the PRESET screen after a power cycle. This allows the user to select a preset with which to start operation. Pressing a preset button will automatically change the view to the OPERATION screen. The OPERATION screen shows the operational information for the foam system including the buttons and indicators used to control the system.
- Page 8 SmartFOAM Page 7 To place the system in simulated flow mode: 1. Press the MENU button. 2. In the menu select the “simulated water flow” button. 3. In the simulated water flow screen press the ON/OFF button to toggle simulated water flow. The icon indicates the current state.
- Page 9 1. Place a graduated measure container at the outlet of the bypass hose capable of containing the expected volume of foam concentrate. 2. Start the Hale SmartFOAM foam pump by pressing the Start/Stop button. 3. Watch the level of foam in the graduated measure container and stop the foam pump when at the desired level by pressing the Start/Stop button again.
-
Page 10: Express Warranty
Any notice to HALE must be in writing, identifying the Product (or component) claimed defective and circumstances surrounding its failure. • HALE reserves the right to physically inspect the Product and require Buyer to return same to HALE’s plant or other authorized service provider. •...
