This manual contains specific precautions related to worker safety. The hazard alert image denotes
safety related instructions and warnings in this manual. DO NOT operate or perform maintenance on this
collector until you have read and understood the instruction and warnings contained within this manual.
English
Master Language

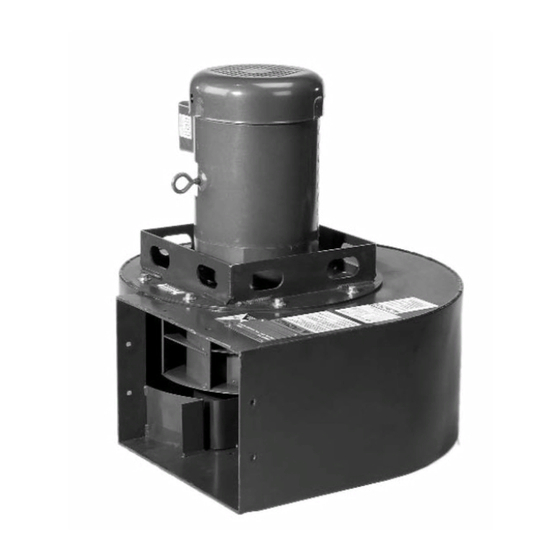

Torit Backward Inclined Fan
TBI-3 to 30 (60 and 50 Cycle)
Installation and Operation Manual
Installation, Operation, and Service Information
IOM AD3934101 (ENG)
Revision 2
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Donaldson Torit TBI 3
Summary of Contents for Donaldson Torit TBI 3
- Page 1 Torit Backward Inclined Fan TBI-3 to 30 (60 and 50 Cycle) Installation and Operation Manual Installation, Operation, and Service Information This manual contains specific precautions related to worker safety. The hazard alert image denotes safety related instructions and warnings in this manual. DO NOT operate or perform maintenance on this collector until you have read and understood the instruction and warnings contained within this manual.
- Page 2 DO NOT operate this collector until you have read and understood the instructions and warnings located in the installation and operation manual. For additional copies of this manual, contact Donaldson Torit The Safety Alert Symbol indicates a hazardous situation which, if not avoided could result in death or serious injury.
-
Page 3: Table Of Contents
Torit Backward Inclined Fan, TBI-3 through 30 Contents IMPORTANT NOTES ..............i Duct Connections and Support ..........9 Safety Communication ............1 Damper and Silencer Support Bracket ......10 Description ................2 Maintenance Information .............11 Inspection on Arrival ...............2 Motor Maintenance ............12 Installation Codes and Procedures ........3 Grease Motors ..............12 Hoisting Information ............3 Wheel Balance ..............12... -
Page 4: Safety Communication
Donaldson Company, Inc. Safety Communication Rotating blades can cause serious injury. Operate fan only when all guards are correctly and securely in place. Turn power off and lock out all power before performing service or maintenance work. It is not unusual for the fan to be operated from a remote location, so fans may start unexpectedly. -
Page 5: Description
7. Remove crates and shipping straps. Remove loose fan and motor assemblies to ensure vibration-free components and accessory packages before lifting operation. When mounted to a Donaldson Torit Dust parts from truck. collector, the fan is designed to pull air through the collector to be filtered. -
Page 6: Installation Codes And Procedures
Donaldson Company, Inc. Installation Codes and Procedures Codes may regulate recirculating Hoisting Information filtered air in your facility. Failure to lift the fan correctly can Consult with the appropriate authorities result in severe personal injury having jurisdiction to ensure compliance and/or property damage. -
Page 7: Electrical Wiring
Torit Backward Inclined Fan, TBI-3 through 30 Electrical Wiring Electrical installation, service, or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes. Turn power off and lock out all power before performing service or maintenance work. -
Page 8: Fan Installation
Torque Values for TBI Setscrew Size Carbon Steel Setscrew Diameter Torque* TBI 3-10 TBI 15-30 Lb. - Ft. Lb. - Ft. 5/16 7/16 *Stainless steel setscrews are not hardened and should not... - Page 9 Torit Backward Inclined Fan, TBI-3 through 30 motor motor mounting plate lifting points lifting points fan wheel inlet cone fan housing sealant spool (not supplied on all fan assemblies) sealant dust collector clean air outlet (reference) Fan Installation...
-
Page 10: Fan With Inlet Spool Piece Mounted To Clean Air Outlet With Weld Nuts
Donaldson Company, Inc. Fan With Inlet Spool Piece Mounted to Fan With Inlet Spool Piece Mounted to Clean Air Outlet With Weld Nuts Clean Air Outlet Without Weld Nuts The following instructions are for a fan with an integrated The following instructions are for a fan with an integrated inlet spool piece being mounted on collectors that have inlet spool piece being mounted on collectors that do weld-nuts on the clean air outlet. -
Page 11: Motor Drain Hole Orientation (Side Mount Fans)
The following instructions are for a TBI fan being 5. Apply sealer on the inlet spool piece and re-attach mounted to a Donaldson Torit dust collector that has a the TBI fan to the inlet spool piece. Be sure to side mount adapter. -
Page 12: Fan Without Spool Piece
Fan Without Spool Piece The following instructions are for a TBI fan without a 7. Inspect the installation prior to starting the fan. spool piece being mounted to a Donaldson Torit dust Check for any loose items or debris that could be collector. -
Page 13: Damper And Silencer Support Bracket
Torit Backward Inclined Fan, TBI-3 through 30 Side Mount Support Brackets Damper and Silencer Support Bracket Side and Top Mount Note: Side mount silencer support brackets require modification in the field. 1. Attach the damper to the fan exhaust outlet using the supplied hardware. -
Page 14: Maintenance Information
When installing a new wheel or cone, the manufacturer. proper wheel-to-drive side plate must be Donaldson Torit TBI fans are manufactured to high maintained as shown in Side Plate Clearance standards with quality materials and components. Proper Table. Inlet cone clearance should be uniform maintenance will ensure a long and trouble-free service around the circumference. -
Page 15: Motor Maintenance
Torit Backward Inclined Fan, TBI-3 through 30 4. Grease the motor bearings using a high grade Side Plate Clearance bearing grease. For standard service conditions “A” Dimension (inches) ExxonMobil Polyrex™ EM grease is recommended. Size 60 hz 50 Hz Under standard conditions, grease every 5,500 hours. 1-1/4 1-1/4 In severe dirt and abrasive dust conditions, grease... -
Page 16: Troubleshooting
Donaldson Company, Inc. Troubleshooting Problem Probable Cause Remedy Improper motor wire size Rewire using the correct wire gauge as specified by Fan blower and motor do national and local codes. not start Not wired correctly Check and correct motor wiring for supply voltage. See motor manufacturer's wiring diagram. - Page 17 Torit Backward Inclined Fan, TBI-3 through 30 Problem Probable Cause Remedy Externally transmitted vibration Isolate collector from external vibration. Excessive vibration Accumulation of foreign Clean the wheel. material on the wheel Excessive system pressure or Open dampers far enough for fan to operate in stable restriction of airflow due to flow regime.
-
Page 18: Product Information
Donaldson Company, Inc. Product Information (Process Owner to complete and retain for your records) Model Number _____________________________ Serial Number ______________________________ Ship Date _________________________________ Installation Date _____________________________ Filter Type ____________________________________________________________________________ Collected Dust ________________________________________________________________________ Dust Properties: Kst ______________Pmax _____________MIE ___________MEC ________________ Accessories __________________________________________________________________________ Other ________________________________________________________________________________ ____________________________________________________________________________________ Service Notes... -
Page 19: Donaldson Industrial Air Filtration Warranty
Torit Backward Inclined Fan, TBI-3 through 30 Donaldson Industrial Air Filtration Warranty Donaldson warrants to the original purchaser only that the Goods will be free from defects in material and manufacture for the applicable time periods stated below: (1) Major structural components for a period of ten (10) years from the date of shipment; (2) Non-Structural, Donaldson-built components and accessories including Donaldson Airlocks, TBI Fans, TRB Fans, Fume Collector products, Donaldson built electrical control components, and Donaldson-built Afterfilter housings for a period of twelve (12) months from date of shipment;... - Page 20 Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts. Call Donaldson Torit at 800-365-1331. Important Notice Many factors beyond the control of Donaldson can affect the use and performance of Donaldson products in a particular application, including the conditions under which the product is used. Since these factors are uniquely within the user’s knowledge and control, it is essential the user evaluate the products to determine whether the product is fit for the particular purpose and suitable for the user’s application.
