This manual contains specific precautions related to worker safety. The hazard alert image denotes safety
related instructions and warnings in this manual. DO NOT install, operate, or perform maintenance on this
collector until you have read and understood the instructions, precautions and warnings contained within this
manual.
English
Master Language

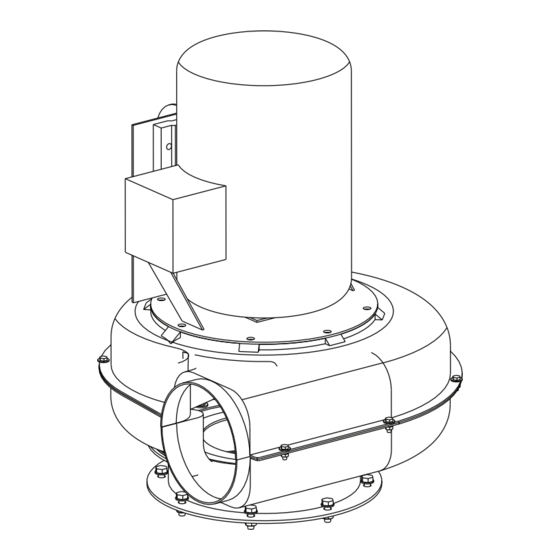

Torit Radial Blade Fan
TRB-1 to TRB-10 (60 and 50 Cycle)
Installation and Operation Manual
Installation, Operation and Service Manual
IOM AG8130401 (ENG)
Revision 3
Advertisement
Table of Contents
Related Manuals for Donaldson Torit TRB-1
Summary of Contents for Donaldson Torit TRB-1
- Page 1 Torit Radial Blade Fan TRB-1 to TRB-10 (60 and 50 Cycle) Installation and Operation Manual Installation, Operation and Service Manual This manual contains specific precautions related to worker safety. The hazard alert image denotes safety related instructions and warnings in this manual. DO NOT install, operate, or perform maintenance on this collector until you have read and understood the instructions, precautions and warnings contained within this manual.
- Page 2 For additional copies of this manual, contact Donaldson Torit. The Safety Alert Symbol indicates a hazardous situation which, if not avoided could result in death or serious injury. Obey all safety messages following this symbol to avoid possible injury or death.
-
Page 3: Table Of Contents
Torit Radial Blade Fan TRB-1 through TRB-10 Contents IMPORTANT NOTES ..................................i Safety Communication ................................1 Product Description ...................................3 Operation ....................................3 Product Service ..................................4 Motor Maintenance ................................5 Grease Motors ..................................5 Wheel Balance ...................................5 Vibration .....................................5 Troubleshooting ..................................6 Appendix A - Installation ..................................8 Installation ..................................9... -
Page 4: Safety Communication
Donaldson Company, Inc. Safety Communication Improper operation of dust collectors and/or dust control systems may contribute to conditions in a work area or facility which could result in severe personal injury, and product or property damage. All dust collection equipment should be used only for its intended purpose and should be properly selected and sized for its intended use. - Page 5 Torit Radial Blade Fan TRB-1 through TRB-10 Combustible Dust Hazards Among other considerations, the current NFPA standards require owners whose processes involve potentially combustible materials to have a current Dust Hazard Analysis, which can serve as the foundation for their process hazard mitigation strategy.
-
Page 6: Product Description
TRB Fans have computer balanced fan and motor assemblies to ensure vibration-free operation. When mounted to a Donaldson Torit Dust collector, the fan is designed to pull dusty air through the collector to be filtered. -
Page 7: Product Service
Turn all power off and lock out all power before performing service or maintenance work. It is not unusual for the equipment to be operated from a remote location, so equipment may start or stop unexpectedly. Donaldson Torit TRB fans are manufactured to high standards with quality materials and components. Proper maintenance will ensure a long and trouble-free service life. -
Page 8: Motor Maintenance
Donaldson Company, Inc. Motor Maintenance TRB Fans typically use motors with sealed bearings that are permanently lubricated for the life of the motor, but other types of motors may have been selected for your fan. Grease Motors Use the following steps for greaseable motors only: 1. -
Page 9: Troubleshooting
Torit Radial Blade Fan TRB-1 through TRB-10 Troubleshooting Problem Probable Cause Remedy Improper motor wire size Rewire using the correct wire gauge as specified by Fan blower and motor do national and local codes. not start Not wired correctly Check and correct motor wiring for supply voltage. See motor manufacturer's wiring diagram. - Page 10 Donaldson Company, Inc. Problem Probable Cause Remedy Externally transmitted vibration Isolate collector from external vibration. Excessive vibration Accumulation of foreign material on Clean the wheel. the wheel Excessive system pressure or Open dampers far enough for fan to operate in stable flow restriction of airflow due to closed regime.
-
Page 11: Appendix A - Installation
Torit Radial Blade Fan TRB-1 through TRB-10 Appendix A - Installation... -
Page 12: Installation
Compare the equipment received with the description of product ordered. Report any incomplete shipments to the delivery carrier and your Donaldson Torit representative. Turn the fan wheel by hand to see that it rotates freely and does not bind. If dampers are provided, check for free operation of all moving parts. -
Page 13: Lifting Information
Torit Radial Blade Fan TRB-1 through TRB-10 Lifting Information Failure to lift the equipment or sub-assemblies correctly can result in severe personal injury and/or property damage. Only qualified crane or forklift operators should be allowed to lift equipment. 1. Use all lifting points provided. -
Page 14: Fan Installation
Donaldson Company, Inc. Fan Installation Rotating blades can cause serious injury. Operate equipment only when all guards are correctly and securely in place. Electrical installation, service, or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes. - Page 15 Torit Radial Blade Fan TRB-1 through TRB-10 TRB fans are shipped assembled and partial disassembly is required before installing. 1. Disassemble the TRB by the blower housing fasteners and splitting the blower halves. The motor half contains the motor, half of the blower housing, and the blower wheel.
-
Page 16: Motor Drain Hole Orientation (For Side Mounted Fans)
Donaldson Company, Inc. Motor Drain Hole Orientation (for Side Mounted Fans) Motor drain holes must be oriented downward to prevent water accumulation in the motor and extend motor life. Specifically for side mounted fans (motor horizontal) confirm the motor drain hole will be oriented facing down in the fan installed orientation. -
Page 17: Side Mount Fan And Adaptor Installation (For Mb Collectors)
Torit Radial Blade Fan TRB-1 through TRB-10 Side Mount Fan and Adaptor Installation (for MB collectors) The side mount fan adaptor allows a TRB/TBI fan blower to be mounted directly to the Modular Baghouse outlet on the rear of the collector housing. -
Page 18: Duct Connections And Support
Donaldson Company, Inc. Duct Connections and Support Any duct or attenuator/silencer should have independent support. Do not use the fan to support duct or attenuator/silencer. Isolating the fan from duct with flex connections reduces transmission of vibration. Fans handling hot gases must be rated for operation at the gas temperature and require expansion joints at both the inlet and discharge to prevent excessive loads caused by thermal growth. -
Page 19: Start-Up / Commissioning
Torit Radial Blade Fan TRB-1 through TRB-10 Start-up / Commissioning Instruct all personnel on safe use and maintenance procedures. Rotating blades can cause serious injury. Operate equipment only when all guards are correctly and securely in place. Electrical installation, service, or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes. -
Page 20: Decommissioning
Donaldson Company, Inc. Decommissioning Once the equipment has reached the end of operational life it will need to be decommissioned. During decommissioning, there is potential for exposure to the dust in the collector. Most dusts present safety and health hazards that require precautions. Wear eye, respiratory, head, and other protection equipment suitable for the type of dust when performing any decommissioning activities. -
Page 21: Product Information
Torit Radial Blade Fan TRB-1 through TRB-10 Product Information (Process Owner to complete and retain for your records) Model Number _________________________________ Serial Number ___________________________________ Ship Date _____________________________________ Installation Date __________________________________ Filter Type_____________________________________________________________________________________ Collected Dust _________________________________________________________________________________ Dust Properties: Kst _______________Pmax ______________ MIE ____________ MEC __________________... -
Page 22: Service Notes
Donaldson Company, Inc. Service Notes Date Service Performed Notes... -
Page 23: Donaldson Industrial Air Filtration Warranty
Torit Radial Blade Fan TRB-1 through TRB-10 Donaldson Industrial Air Filtration Warranty Donaldson warrants to the original purchaser only that the Goods will be free from defects in material and manufacture for the applicable time periods stated below: (1) Major structural components for a period of ten (10) years from the date of shipment; (2) Non-Structural, Donaldson-built components and accessories including Donaldson Airlocks, TBI Fans, TRB Fans, Fume Collector products, Donaldson built electrical control components, and Donaldson-built Afterfilter housings for a period of twelve (12) months from date of shipment;... - Page 24 Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts. Important Notice: Many factors beyond the control of Donaldson can affect the use and performance of Donaldson products in a particular application, including the conditions under which the product is used.
