INTRODUCTION

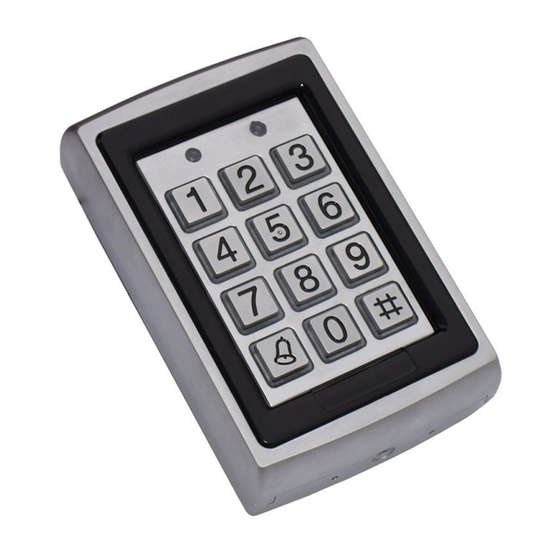

YK-568L is an access controller with proximity card operation and code keypad operation,
supports 500 users, with vandal resistant function.
TECHNICAL DATA
Mechanical Parameter
Dimension: 120L*76W*27H(mm)
Weight: 0.55kg
Built-in Proximity Card Reader
Distant: 65mm
Adjustment: ASK (125KHz)
Compatible Card: All 26-Bit EM Cards
Voltage
12VDC
FEATURE
YK-568L has 2 Mode：Common Mode & Secure Mode
A: Common Mode：Just 1 code（500 cards),everybody can use this code(500 cards).
For example, in your sales office, there are 20 salesman, and they know each other, if
you install a YK-568L here, you can use the Common Mode, because all your salesman
know this code(500 cards). No need to consider this is secure or not.
B: Secure Mode：in the condition of Secure Mode, any code/card can`t open the door.
For example, in holiday(off duty), when YK-568L is in Secure Mode, enter the code or
read the card, can`t open the door.
Change the Mode
When we produce YK-568L, the Mode is Common Mode, If need change Common Mode
to Secure Mode, or change Secure Mode to Common Mode, operate it as below:
1) From Common Mode to Secure Mode：Press"secure code"→#
2) From Secure Mode to Common Mode：Press"secure code"→#
Remarks：Secure Code when we produce is：3838
www.yli.cn
Single Door
Noctilucence & Waterproof
Model:YK-568L
Keypad W/
Input Current
Standby: 40mA (Not include other devices)
Max:
130mA (Not include other devices)
Environmental Parameter
Operating Temperature: -31
Operating Humidity: 0 to 95%
R
EMC
tested
Germany
to 63
We create security
1
Advertisement
Table of Contents
Related Manuals for Yli Electronic YK-568L
Summary of Contents for Yli Electronic YK-568L
- Page 1 For example, in your sales office, there are 20 salesman, and they know each other, if you install a YK-568L here, you can use the Common Mode, because all your salesman know this code(500 cards). No need to consider this is secure or not.
- Page 2 Code when we produce, please check as below: Program Code：1234 Open Door Code：2580 Secure Code：3838 OPERATION Change the Program Code,Open Door Code, Secure Code 1) Change Program Code：In Common Mode, Press“#”2 seconds→Enter Program Code(When we produce, the Program Code is 1234） →3→New Program Code→ “...
- Page 3 Wiring Diagram A: Connect Fail Secure Electric Lock B: Connect Fail Safe Electric Lock YK-568L YK-568L L R B1 B2 AI AO L R B1 B2 AI AO Electric lock Electric lock NO NC COM NO NC COM Power supply...
