Introduction
YK-1068/1168 Standard alone access control realize the card reading and keypad operation
functions, lock, alarm, ring bell, exit button and the magnetic contact switch on the door. The
access host supports 125kHz EM cards (YK-1068B YK-1168B YK-1068A YK-1168A)
It controls 1 door, supports up to 2000 users in total, each user have one card and one PIN.
The access control unit supports 1 master code, one manager add card, one manager delete
card, 1 anti-duress card and 1 anti-duress PIN, providing users with easy operation and safe
guarantee.
Features
Aluminium alloy case, waterproof, fully potted, confirms to IP65
Metal keypad(YK-1168A/YK-1168B) and touch panel(YK-1068A/YK-1068B) optional.
125KHz(EM card) reader (YK-1068A/YK-1068B) Digital backlit key(YK-1168A/
YK-1168B)and touch panel (YK-1068A/YK-1068B).
The back light can be set to Normal ON, Normal OFF or Auto.
With door bell f unction, build-in or external door bell optional.
Multi-function, operating as slave reader, single door, anti-pass back function, etc,
suitable for various occasions.
Specifications
Dimensions: 158.6×43×21.7mm(A) 125×83×21.7mm(B)
Operating voltage range: DC12-24V
Idle input current: ≤35mA
Max proximity card read range: EM card: 3-6cm
Excitation Frequency: 125KHz (YK-1068A/YK-1168A, YK-1068B/YK-1168B)
Card transmit format: Wiegand 26-37
Keypad transmit format: 4-6 digits key press to output card number format,
Operating temperature range: -40～60° C(EM card)
Operating humidity: 0～95%(non-condensing)
Weight: 0.5kg(A)/0.4kg(B)
Access Control Keypad
with Waterproof

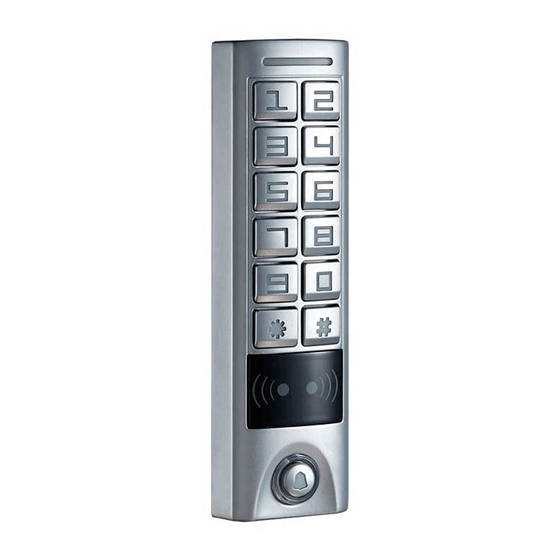

Model: YK-1068
Model: YK-1168
4 bits or 8 bits data.
R
EMC
tested
Germany
We create security
