- Page 1 User manual Toilet seat lift Liftolet Bath & WC edition 07/21...
-
Page 3: Foreword
We would like to thank you for your trust extended to us and for purchasing our product. The toilet seat lift Liftolet distinguishes itself by its quality, security, easy operation and modern design. For optimal use of this aid, we ask you and possible other users to carefully read this operating manual. -
Page 4: Table Of Contents
Table of contents Table of contents Topic Page Foreword ……………………………………… Table of contents ……………………………… Safety instructions …………………………… Warranty and product liability ……………… Position of CE label …………………………… Indications and prophylaxis ………………… 10 Purpose of use ………………………………… 10 Product overview ……………………………… 11 ………………………………... - Page 5 Safety instructions Safety instructions The toilet seat lift Liftolet is CE-marked and fulfils the requirements of the directive 93/42/EWG. It was developed in line with most recent findings. Production is subject to an on-going quality control. Please read this user manual carefully before operating the toilet seat lift.
-
Page 6: Safety Instructions
Liftolet carefully read all instructions of this user manual, as these have • The Liftolet may only be used by persons been drawn up for your safety and of a suitable stature and physical aptitude. - Page 7 • The Liftolet is connected via a power plug manual. to a standard household wall socket. The • Clean the toilet seat lift Liftolet in...
-
Page 8: Warranty And Product Liability
It The warranty can only be sustained if the is the customer’s responsibility to return the ATO FORM product is in use in the same item being claimed for under warranty to country where it was purchased and if the address of purchase. -
Page 9: Position Of Ce Label
Position of CE-sign Position of CE-sign The CE-label, which in- cludes the article number, serial number and man- ufacturer information is located on the back of the right column. Page 9/32 (07/21) -
Page 10: Indications And Prophylaxis
Purpose of use The device must be prescribed by a medical specialist, who has tested beforehand and determined if the Liftolet is suitable for the individual therapeutic goal of the patient. Furthermore, the medical specialist has determined the aid to be suitable according to measurements, weight and willingness of the patient to use the aid. -
Page 11: Product Overview

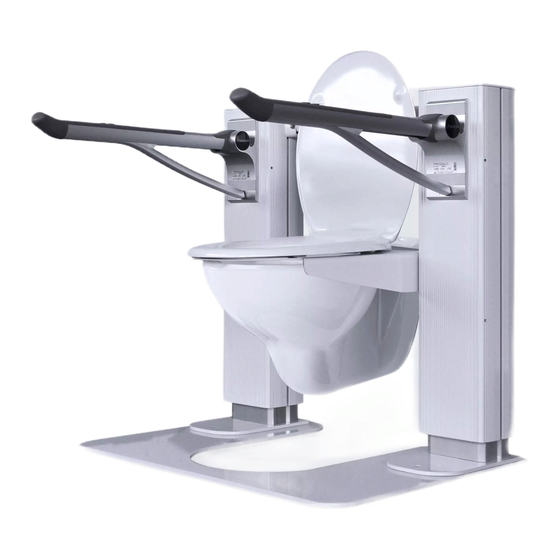

Product overview Product overview 8.1 Basic model 1. Lifting columns 2. Mounting flange 3. Base plate (option) 4. Carrier plate for the WC seat 5. WC-seat with lid 6. Cable channel 7. Upward folding support handles 8. Push button Image shown model “Smal” Page 11/32 (07/21) -
Page 12: Accessories / Options
1. Base plate 2. Upward folding support handles Pressalit ® You will find the most current overview of our extensive offer of Liftolet accessories and much more useful information on our homepage www.ato-form-com. Please contact us for special requirements of accessories or for specific problems, which are not illustrated or described here. -
Page 13: Initial Operation
Initial operation Initial operation The reseller is to unpack the unit, ensure that the components and accessories listed in the scope of delivery are all present and undamaged, and give the buyer the initial instructions on use of the aid. Above all the reseller should read through the complete present user manual carefully, in order to then explain it to the customer in detail. -
Page 14: Assembly And Adjustment
Space requirement: anchoring. • If the Liftolet is used by a wheel chair user, then the entry side is according to the space available. The minimal distance from WC seat is approx. 1m. - Page 15 WC. onto the WC. • It is recommended to raise the Liftolet once before marking the bore holes onto the floor to ensure the Liftolet does not...
- Page 16 Non-liability The person carrying out the works is soley responsible for proper and professional mounting of the Liftolet. The manufacturer accepts no liability for the carried out works or any damages resulting from this. Page 16/32 (07/21)
- Page 17 Assembly and adjustment Initial Operation “Position Lost” during operation: On first use of the system and in case of • If the system is overloaded or there is a error it is necessary to restart the system by height difference between the actuators following the steps given below.
- Page 18 Functionality: Intimate care: Push buttons are embedded in all offered The Liftolet is optionally available with an support arms for raising and lowering the opening at the front of the seat, which WC seat lift together with the support arms.
- Page 19 Assembly and adjustment For battery operated model (rechargeable battery) to charge the battery: The battery needs to be charged at least 24 hour before first use of the WC seat lift in order to ensure proper function and to prolong the lifetime of the batteries. The battery charger is designed for operation on 230 V alternating current.
-
Page 20: Accessories / Options
Assembly and adjustment 10.2 Accessories / Options Mounting with use of base plate • If the Liftolet cannot be mounted to the ground due to the reasons mentioned on point 10.1 then the base plate offered as an accessory should be used. To prevent... -
Page 21: Types Of Models And Accessories
Types and accessories 11 Types of models and accessories 11.1 Basic model Article No. Description LT-1000 Toilet lift seat Liftolet 11.2 Accessories / Options Article No. Description LT-0100 Base plate LT-0150 Support arms Pressalit ® Further information can be found in our current product information. -
Page 22: Technical Details
Technical details 12 Technical details Liftolet Lifting height base plate Lifting speed mm/s approx. 10 Electrical connection Protection class (splash water protection) IPX4 Width between the armrests Overall width Overall depth Seat height individually* Weight Maximum load Battery operated model... - Page 23 Technical details 800 mm approx. 540 mm * The carrier plate is preset at a height of about 48 cm. The actual height of the carrier plate is adjust- ed to the height of your WC basin during installation. Page 23/32 (07/21)
-
Page 24: Cleaning And Disinfection
Cleaning and disinfection 13 Cleaning and disinfection In order to ensure lasting trouble-free Disinfection: operation of the Liftolet in almost all For disinfecting, use household disinfectants operating conditions influenced by the and consider the following indications: existing conditions on site, please note the... -
Page 25: Maintenance And Overhaul
The device should be checked by the manufacturer at the latest after 5 years. 15 Operating life and Re-use The Liftolet is made from high quality The product Liftolet was designed so it materials and is subject to a continuous could be reused after the application of quality control in our house. -
Page 26: Faults, Repairs, Spare Parts
Faults, Repairs, Spare parts 16 Faults, Repairs, Spare parts If your toilet seat lift Liftolet cannot be operated? Please ensure….. • The plug is plugged in the socket and is supplied with power. • All plug connections are plugged in correctly and secured. - Page 27 Page 27/32 (07/21)
- Page 28 Page 28/32 (07/21)
- Page 29 Page 29/32 (07/21)
-
Page 30: Declaration Of Conformity
According to the regulations of the Council 93/42/EWG über Medizinprodukte. Directive 93/42/EEC concerning medical devices Hersteller / Manufacturer: ATO FORM GmbH, Zur Lauterhecke 34, D-63877 Sailauf Erklärt, dass das nachfolgend genannte Declares, that the following medical device Medizinprodukt Liftolet, WC-Sitz-Lift... - Page 31 Disposal of battery operated devices The battery pack must not be disposed of together with normal household waste at the end of its service life. Please observe the legal requirements in your area. Your municipal government and locally based waste disposal companies will be happy to provide you with information in this regard.
- Page 32 Thank you for your interest in our products. For questions please contact ATO FORM GmbH or your specialist dealer. Your ATO FORM Team Your specialist dealer ATO FORM GmbH, Zur Lauterhecke 34, 63877 Sailauf, Germany www.ato-form.com phone: 0049 6093/944 0 E-Mail: info@ato-form.com...
