Loctite 1390323 Instruction Sheet

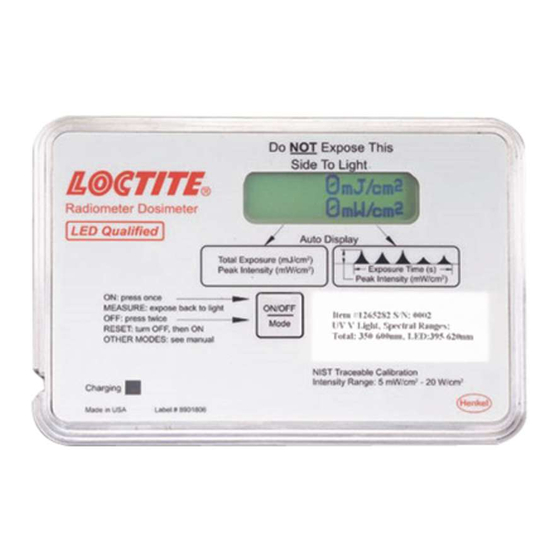

Part Number: 1390323 UV-A/B Radiometer Dosimeter
1265282 UV-V Radiometer Dosimeter

1.0 OPERATION:

When you first turn on the UV-V or UV-A/B Radiometer Dosimeter (Meter) by pressing the " On/Off Mode"button once, the system will
automatically test the battery and shut off if the system needs to be re-charged.

1.1 ADAPTER SELECTION

The Meter is designed to be used with Chambers, Conveyors, and Loctite® Led Curing devices. When using certain devices, it is recommended to
use the proper adapters which are purchased separately. The adapter must be installed before taking a reading.
1390323 UV-A/B Radiometer Dosimeter
Lamp/LED Device
365 LED Wand
UV Arc Lamps
375 Head 1369539

1.2 TAKING A READING: (DATA ACQUISITION MODE)

If the screen is blank, press the " On/Off Mode"button once. The unit will turn on and will display Screen One below. The meter will turn off
automatically in 5 minutes if no optical Power is detected.
Place the meter LABEL SIDE DOWN under the Light Source. After 5 seconds of reading, the display will alternate every 5 seconds between
numeric and graphical displays similar to screens 2 and 3. Screen Two shows energy density and irradiance. Screen three is a plot of irradiance
versus time.
Screen Two
To stop the display from alternating, press the " On/Off Mode"button once. Press it once again to start the display alternating again. The Meter will
shut itself off automatically after five minutes. To shut the Meter off immediately press the " On/Off Mode"button two times quickly.
Any current reading may be stored for future analysis in the data analysis mode. Please read the Data Acquisition section for details.
2.0 DATA ACQUISITION AND ANALYSIS
The Meter provides a visual display of the status of your LED Lights and lamps as seen on screen three and also has the capability to compare the
current condition of your equipment to that of a user selectable base line or reference condition. The Meter will hold ONE irradiance profile in
memory that can be visually compared to a measurement at any time.
2.1. CREATING A BASELINE:
To create a baseline, you will need to take a reading first. Follow instructions in section 1.2. Once you have taken a reading and you have a
profile as shown in SCREEN 3, you can create a baseline. To save the current profile as a baseline, press the " ON/OFF Mode"button three times
rapidly. This stores the current profile as your baseline. When you do this, the screen will read all zeros. This profile will remain as your
baseline until you press the " ON/OFF Mode"button three times when a current profile is displayed.
1265282 UV-V Radiometer Dosimeter
Adapter Lamp/LED Device
1403402 77xx and 77xxHD series LED' s
None Req. 405 Head 976420 & Indigo Head 976418
1421420 405 Head 1369538 & Indigo Head 1369539
Visible Arc Lamps
AssureCure Emitters

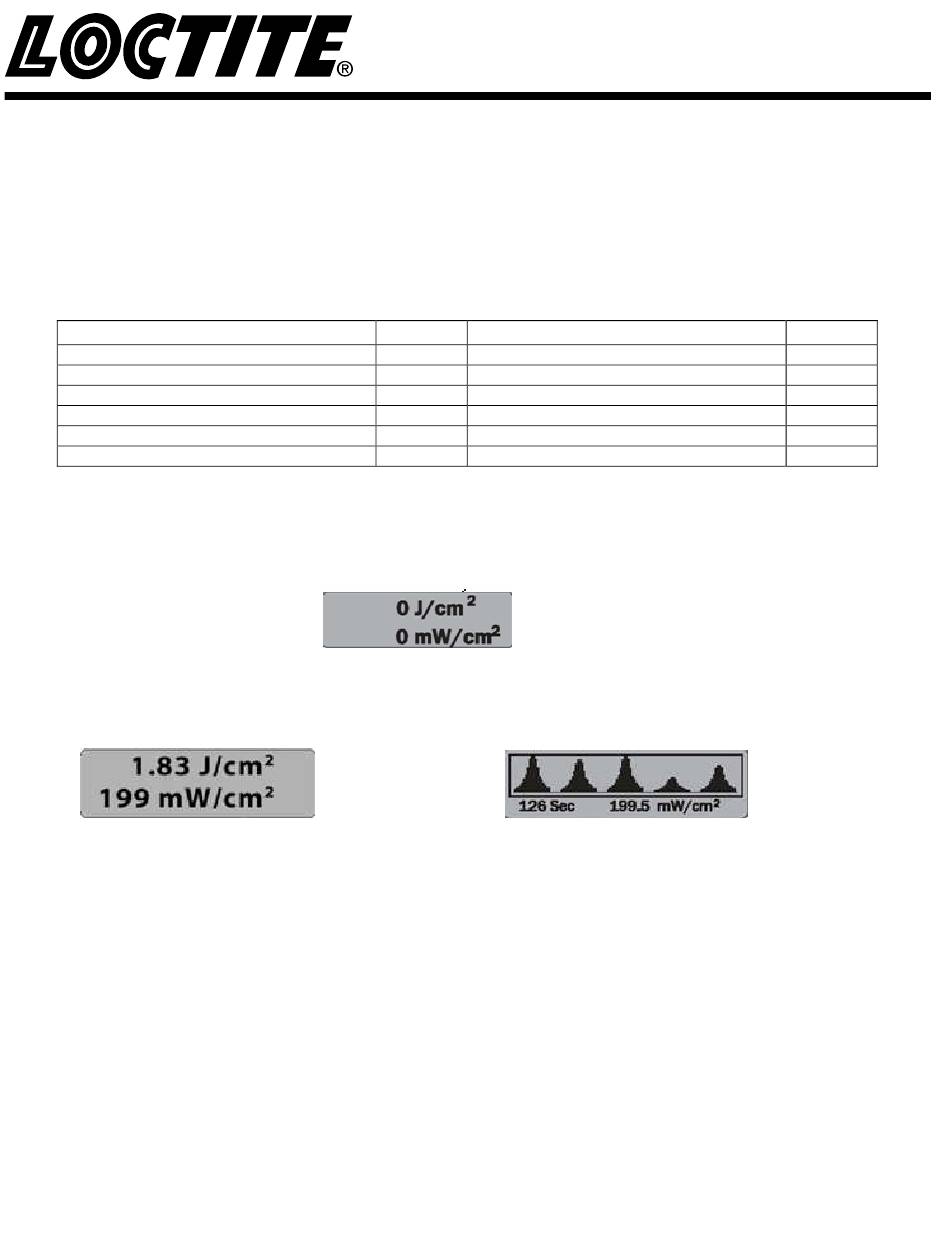

Screen One
EQUIPMENT
Instruction Sheet
Screen Three
Adapter
1403405
1403401
1421420
1403403
1527709
