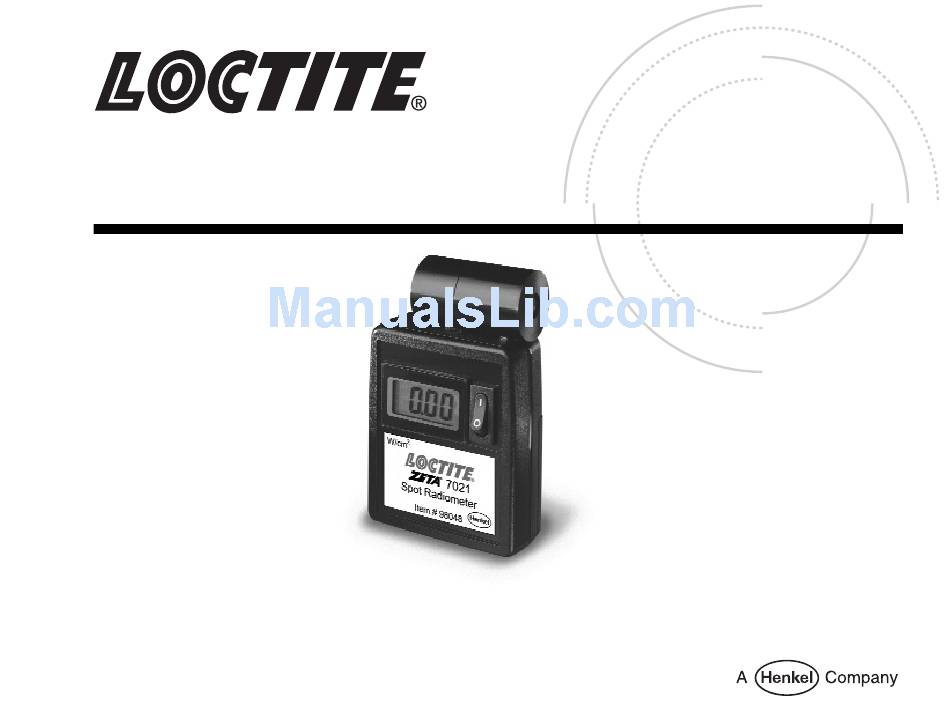

- Page 1 EQUIPMENT Operation Manual Loctite ® Zeta ® 7021 Spot Radiometer Part Number 98048...
-
Page 2: Table Of Contents
Contents Page No. Please observe the following....... 1-2 Emphasized Sections ........1 For Your Safety . -
Page 3: Please Observe The Following
1.2 For Your Safety IMPORTANT! DO NOT OPERATE THE UNIT BEFORE READING THIS SECTION. The Loctite ® UV Spot Radiometer will be used to measure the output of UV Wand Products. Always assure that the Wand is held securely in the Wand... -
Page 4: List Of Parts Supplied
3. Never look directly at the output from the UV Wand. 4. Make Sure that the Radiometer reading is Zero, before removing the UV Wand from the Sensor Head. When in doubt about UV safety, consult a Loctite technical specialist at: 1-800-LOCTITE (562-8483). 1.3 List of Parts Supplied •... -
Page 5: Description
2. Description The ZETA 7021 spot Radiometer Measures the UV Intensity emitted from ® a 3 mm or a 5 mm UV wand. The Intensity is measured from 280-400 nm (UV A+B). The Radiometer is traceable to the National Institute of Standards and Technology (NIST). - Page 6 2. Description (continued) Sensor Connector Panel Magnet Digital Panel Meter Display On/Off Rocker 0.00 Switch Spectral Response: 280-400nm (UV A+B) Peak Response: 370nm ±5% to 10% max. Accuracy: Sensor: GaAsP Photodiode Power: 9V Battery Irradiance Range: 0-19.99W/cm Resolution: 10mW/cm Front View Side View Back View Top Cover...
- Page 7 2. Description (continued) Sensor Head Filter Glass Sensor Plug Sensor Head Cap 3mm and 5mm Light Guide Magnet Sensor Head Assembly Figure 2.
-
Page 8: Operation
2. Description (continued) 2.1 Operation The Loctite ® UV Spot Radiometer is well suited for most production operations. The UV Spot Radiometer can be used to verify that the output from the wand system, under test, is proper for the curing process. When making measurements the wand should be held as straight as possible, and the ends should be clean. -
Page 9: Technical Data
3. Technical Data 3.1 Specifications Loctite Model: ZETA ® 7021 Loctite Part Number: 98048 Electrical Power Required: 9 Volt Alkaline Battery (Not Included) Dimensions L x W x D (inches): 3.0" x 2.5" x 1.05" Total Weight: 5.6 oz. Spectral Range:... -
Page 10: Calibration
7021 has been factory calibrated, prior to shipment, directly to the National Institute of Standards and Technology (NIST) primary physical standard for UV photodiodes. The recommended calibration frequency is every 12 months. Contact Loctite Corporation at 1-800-571-5174 for re-calibration services. -
Page 11: Installation
Any damage should be reported immediately to the carrier. Refer to the list of supplied parts (section 1.3) compare contents received to list of parts supplied. Report any missing parts promptly to the Loctite customer service department at 1-800-LOCTITE (562-8483). 4.2 Installation and Start-up The Loctite... -
Page 12: Operations
5. Operations 5.1 Controls and Operation The Zeta ® 7021 is easy to use. It requires only that a 9 volt Alkaline Battery be installed and the power switched on to operate. The panel meter displays the power reading in Watts per centimeter squared. -
Page 13: Troubleshooting
6. Troubleshooting Symptom Possible Cause/Corrective Action 1. No reading on Meter 1. Check if power switch is on. 2. Determine if battery is installed and functional. 2. Meter Reads only 1. Make sure that the Sensor Head is plugged zero or intermittent. in properly. -
Page 14: Care And Maintenance
Sensor Head A 12 month interval is recommended for the calibration of the Sensor Head. Contact Loctite at 1-860-571-5174 for calibration instructions. Keep the filter glass clean, it is located under the Sensor Head cap. The glass can be accessed by unscrewing the Sensor Head Cap (see figure section 2). -
Page 15: Warranty
A claim of defect in materials or workmanship in any Products shall be allowed only when it is submitted to Loctite in writing within one month after discovery of the defect or after the time the defect should reasonably have been discovered and in any event, within twelve months after the delivery of the Products to the purchaser. - Page 16 Auburn Hills, Michigan 48326 São Paulo-Brazil www.loctite.com Zeta and Loctite are trademarks of Loctite Corporation, U.S.A. © Copyright 2002. Loctite Corporation. All rights reserved. Data in this operation manual is subject to change without notice. P/N: 985706 Rev. B, 07/03...
