SPAUN SMS 41209 WBP Technical Instructions

Model GTS 525 WB
Art. No. 842233
Inputs 5
SAT/Terr. 4 / 1
Outputs / Subscribers 2 x 5
Through loss
Terr.: 5 ... 160 5 dB
MHz
Through loss
SAT-IF: 250 ... 2200 6 dB
MHz
Isolation
> 26 dB
Input / Input
Isolation
> 20 dB
Output Terr.:
Isolation
> 15 dB
Output SAT:
Isolation of taps > 26 dB
max. LNB supply current 450 mA
DC-through max. 30 V / 2 A
Ambient temperature 68 ... 122 °F
Dimensions in inch 6,14 x 6,02 x 1,46
Model GBK 5500 WBP
Art. No. 842451
Inputs 5
SAT/Terr. 4 / 1
Outputs / Subscribers 5
Trunk gain
- 2 dB
Terr.: 5 ... 160 MHz
Trunk gain
18 ... 28 dB
SAT-IF:250 ... 2200 MHz
Maximum output level
250 ... 2200 MHz
1,25 dBm
35 dB IMA / EN 50083-3
3
Isolation of taps > 26 dB
max. LNB supply current 450 mA
Ambient temperature 68 ... 122 °F
Dimensions in inch 3,75 x 6,02 x 1,46
External power supply 100-240V, 50-60Hz
SNG 18 / 1000 DC 18 V / 1000 mA
Application Example 14 V
Stack Plan
Ka-Low 99° L
Ku 101° L
Ka-High 99° L
SAT IF frequencies
Ka-Low
Ku
Ka-High
Model GZR 5550/15 WB
Art. No. 841155
Inputs 5
SAT/Terr. 4 / 1
Outputs / Subscribers 2 x 5
Through loss
3 dB
Terr.: 5 ... 160 MHz
Through loss
5 dB
SAT: 250 ... 2200 MHz
Tap loss
10 dB
Terr.: 5 ... 160 MHz
Tap loss
15 ... 13 dB
SAT-IF: 250 ... 2200 MHz
Isolation
trunk / trunk > 26 dB
trunk / tap > 26 dB
tap / tap > 26 dB
DC-through max. 30 V / 2 A
Ambient temperature 68 ... 122 °F
Dimensions in inch 6,14 x 6,02 x 1,46
The wall power supply SNG 18/1000 is
included in the delivery for the following
products: SMS41x09, GMS 5XX09
WBP, GBK 5500 WBP

Stand-By Mode

The multiswitches have a stand-by
mode. In stand-by mode the satellite IF
amplifier stages and the supply for the
LNB are switched off. If a receiver or
antenna test equipment with LNB pow-
er supply is connected to a subscriber
output, then the multiswitch switches
automatically to standard mode.
18 V 14 V + 22 kHz 18 V + 22 kHz
99° R 103° L 103° R
101° R 119° L 110° / 119° R
99° R 103° L 103° R
250 - 750 MHz
950 - 1450 MHz
1650 - 2150 MHz
Technical Instructions
for the wideband devices
SMS 41X09 WBP, GMS 5XX09 WBP,GBK 5500 WBP, GTS
525 WB and GZR 5550/15 WB

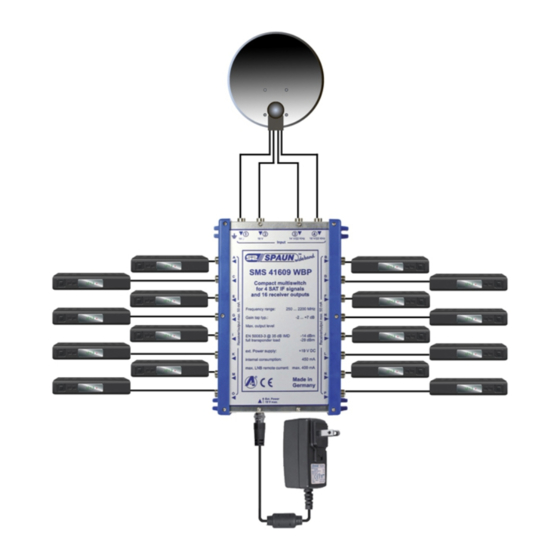

• The wideband multiswitches of the SMS 41x09 WBP series are
designed to distribute the KA KU band signals from the DIRECTV 5
LNB system to 12 or 16 subscribers
• It is possible to get the HD channels using a HD capable
receiver
• The multiswitches are fed by an external wall power supply SNG 18/1000.
The maximum current is 1000 mA
Important: please observe the following instructions!
• The equipment described is designed solely for
use in installation of satellite receiver systems.
• Any other use, or failure to comply with these
instructions, will result in voiding of warranty cover.
• It is a must to comply with all country specific
installation and safety regulations.
• The equipment may only be installed in dry indoor
areas. Do not mount on or against highly combus
tible materials.
• The safety regulations in accordance with EN 50083-
and EN 60065 A 11 must be observed.
• Fixings: Wood screws, max. : 4,5 mm
• Connector: Screw coupling 75 (series F) to IEC 60169.
• Unused subscriber connections should be terminated
by 75 Ohm resistors (e.g. ZFR 75 DC).
SPAUN electronic confirms the keeping of the EMC
requirements in accordance to the EU product norm
EN 50083-2 and the keeping of the safety requirements
in accordance to the EU product norm EN 50083-1
by the CE sign.
The multiswitches meet the more stringent screening
requirements according to EN 50083-2, quality grade A.
All components are equipped with an earthing
terminal for connecting to the main potential equalization.
Specifications and design are subject to change due to our policy of continual technical improvement. 104056/07.08
