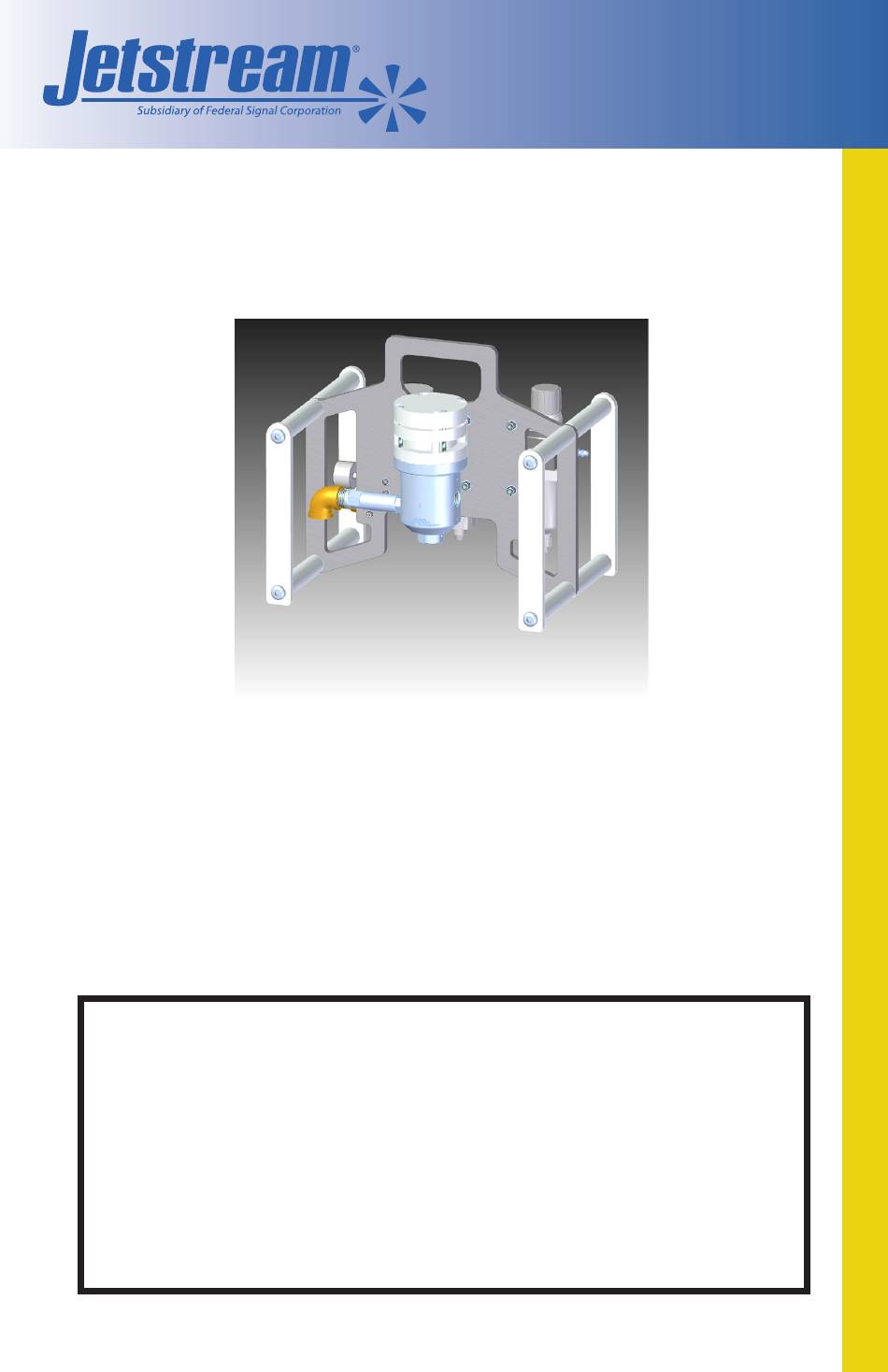

PRODUCT INSTRUCTIONS
40K Multi-Mode Valve (PN 53905/54695)
PI-121

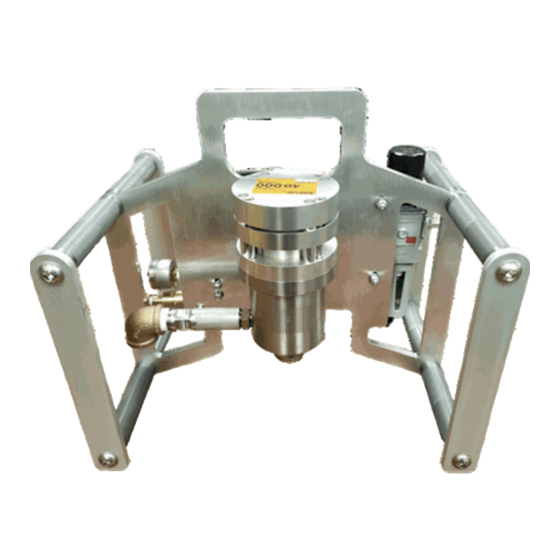

The 40,000 psi Multi-Mode Valve
valve and air-flow regulator. It is to be used in conjunction with the
Jetstream Tornado Gun. The Multi-Mode Valve also controls the quality
and flow of air into the gun's air motor. This tool utilizes a self-contained,
easily-removable cartridge that includes all necessary parts to overhaul
the control valve. The cartridge can be easily replaced in the field within
one minute. The 40K Multi-Mode Valve is rated for operation at 40,000
psi maximum working pressure.
Read these instructions thoroughly before installing, connecting, or using the 40K
MULTI-MODE VALVE. If any questions remain, call JETSTREAM at (800) 231-8192
or (832) 590-1300. Also read the yellow JETSTREAM SAFETY WARNING pamphlet
included with the shipment of your new 40K MULTI-MODE VALVE and reproduced
inside this publication. This product is sold with the understanding that the
purchaser agrees to thoroughly train all operators and maintenance personnel in
the correct and safe installation, operation and maintenance of the product and to
provide adequate supervision of personnel at all times. Retain these instructions
for future reference. If this product is resold or otherwise conveyed, purchaser
must pass on the instructions to the new user.
is a combination air-actuated control
TM
