PresenterCard

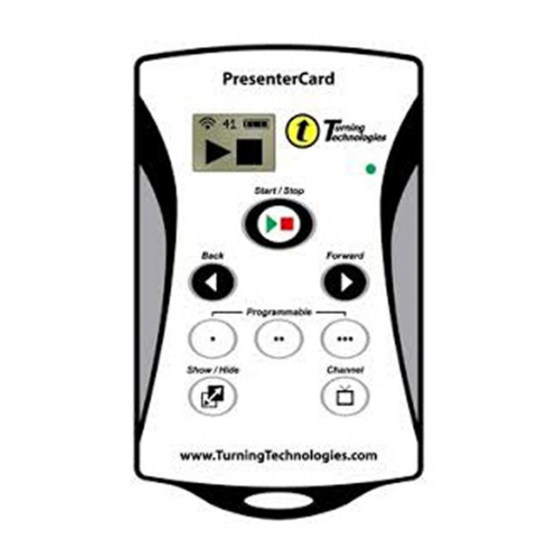

About PresenterCard
PresenterCard is a radio frequency hardware clicker that interacts with Turning Technologies, LLC polling software allowing
presenters mobility in the classroom. Additionally, presenters have the ability to customize the device to their needs.
System Requirements
The following requirements are necessary for PresenterCard to properly function:
One of the following receivers:
RRRF-03 receiver - 2.7 firmware or higher
l
RRRF-04 receiver - 2.7 firmware or higher
l
One of the following software applications:
TurningPoint - 6.0 or higher
l
TurningPoint AnyWhere PC and Mac - 3.0 or higher
l
Changing the PresenterCard Channel
The PresenterCard and RF receiver channels must coincide.
1
Press the
on the PresenterCard.
2
Press
or
3
Once the desired channel number is shown on the LCD display, press
PresenterCard Button Functions
The table below defines each programmable button on the PresenterCard.
Button
TurningPoint
The Start/Stop button is used to
open/close polling.
The Back button is used to
move backwards through a slide
deck.
The Forward button is used to
advance through a slide deck.
to increase or decrease channel numbers.
TurningPoint AnyWhere
The Start/Stop button is
used to open/close polling.
The Back button is used to
move backwards through a
slide deck.
The Forward button is used
to advance through a slide
deck.
to set the channel.
PresenterCard Programming
N/A
The Back button is used to move in des-
cending order through channel numbers dur-
ing programming.
The Forward button is used to move in
ascending order through channel numbers
during programming.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PresenterCard and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Turning Technologies PresenterCard

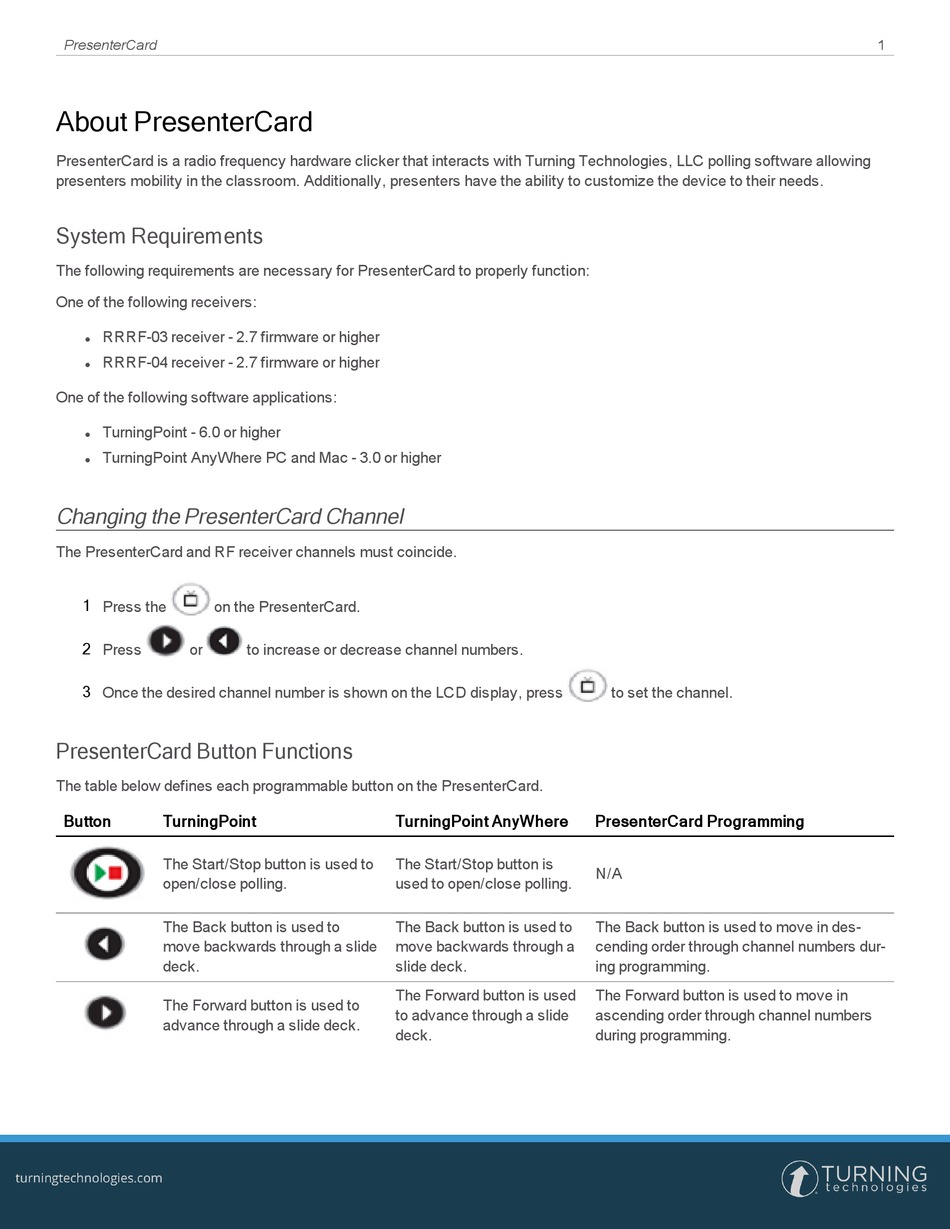

  • Page 1 PresenterCard About PresenterCard PresenterCard is a radio frequency hardware clicker that interacts with Turning Technologies, LLC polling software allowing presenters mobility in the classroom. Additionally, presenters have the ability to customize the device to their needs. System Requirements The following requirements are necessary for PresenterCard to properly function: One of the following receivers: RRRF-03 receiver - 2.7 firmware or higher...
  • Page 2 Press any button on the PresenterCard to pair it with TurningPoint. Once the Device ID appears in the PresenterCard Pairing window, click Pair. The PresenterCard Device ID now appears in the Settings menu next to PresenterCard Device ID. Configuring the PresenterCard Programmable Buttons...
  • Page 3 The PresenterCard Device ID now appears in the Settings menu next to PresenterCard Device ID. Configuring the PresenterCard Programmable Buttons The PresenterCard programmable buttons can be set to show/hide the chart window, insert a countdown timer, insert a Response/Non-Response Grid, show/hide the presentation window, make a polling question anonymous, display the connection information or do nothing.
