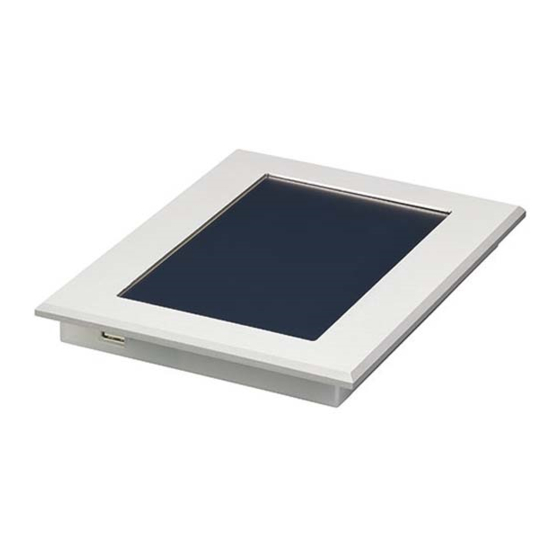

Tridonic x/e-touchPANEL 02 Manual
  1. Manuals
  2. Brands
  3. Tridonic Manuals
  4. Touch Panel
  5. x/e-touchPANEL 02
  6. Manual

Tridonic x/e-touchPANEL 02 Manual

Sensors & controls
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sensors & Controls
x/e-touchPANEL 02
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the x/e-touchPANEL 02 and is the answer not in the manual?

Questions and answers

Related Manuals for Tridonic x/e-touchPANEL 02

Summary of Contents for Tridonic x/e-touchPANEL 02

  • Page 1 Sensors & Controls x/e-touchPANEL 02 Manual...

  • Page 2: Table Of Contents

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Table of Contents 1. Validity 4 1.1. Copyright ....................... . . 4 1.2.
  • Page 3 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Table of Contents 7.3. USB interface ......................89 7.4.

  • Page 4: Validity

    Scope of documentation This operating instruction is valid for the DALI control system x/e-touchPANEL 02. TRIDONIC GmbH & Co KG is constantly striving to develop all its products. This means that there may be changes in form, equipment and technology.

  • Page 5: Safety Instructions

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Safety instructions The operator must ensure that all users fully understand these instructions and adhere to them. 2.1. Designated use The x/e-touchPANEL can be used for the following applications: For controlling DALI emergency lighting systems in Emergency operating mode or controlling DALI lighting systems in the Basic, Colour or Plug operating mode.

  • Page 6: About The Device

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en About the device 3.1. Operation The x/e-touchPANEL can be operated in two different ways: via the integrated touchpanel via a PC (which must be connected to the x/e-touchPANEL) The operation differs as follows:...

  • Page 7: Different Settings

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en About the device 3.3. Different settings Prior to commissioning the x/e-touchPANEL the basic settings must be configured. Other follow-up settings differ, depending on which pplication has been chosen: Emergency Application Basic, Colour, Plug Application...

  • Page 8: Basic Settings

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings 4.1. Overview of the basic settings The following table gives an overview of the basic settings of the x/e-touchPANEL. These are located in the "Configuration" menu as tabs at the top of the page.
  • Page 9 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings Use DHCP Enables the assignment of the network configuration to clients by a server. IP address Entering the IP address (for the Ethernet connection). Subnet mask Entering the net mask (for the Ethernet connection).

  • Page 10: Configuring The Basic Settings

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings 4.2. Configuring the basic settings 4.2.1. Selecting the language Click on the "Main menu" symbol. -> The "Main menu" is displayed Click on the "Configuration" button -> The "Configuration" page is displayed ->...
  • Page 11 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings Select the Basic, Colour or Plug Application for the DALI operating modes or Emergency for controlling the emergency lighting in the dropdown menu. Confirm the selection with OK. -> A dialog box is displayed indicating that a restart is essential depending on the Application selected.
  • Page 12 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings 4.2.4. Setting the time and date Setting the time and date is necessary for time-controlled actions and for the frame light. NOTICE The x/e-touchPANEL is supplied by a back-up battery for up to 3 days in the event of a power failure. If no voltage is supplied to the x/e-touchPANEL for a longer period of time, a dialog box indicates that the time and date must be entered again after the restart.
  • Page 13 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings Clean the touchscreen with a soft, damp cloth. 4.2.6. Setting the touchscreen Set the user interface to your requirements in the Display tab. NOTICE It is possible to load an application-specific screen saver (see "...
  • Page 14 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings -> The password protection is set (factory default ›1234‹). A dialog box is displayed to change the password. In order to change the password, click on Yes and enter the old password in the following dialog box.
  • Page 15 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings Start Starts scheduler. A sequence is restarted; the schedule and schedule list are continued. Scheduler Click on the "Main menu" symbol. -> The "Main menu" is displayed Click on the "Configuration" button ->...
  • Page 16 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Settings 4.2.9. Determining device names and the program version Click on the "Main menu" symbol. -> The "Main menu" is displayed Click on the "Configuration" button -> The "Configuration" page is displayed Click on the "System"...

  • Page 17: Emergency Application

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.1. Overview 5.1.1. Design and function Up to 120 DALI emergency units can be controlled and monitored with the x/e-touchPANEL in Emergency Application. In addition, the emergency lighting tests prescribed in the relevant standards can be performed automatically.
  • Page 18 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.1.3. System status OK is displayed on the System status page if there are no errors in the system. The number of installed emergency units is also indicated. Error is displayed on the System status page if there is an error in the system. The number of errors is also indicated.
  • Page 19 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application NOTICE "TestBook" entries are written to the buffer memory. If the memory is full, the oldest "Test Book" will be deleted make room for new entries. The following calculation shows how many entries can be saved before this is the case.

  • Page 20: Settings For Emergency Application

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application Identification DALI A Used to start and stop the identification flashing of the status LEDs of the DALI line A emergency units Identifikation DALI B Used to start and stop the identification flashing of the status LEDs of the DALI line B...
  • Page 21 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application OK: green, in the case of an Frame light lights up green if the status is OK and lights up red if the error: red status is Error. Entering the unit/group name The unit and group name is indicated in the test protocol.

  • Page 22: Dali Communication Test

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.3. DALI communication test The consistency of the DALI connection can be tested if necessary. The command Recall max and Recall min are transmitted alternately seconds apart. Click on the "Main menu" symbol.

  • Page 23: Addressing And Grouping Emergency Units

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.4. Addressing and grouping emergency units Every emergency unit must be assigned an individual address in order for the x/e-touchPANEL to be able to communicate with the emergency units. Three addressing methods are differentiated: System extension: If new emergency units have been added to an existing system, an address is assigned to these units.
  • Page 24 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application -> Each emergency unit is displayed as part of a group. Click on the Save symbol in order to save the grouping in the emergency units. 5.4.1. Changing the grouping Based on an algorithm, the emergency units are assigned to six groups.
  • Page 25 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application Mark the emergency unit for which you want to change the grouping in the Test group field. - or - Select the address of the emergency unit using the arrow keys.
  • Page 26 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application The "Group" box shows which operating devices belong to a specific group. Devices can be selected and removed from the group The Save button opens up the dialog box "Save as group". Select a group in which you save the current settings.

  • Page 27: Programming The Prolong Time

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.5. Programming the prolong time If necessary, emergency lighting operation can be prolonged by a maximum of one hour once the power has been restored, e.g. to bridge the restarting time of high-pressure lamps in the case of short mains voltage interruptions.

  • Page 28: Configuring The Error Signalling

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.6. Configuring the error signalling Two DALI addresses of DALI line A can be defined for fault signalling. In this way, the error status can be transmitted to a higher-level system via relay modules DALI RM or DALI 3-RM-C or indicated by signal lamps.
  • Page 29 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application Use the arrow keys to select both addresses for the "Status report: OK" and "Status report: Error". Click on the green arrow key at the bottom right and select the Save symbol.
  • Page 30 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.6.2. Activating the error signalling Click on the "Main menu" symbol. -> The "Main menu" is displayed Click on the "Configuration" button -> The "Configuration" page is displayed Click on the "Emergency" tab ->...

  • Page 31: Identifying Emergency Units

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.7. Identifying emergency units In order to indicate the defective emergency unit if a malfunction has occurred, the emergency units can be identified individually. For identification, the status LEDs of the emergency units flash green and red alternately. After having flashed six times, there is always a pause.

  • Page 32: Manually Testing Emergency Units

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.8. Manually testing emergency units After all emergency units have been installed, addressed and identified, the function and duration time of the units must be tested. During the test, the emergency units to be tested are switched on. A status line in the x/e-touchPANEL indicates the type of test (FT ›function test‹, DT ›duration test‹, CT ›communication test‹) and the respective groups.
  • Page 33 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5. To abort the test, click on the status line of the test. -> The following information is displayed in the test protocol: Column Meaning Possible cause Corrective action...
  • Page 34 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application Duration test was interrupted Charge Test Failure, Case 1: battery for at Test could not be performed Battery was not fully charged least 20 within 24 hours. because of power failure...

  • Page 35: Determining The Starting Time For Automated Testing

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.9. Determining the starting time for automated testing To automate a function test, duration test or communication test for an emergency unit the starting time must be determined. Individual times can be set separately for each group. This ensures that in the case of a power failure a sufficient number of lamps are in working order.
  • Page 36 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application cyclic The communication test will be performed every 4 seconds. NOTICE The first week of a month is defined to last from the 1st to the 7th day of the month. The third week of a month is defined to last from the 15th to the 21st day of the month.
  • Page 37 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application For the "communication test" click on the respective time. -> The dialog box "Entry time" is displayed Set time Comfirm with click on "OK" -> Starting time for "communication test" is set If the feature cyclic communication test is used the test will be repeated every 4 seconds.

  • Page 38: Set Up Email Function

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.10. Set up eM ail nction Click on the "Main menu" symbol. -> The "Main menu" is displayed Click on the "Configuration" button -> The "Configuration" page is displayed Click on the "eMail"...

  • Page 39: Deactivating Emergency Units

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application 5.11. Deactivating emergency units If the main power supply is switched off and you do not want the emergency units to switch on (e.g. in the case of a...
  • Page 40 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Emergency Application NOTICE Not all emergency units support the "stop REST / INHIBIT" function. 5.11.2. Preventing the emergency units from switching on The main power supply is switched on. Ensure that emergency operation is not necessary.

  • Page 41: Basic, Colour, Plug Application

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application 6.1. Overview 6.1.1. Design and functions In the Basic, Colour and Plug Application the x/e-touchPANEL is an operating device and controller for DALI lighting systems. The xetouch software that is controlled using a colour touchscreen is integrated into the ›x/e-touchPANEL‹.
  • Page 42 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application Display light Always ON or automatically dimmed 2 min. after last activation. 42 / 118...
  • Page 43 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application 6.1.2. ›xetouch‹ software The following explanations will help you understand the ›xetouch‹ software. Designation Meaning Operating DALI operating device device Group (G) The ›xetouch‹ software communicates with the operating devices (max. 64 per DALI line) via groups (max.
  • Page 44 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application from the standard Basic Application with respect to the grouping of the operating devices. In the ›xetouch‹ software, each RGB-/RGBW operating device is assigned to the colour scale (red, green, blue, white) of a zone.
  • Page 45 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application 6.1.3. Navigation When you navigate through the ›xetouch‹ software you are guided through menus that are called up by pressing symbols and buttons. Certain functions, such as grouping, can be operated using Drag & Drop, i.e. a symbol can be touched and dragged to the intended position on the touchscreen.
  • Page 46 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application Click on the "Home" button. Click on the arrow keys as often is necessary until the desired lighting situation is displayed (e.g. scene). Click on the button to call up the lighting situation (e.g. scene).
  • Page 47 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application Addressing/grouping Opens the page where you can select the addressing method, address the devices and split them into groups or zones. Configuration Opens the page where you can configure the software and communicate via interfaces.

  • Page 48: Settings For Dali Applications

    (e.g. night service). Select the colour in the dialog box Frame light. If you do not activate the screen saver, Tridonic recommends using the display light Dimmed automatically for the x/e-touchPANEL since this setting will prevent an image persistence.
  • Page 49 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application Click on the "Configuration" button -> The "Configuration" page is displayed -> The "Display" tab is displayed. Click on the Frame light button to change the frame light or display light.
  • Page 50 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application Select the lighting situation and click on the "Edit" button next to it. -> The dialog box Keyboard is displayed. Enter the new name and confirm with the Enter key.
  • Page 51 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application 4. Select the desired design. If the Modern design as been selected, the main menus will be shown as Menu 1 or Menu 2, for example. For the Designs Classic and Classic Grey the background colour can be changed.
  • Page 52 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application In the Display window you will see the new field Colour. Select the field Colour. In the new Field you can change the Design colours. For Background, inactive buttons and active buttons.
  • Page 53 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic, Colour, Plug Application Or by typing in the RGB values. NOTICE The following only shows illustrations for the Classic design. 53 / 118...

  • Page 54: Basic Application

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application 6.3. Basic Application This chapter contains the following topics: Addressing and grouping Scenes Sequences Schedules (SDL) Schedule list (SDLL) NOTICE You can assign names for groups, scenes, sequences and schedules to facilitate programming and operating steps (see "...
  • Page 55 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application DT 10 optical control The dialog box Addressing method offers three addressing options: System extension: Only newly added operating devices are addressed. The existing addresses remain unchanged. Reinitiialization: All operating devices in the system are re-addressed. The existing addresses are overwritten.
  • Page 56 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application Use the check box to select if the numbering of the devices and groups is to start with 1 or 0. The Folder button opens up the dialog box Select group.
  • Page 57 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application Tunable White When using DT8 DALI devices the dimming function is replaced by the Tunable White method. Colour temperature from cooler to warmer and vice versa is changed in mirek steps.
  • Page 58 The corresponding operating device reacts when the device address is touched. NOTICE Tridonic recommends saving Somfy operating devices in separate groups, i.e. separately from other operating devices. Click on the "Main menu" symbol. -> The "Main menu" is displayed Click on the "Addressing/grouping"...
  • Page 59 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application Click on the "Next >" button. -> The ›x-touch‹ software looks for operating devices that are connected and displays the number of operating devices found. When the message "Search completed" is displayed, click on the Complete button.
  • Page 60 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application 6.3.2. Colour Temperature Colour Temperature allows you to change the Colour Temperature over the day. In this window you can set the min. and max. Colour Temperature. Also the min. and max. Light Level can be set in a range between 1-100%.
  • Page 61 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application To test the function select the Test field. To start the function select the Start field. Once the function is started, colour temperature and dim levels (if active) will be repeated every 60 seconds.
  • Page 62 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application The buttons are used to set the light colour when a DT8 device is used. If a group is used for Tunable White components, an input field is also displayed in this group in addition to a scroll bar.
  • Page 63 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application group. - or - Click on the Mask button so that settings of the scene do not influence the first group. - or - Click on the Off button to switch off the first group.
  • Page 64 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application Element Meaning / Function The sequence number (S1) is preset at the factory; the name (Sequence 1) can be assigned as desired. Use the arrow keys to select the scene that you want to include in the timeline.
  • Page 65 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application One or several scenes are defined. Click on the "Main menu" symbol. -> The "Main menu" is displayed Click on the "Sequence" button. -> The SQ... page is displayed.
  • Page 66 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application Setting the exact starting and fade time of a scene After you have moved the scenes to the timeline you can set the exact starting and fade times for the individual scenes.
  • Page 67 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application Element Meaning / Function The schedule number (SDL1) is preset at the factory; the name (Schedule 1) can be assigned as desired. Use the arrow keys to select the sequences and scenes that you want to include in the timeline.
  • Page 68 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application NOTICE If a sequence, schedule or schedule list is started in the Scheduler, the currently enabled function (Sequence, Schedule, Schedule list) is terminated. Configuring schedules A schedule is defined by the order of scenes and sequences on the timeline.
  • Page 69 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application NOTICE The exact starting time of a sequence is set in the same way as for a scene (see "Setting the exact starting and fade time of a scene, p. 66 ").
  • Page 70 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Basic Application Select the schedule. - or - Select Off. Repeat steps 2 to 5 for each weekday. -> The schedule list is saved without confirmation. NOTICE A schedule list is started, ended or interrupted in the "Home" menu (see "Manually switching a sequence,...

  • Page 71: Colour Application

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Colour Application 6.4. Colour Application This chapter only explains the operating steps that are different from the Basic Application. The chapter contains the following topics: Changing the Application to Colour Addressing and zone assignment Colour sequences The following topics are performed identically in both Applications.
  • Page 72 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Colour Application Addressing RGBW operating devices and assigning them to zones The descriptions of the procedure and addressing methods System extension and Reinitialization can be found in the chapter " Addressing and grouping, p.
  • Page 73 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Colour Application NOTICE The zone assignment is only saved when you click on the Save button and confirm with OK in the dialog box. 6.4.3. Configuring colour sequences In a colour sequence, scenes (white light) and colour events (RGB (W)) are saved at a defined position on a timeline.
  • Page 74 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Colour Application Confirm the entries with OK. With the arrow keys and the magnifier, adjust the timeline section in such a way that the starting time for the colour event is visible.
  • Page 75 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Colour Application To determine the RGB value using a colour table, click on a colour in the first RGB tab. - or - To enter the RGB value numerically, enter the RGB values in the second tab.

  • Page 76: Plug Application

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Plug Application 6.5. Plug Application The Application mode is designed to be easy to use. All operating steps have already been explained in the previous sections. 6.5.1. Changing the Application Changing the Application is described in the section "...

  • Page 77: Operation In The Home Menu

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu 6.6. Operation in the Home menu In the Home menu, lighting situations are called up manually using freely configurable buttons. NOTICE The following rules apply for operation in the Home menu: If an action is called up manually, this is independent of time-controlled situations.
  • Page 78 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu Colour Application Switching a maximum of 4 pages with 4 scenes and dimming them. One page with 8 colour effects for 4 zones for each colour scene.
  • Page 79 -> The operating devices that are set can be dimmed using the buttons in the Home menu. NOTICE The Dim buttons can only be configured in the Basic Application. Tridonic recommends activating the Dim buttons for a maximum of 4 groups to ensure that there is no time delay with the dimming. 79 / 118...
  • Page 80 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu 6.6.3. Configuring buttons in the Home menu The following table lists the optional configurations of the buttons depending on the Application. The Dim buttons can only be configured in the Basic Application. It is only possible to dim the white light (groups A to D) in the ColourApplication.
  • Page 81 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu OFF (on Scene, Group, Scheduler page) OFF (on Scene, Zone, Colour scene, Group, No function Scheduler page) Broadcast OFF (switch off all operating devices) No function...
  • Page 82 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu If this scene is only to be called up briefly and to interrupt the current sequence (e.g. cleaning of the room), click on the black arrow key next to Stop current sequence for: and select the duration of the interruption.
  • Page 83 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu Click on Zone to set the colour for the first zone. -> The dialog box Details for colour event is displayed. Enter the colour using one of the three tabs.
  • Page 84 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu Button Operating function Opens the dialog box for selecting a lighting situation (sequence 1 to 99, schedule 1 to 7 or schedule list). Shows the lighting situation that is called up using the Start/Pause, Stop and Off buttons.
  • Page 85 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu 6.6.5. Stop running sequence, schedule or schedule list It is possible to stop running sequences or schedules or schedule lists with other control modules (e.g. DALI XC, DALI TOUCHPANEL 02) when sending Broadcast OFF or MAX command.
  • Page 86 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Operation in the Home menu It is also possible to download the UI_Layout.png via the ethernet connection on the panel. 6.6.8. Loading application-specific screen saver NOTICE The screen saver can be individually changed. More information can be found at chapter "Replace screensaver...

  • Page 87: Interfaces

    ". NOTICE Software updates The software for the x/e-touchPANEL 02 is continuously developed and improved. Software updates are provided to our customers free of charge. To make sure that you always use the latest software version, you can register www.tridonic.com/xe As a registered user you will be notified by email whenever a new update is available.

  • Page 88: Overview

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces 7.2. Overview The x/e-touchPANEL has a USB interface and enables the transmission of: Test protocols (e.g. for archiving) Application software updates for the x/e-touchPANEL Configuration files NOTICE The configuration file of a x/e-touchPANEL contains the system settings (including the addresses of emergency lighting, device/test group names for the EMERGENCY Application or addresses of operating devices, names of devices, groups, scenes, etc.

  • Page 89: Usb Interface

    USB stick. 7.3.1. Registration instructions The software for the x/e-touchPANEL 02 is continuously developed and improved. Software updates are provided to our customers free of charge. To make sure that you always use the latest software version, you can register at www.tridonic.com/xe...
  • Page 90 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Click on button "Register" to submit data. -> An E-mail with a download link will be sent to the address entered at "Email". Click on download link. -> The software (zip file) is downloaded automatically.
  • Page 91 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Insert the USB memory stick into the USB interface of the x/e-touchPANEL. -> The screen "USB Loader App" is displayed. -> Data is transmitted. -> A message appears "Please remove the usb stick".
  • Page 92 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces 7.3.3. Load customised design (only available in Basic, Colour, Plug Applikation) You have already registered at www.tridonic.com/xe and downloaded the software. Customised design template Design UI_Layout.png can be found in extracted folder.
  • Page 93 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Choose option "User defined (png)". -> Conversion of design is completed. -> Customised design is displayed. 7.3.4. Replace screensaver image x/e-touchPANEL allows loading a customer specific screensaver image, for example with a specific logo.
  • Page 94 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Click on the "Configuration" button -> The "Configuration" page is displayed Click on the "System" tab -> The "System" tab is displayed Click on the "USB" button -> The dialog box "USB backup" is displayed Activate checkbox "Configuration (ConfigData.bin)"...
  • Page 95 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Confirm with click on OK. Disconnect USB memory stick -> Configration file and/or testbook is saved. 7.3.6. Load configuration file or testbook The x/e-touchPANEL allows you to load the configuration file or the testbook via USB interface. The procedure is the same for BASIC, COLOUR, PLUG and EMERGENCY Application.
  • Page 96 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Click on "USB" button -> The dialog box "USB backup" is displayed. Activate checkbox "Configuration (ConfigData.bin)" to load configuration file to x/e-touchPANEL (all Applications). - or - Activate checkbox "Test book (TestBook.bin)" to load testbook to x/e-touchPANEL (only available in EMERGENCY Application).
  • Page 97 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces 7.3.7. Download testbook (only EMERGENCY Application) The x/e-touchPANEL allows you to save the testbook. Proceed as follows. Insert a USB memory stick into the USB interface of the x/e-touchPANEL. Click on the "Test protocol" symbol.
  • Page 98 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Go to main menu, select Configuration Go to System and select USB Select Names and then Save. Now the file xetouchPANELNames.txt will be downloaded to your USB. To restore the data select Load.

  • Page 99: Ethernet Interface

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces 7.4. Ethernet interface A network cable is required to connect the x/e-touchPANEL to a PC/laptop via Ethernet. To establish a network connection to a x/e-touchPANEL, each x/e-touchPANEL must be assigned an individual IP address.
  • Page 100 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces 7.4.3. Setting an IP address on the x/e-touchPANEL The Configuration is selected. Click on the "Main menu" symbol. -> The "Main menu" is displayed. Click on the "Configuration" button. -> The "Configuration" page is displayed.
  • Page 101 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces -> The IP address is saved to the x/e-touchPANEL. 7.4.4. Setting an IP address for a network with several x/e-touchPANEL To establish an Ethernet connection to the x/e-touchPANEL in a network, each panel must be assigned an individual IP address.
  • Page 102 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces NOTICE Please refer to the Help menu or to your operating system's manual on how to assign a permanent IP address. The previous chapter explains how to set the IP address in the x/e-touchPANEL, see "Setting an IP address on...

  • Page 103: Uploading / Downloading Files And Test Protocols

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces 7.5. Uploading / downloading files and test protocols You can download files to a PC/laptop or upload files from a PC/laptop to the x/e-touchPANEL via Ethernet. NOTICE A security enquiry informs you that the x/e-touchPANEL will be reset after uploading a configuration file. No test protocols are deleted during resetting.
  • Page 104 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Click the link "more..." at the bottom of the page. -> Page "File Up/Download" is displayed. Click "get last test" to show all last tests from all devices. - or - Click "get complete testbook"...
  • Page 105 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces 7.5.3. Uploading a screen saver NOTICE The xetouch software is case sensitive. Pay attention to correct spelling. Example screensaver: Correct spelling Wrong spelling screensaver.png screensaver.PNG A connection via an Ethernet interface is established.
  • Page 106 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Select the file screensaver.png and click on the "Open file" button. -> The file that you have selected is uploaded and the following box is displayed. Click on one of the two links return to upload page or return to main page.
  • Page 107 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces How to Connect your x/e-touchPANEL to Ethernet. Type the IP address followed by /TAmobile.htm in your Web Browser ! Attention The xetouch software is case sensitive. Pay attention to correct spelling.
  • Page 108 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Right click in the black area and select view page source. You will see the source code. Right click and select Save as Select save as type: Webpage, HTML Only Rename the File to TAmobile.htm...
  • Page 109 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Open the file with Notepad. Now you can edit the functions. How to customise the TA_mobile webpage Explained with the Field Scene 1 In the source code you can see the position and command for Scene 1 coords="163,82,320,132"...
  • Page 110 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces Go to the File Up/Download page and upload the TAmobile.htm and TAmobile.jpg 7.5.5. Rename Groups, Scenes, Sequences, Schedules It is possible to rename groups, scenes, sequences and schedules directly on your Computer.
  • Page 111 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Interfaces In the new window Right click and select Save as Save the File as xetouchPANELNames.txt ! Attention The xetouch software is case sensitive. Pay attention to correct spelling. Search and open the saved file (e.g. in Notepad)
  • Page 112 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Appendix Select upload You will then see that the file upload was OK. Select return to main page Result Changed Name of Group 1 112 / 118...

  • Page 113: Appendix

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Appendix 8.1. Technical data x/e-touchPANEL Article number 28000005 Mains voltage 230/240 V Mains frequency 50/60 HZ Power consumption 10 W Max. output current Interfaces USB, Ethernet Bus system DALI (external bus supply required)

  • Page 114: Circuit Diagrams

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Appendix 8.2. Circuit diagrams 8.2.1. Circuit diagram EMERGENCY Application 8.2.2. Circuit diagram Basic Colour, Plug Application NOTICE The x/e-touchPANEL requires a separate bus supply for each DALI line. 114 / 118...

  • Page 115: Schedule For Ethernet Connections

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Appendix 8.3. Schedule for Ethernet connections 8.3.1. Name of x/e-touchPANEL IP Address MAC Address Subnet Mask Default Gateway Annotation 8.3.2. Name of x/e-touchPANEL IP Address MAC Address Subnet Mask Default Gateway Annotation 8.3.3.
  • Page 116 Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Appendix 8.3.4. Name of x/e-touchPANEL IP Address MAC Address Subnet Mask Default Gateway Annotation 8.3.5. Name of x/e-touchPANEL IP Address MAC Address Subnet Mask Default Gateway Annotation 116 / 118...

  • Page 117: Help In The Case Of Problems

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Appendix 8.4. Help in the case of problems 8.4.1. Reset of settings All settings can be reset to the factory default values. In this case, the addressing of the emergency units or operating devices is also deleted.

  • Page 118: Reference List

    Manual x/e-touchPANEL 02 | 01-2021 | 2.9 | en Appendix 8.5. Reference list 8.5.1. Related documents Data sheet DALI x/e-touchPANEL 02: http://www.tridonic.com/com/en/download/data_sheets/x_e-touchPANEL_02_en.pdf DALI manual: http://www.tridonic.com/com/en/download/technical/DALI-manual_en.pdf Declarations of conformity: http://www.tridonic.com/com/en/declarations-of-conformity.asp Certificates: http://www.tridonic.com/com/en/certificates.asp 8.5.2. Downloads Tridonic software: http://www.tridonic.com/com/en/software.asp x/e-touchPANEL software: http://www.tridonic.com/com/en/software-x-e-touchpanel.asp em-LINK software: http://www.tridonic.com/com/en/software-em-link.asp...
