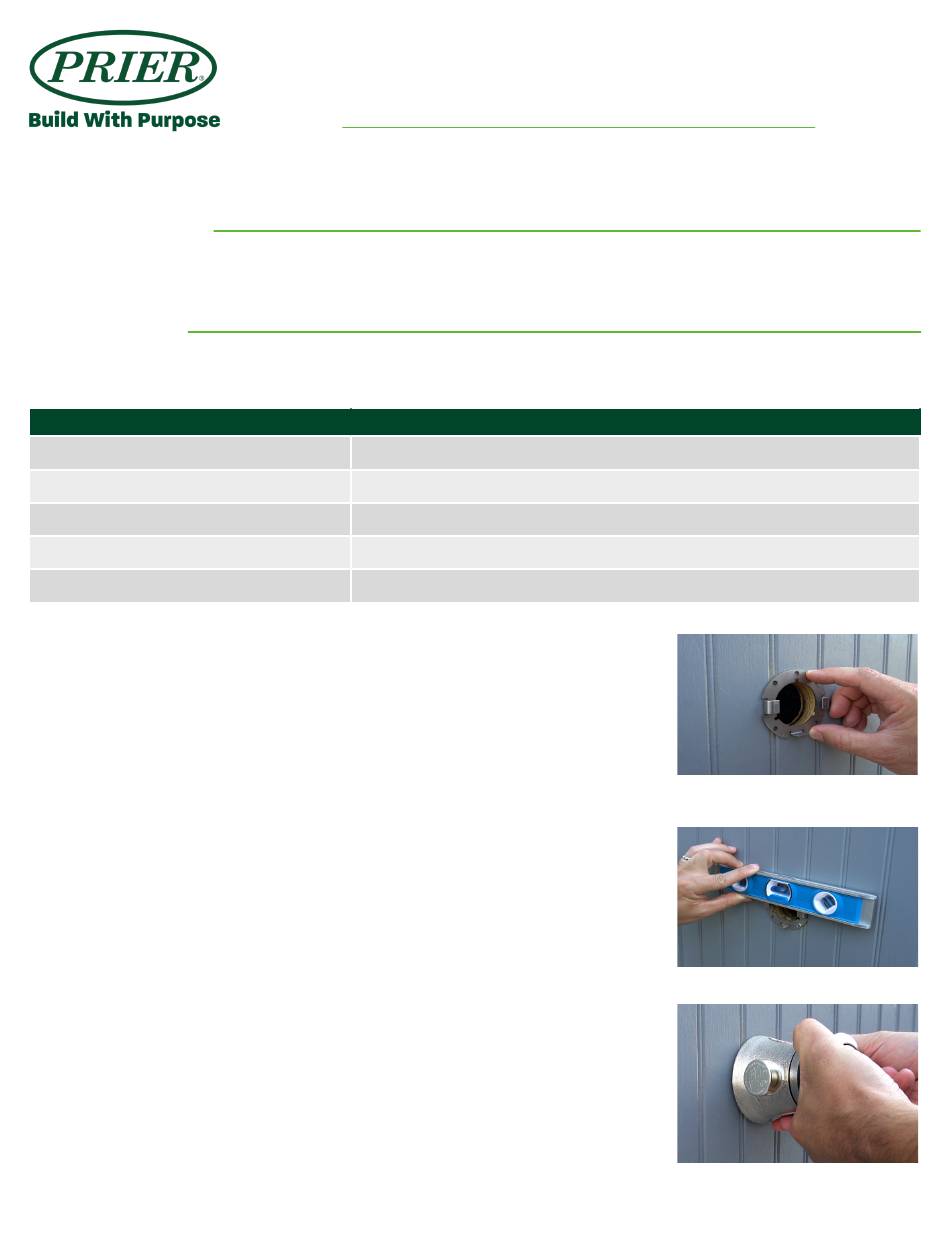

Prier P-114 Series Installation, Operation & Maintenance Instructions

Thank you for purchasing the PRIER P-114 Freezeless Wall Hydrant, the finest quality freezeless wall
hydrant available. Your P-114 will provide you years of dependable service with little or no maintenance.
TOOLS REQUIRED
• 2" Hole Saw
• Phillips Screwdriver

INSTALLATION

Installation procedures may vary slightly depending on the inlet style purchased. The PRIER P-114 Freezeless Wall Hydrant
is available with the following inlet options:
Inlet Style
D
T
X
F
W
1. Determine the location for the installation of the hydrant. The valve must be
installed into a heated area of the structure that will not drop below freezing.
Ensure there is adequate working room in the interior of the structure for securing
the hydrant to the plumbing system.
2. Prepare the mounting surface and entry hole. The P-114 requires a vertical and
smooth mounting surface to ensure proper installation and draining. Depending
on the surface the hydrant will be mounted, a mounting block may be required
to provide the vertical and smooth mounting surface. Mounting blocks can be
purchased or made on-site with a piece of wood or other materials on hand.
3. Bore a 2" hole through the wall (and mounting block if using one) in the desired
position for the installation.
4. Center and level the mounting bracket with the 2" hole and attach to structure with
(4) - 1" supplied screws. Depending on the substrate, you may want to drill a pilot
hole. The tab with a hole in it needs to be positioned at the bottom.
5. Slide the P-114 hydrant through the mounting bracket into the structure. Align
spout to the 3 o'clock position and insert the hydrant flush to the wall. Once fully
inserted rotate clockwise to the 6 o'clock position. Install the remaining 5/8"
machine screw through the bottom of the hydrant and into the mounting bracket.
6. Proceed to the interior of the structure to complete installation by connecting the
hydrant to the plumbing system. This procedure will vary depending on the inlet
style purchased.
7. If you are planning to solder the connection (D or F style seats), be certain the
hydrant is in the fully open position to prevent seat damage from the heat.
4515 E. 139th Street Grandview, MO 64030 | (800) 362-9055 | PRIER.com
Installation, Operation & Maintenance Instructions for the
PRIER P-114 Series Freezeless Wall Hydrant
Please leave this sheet for the property homeowner
Inlet Specifications
1/2" MPT x 1/2" SWT
3/4" MPT x 1/2" FPT
1/2" Crimp PEX
3/4" MPT x 3/4" SWT
1/2" Wirsbo® PEX
• Level
• Additional tools required depending on inlet
Step 4: Tab with hole positioned at 6
o'clock
Ensure mounting bracket is level
Step 5: Vacuum breaker is at the 9 o'clock
position, and the spout is at 3 o'clock
