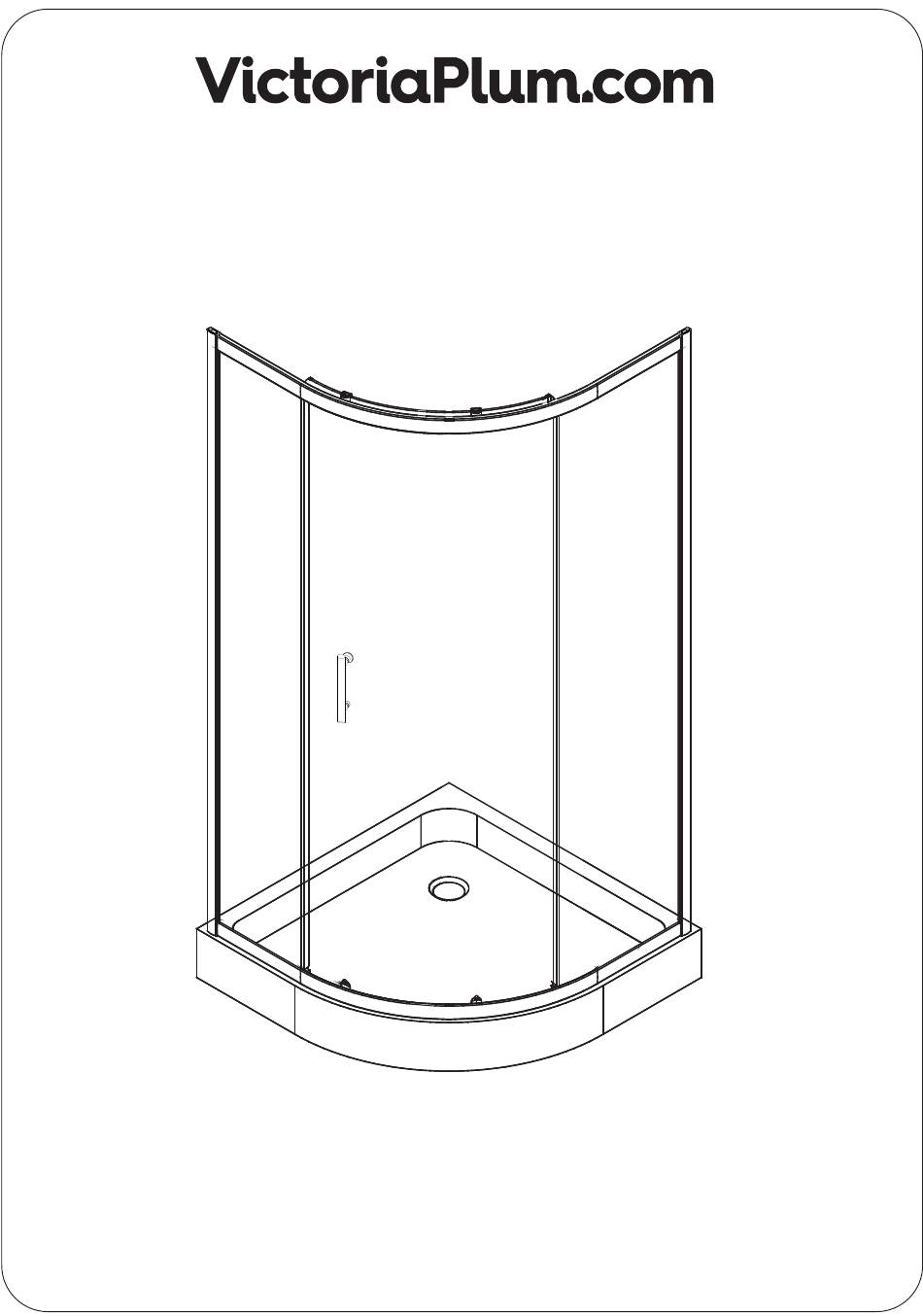

- Page 1 ASSEMBLY INSTRUCTIONS SIMPLICITY QUADRANT This product is universal not handed V01/07/2015...
- Page 2 BEFORE YOU START, HERE IS SOME IMPORTANT INFORMATION 1) General Information Please inspect this product upon delivery. any missing parts or manufacturing defects must be reported immediately to the supplier. Damage or defects reported later will not be accepted. TAKE CARE WHEN HANDLING GLASS PARTS-AVOID HEAVY CONTACT BETWEEN THE GLASS EDGES AND ANY HARD SURFACE.
- Page 3 ASSEMBLY INSTRUCTIONS-EXPLODED VIEW AND PARTS LIST (20) (19) (18) (17) (16) (15) (14) (10) (11) (12) (13) (11) 4xGlass Clamps (1) 1xTop Horizontal Rail (2) 2xWall Posts (12) 2xBottom Rollers (3) 6xWall Plugs (13) 1xBottom Horizontal Rail (4) 1xFixed Panels A (14) 6xScrew Cover Cap Clips (5) 1xVertical seal A (Fixed pane Al) (15) 6xScrews 4x12...
- Page 4 ASSEMBLY INSTRUCTIONS If you require help, we advise you to contact a competent plumber Installation Steps Step 1 THESE DIMENSIONS ASSUME THE WALLS ARE PLUMB AND THE SHOWER TRAY IS LEVEL, AND THAT THE WALLS ARE TILED DOWN TO THE TOP OF THE TRAY USING A 10mm TILE/WET WALL PANEL.
- Page 5 Step 2 MAKE SURE THE TRAY IS LEVEL, USING A SPIRIT LEVEL, BEFORE INSTALLING THIS SHOWER PANEL / DOOR. Round Screw M4x30...
- Page 6 Step 3 Round Screw M4x30 2c 1c Round Screw M4x10 Do not over-tighten.
- Page 7 Step 4 Gently squeeze the frame into the other wall post. Step 5...
- Page 8 Step 6 Step 7 Fitting Water Deflectors+Magnet Seals: Fixed panel A Fixed panel B Moving panel...
- Page 9 Step 8 Take care not to drill into the glass How to adjust the width of the Quad Maximum adjustment Vertical profile Glass panel Wall profile Wall Screw Minimum 10mm internal overlap required M4x12 Minimum adjustment Vertical profile Glass panel Wall profile Wall Step 9...
-
Page 10: Care And Maintenance
Product name: 6mm One Door Quadrant Product code: V6Q760 V6Q800 V6Q900 V6Q810 V6Q812 V6Q912 Customer help line number:0344 804 48 48... - Page 11 INSTALLERS NOTES...
- Page 12 Victoria Plum Limited, Bridgehead Business Park Hessle, HU13 0DG J150722001-1 Shower enclosures with aluminium Shower enclosures with aluminium profiles and safety glass profiles and safety glass The packaging you have received with your product is 100% recyclable. It must be disposed of in a safe and environmentally friendly way. We suggest you take it to the local landfill site and discard in the designated bins.
