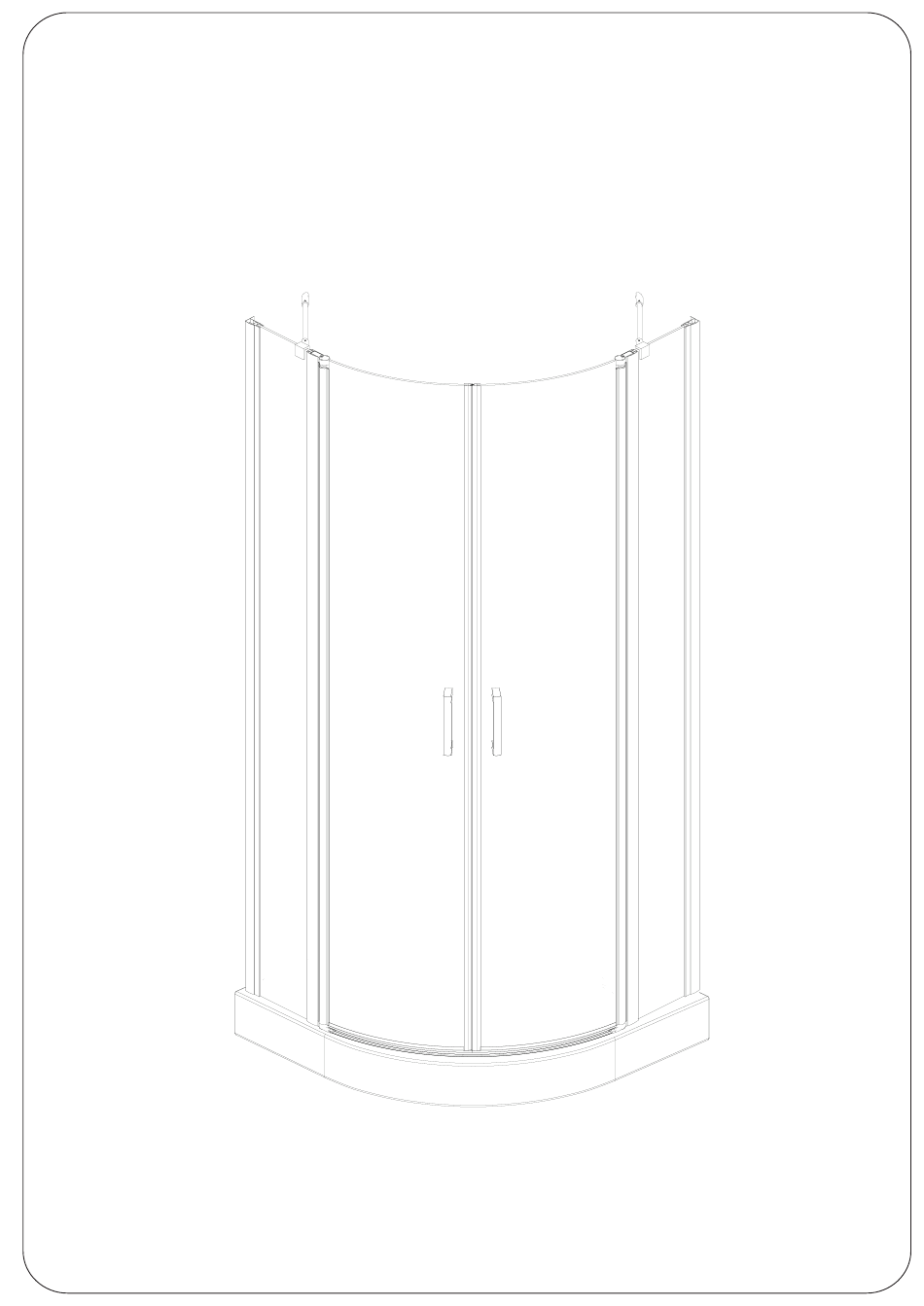

- Page 1 ASSEMBLY INSTRUCTIONS FRAMELESS PIVOT 2 DOOR QUADRANT V03/05/2014...
- Page 2 BEFORE YOU START, HERE IS SOME IMPORTANT INFORMATION 1) General Information Please inspect this product upon delivery. any missing parts or manufacturing defects must be reported immediately to the supplier. Damage of defects reported later will not be accepted. TAKE CARE WHEN HANDLING GLASS PARTS-AVOID HEAVY CONTACT BETWEEN THE GLASS EDGES AND ANY HARD SURFACE.
- Page 3 ASSEMBLY INSTRUCTIONS-DRAWING (10) (11) (12) (13) (14) (1) 2 x Wall Bracket (10). 2x Handle . x Wall Post (11) (2) 2 2x Magnet Seal (Moving Door) . x Vertical Profile (3) 2 (12) . 1x Bottom Seal (4) . x Moving Door (13) .
- Page 4 ASSEMBLY INSTRUCTIONS If you require help, we advise you firstly contact a competent plumber Installation Steps Step 1 THESE DIMENSIONS ASSUME THE WALLS ARE PLUMB AND THE SHOWER TRAY IS LEVEL, AND THAT THE WALLS ARE TILED DOWN TO THE TOP OF THE TRAY USING A 10mm TILE / WET WALL PANEL.
- Page 5 Step 2 MAKE SURE THE TRAY IS LEVEL, USING A SPIRIT LEVEL, BEFORE INSTALLING THIS SHOWER PANEL / DOOR. 4x30 Step 3...
- Page 6 Step 4 Step 5...
- Page 7 Step 6 How to adjust the width of the hinged door 3.0mm Maximum adjustment Vertical profile Glass panel Wall profile Wall Minimum 10mm internal overlap required Minimum adjustment Vertical profile Glass panel Wall profile Wall Step 7...
- Page 8 Step 8 Silicone (outside edge only) where the vertical profiles meet the wall, and the glass panel meet the tray.
-
Page 9: Care And Maintenance
However we understand that this may not always be the case, so should you experience any problems please contact out customer services quoting the following: Product name: Frameless pivot 2 door quadrant Product code: PFLQ699 Customer help line number:0844 804 45 45... - Page 11 The packaging you have received with your product is 100% recyclable. It must be disposed of in a safe and environmentally friendly way. We suggest you take it to the local landfill site and discard in the designated bins.
