Dimplex TDTR175C Installation And Operating Instructions

TDTR Towel Rails
Models :
TDTR175C, TDTR175W, TDTR350C & TDTR350W

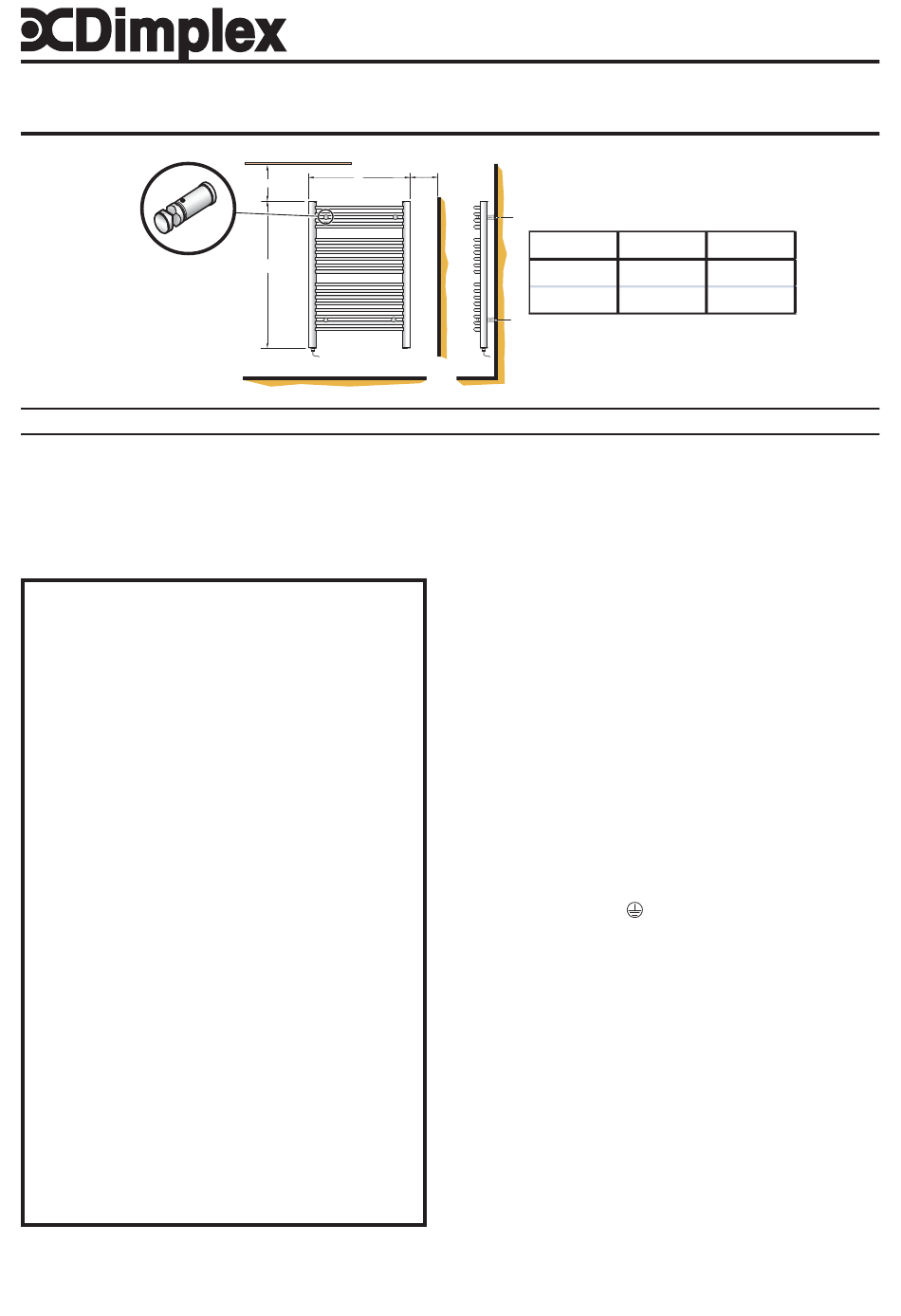

Dimensions
(millimetres)
IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Model Rails
TDTR 175C 12
TDTR 175W 12
TDTR 350C 18
TDTR 350W 18
Important Safety Advice
WARNING - THE SURFACE OF THIS RADIATOR CAN BE HOT.
In order to be effective the towel rail will get hot, however
momentary contact with any part of it should not cause
injury.
The heater is to be installed so that switches and other
controls cannot be touched by a person in the bath or
s h o w e r
CAUTION - This appliance is not intended for use by
chidren or other persons without assistance or
supervision if their physical, sensory or mental
capabilities prevent them from using it safely. Children
should be supervised to ensure that they do not play
with the appliance.
Precautions should be taken to ensure that prolonged
contact with the towel rail cannot occur. Particular
care should be taken in confined areas where
accidental prolonged contact with the rail could be
more likely to occur.
This appliance should only be used to dry fabrics washed
in water using commonly available detergents.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
IMPORTANT - If the towel rail is to be installed in a place
used by the public, a warning notice should be placed
adjacent to the rail advising that the surface can be hot.
WARNING - the towel rail is a sealed unit and is filled and
sealed under controlled
circumstances should the seal of the unit be
compromised
WARNING - In order to avoid a hazard for very young
children, this appliance should be installed so that the
lowest heated rail is at least 600mm above the floor.
General

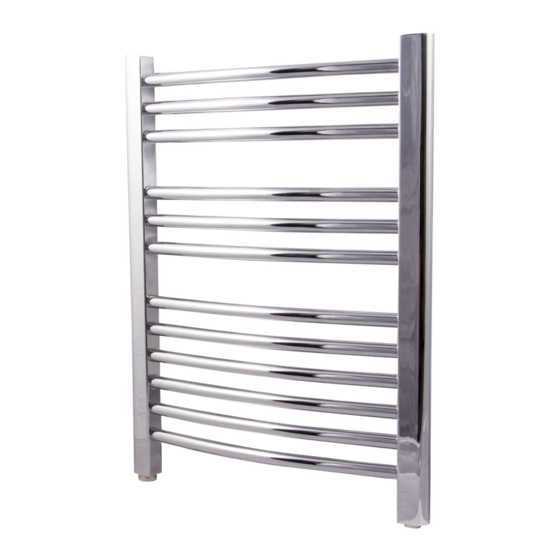

The TDTR towel rail is designed to provide an all year round service
for airing towels and articles of clothing. It is not intended to provide
shelf
B
100 min.
A
Table1
Watts Weight (kg)
120
175
250
350
conditions. Under
Installation and Operating Instructions
150
min.
TDTR 175
TDTR 350
a sole heating service, but the larger model will take the chill off an
average size bathroom, lavatory or en suite. Your rail will be in one
of two sizes and will have either silver chromium plated or white
6
stove-enamel finish.
6
No routine maintenance is necessary apart from occasional cleaning.
11
Both models are splashproof to IPX5 standard.
11
Electrical
WARNING - This appliance must be earthed
The electrical installation of this towel rail must be carried out by a
competent electrician in accordance with the current I.E.E Regulations
for Electrical Equipment. The towel rail is suitable for use on an A.C.~
electrical supply. Before installation check that the supply voltage
corresponds with that marked on the rail.
IMPORTANT - The wires in the mains lead are coloured in
accordance with the following code:
BLUE
BROWN
GREEN/ YELLOW
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured GREEN and YELLOW must be
connected to the terminal in the plug which is marked with the letter
E or by the earth symbol
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured BROWN must be connected to the terminal
which is marked with the letter L or coloured red.
This appliance must only be used on A.C. mains supply of 230/240
Volts~.
Installation
If fitted in a room containing a bath or shower, to comply with the
current I.E.E.
necessary with the supply to the heater controlled by a
no
double-pole pull-cord switch having a contact separation of 3mm in
each pole. The body of the switch should be situated as to be
normally inaccessible to a person using a bath or shower.
IMPORTANT - Protect the electrical connection whilst
handling the towel rail.
The towel rail must be permanently fixed to the wall using the wall
brackets supplied. The rail must be mounted vertically as shown
observing the minimum clearances stated.
WARNING - The towel rail is heavy. Care must be taken when lifting
and fitting the towel rail.
Model A
610
843
- NEUTRAL
- LIVE
- EARTH
or coloured green or green and yellow.
Regulations, a
Issue 5
B
453
602
Fig. 1
cable outlet will be
