Dimplex HD20A Installation And Operating Instructions

HD20A Hand dryer
Important Safety Advice
WARNING - THE SURFACES OF THIS UNIT CAN BE HOT.
WHEN IN USE, THE AIR OUTLET GRILLE GETS HOT. DO NOT
TOUCH IT OR COVER IT.
WARNING – DO NOT USE THIS DRYER IN THE IMMEDIATE
SURROUNDINGS OF A BATH, A SHOWER OR A SWIMMING POOL.
IMPORTANT - DO NOT COVER THE HAND DRYER. Do not obstruct the
air circulation around the dryer as this could create a fire risk.
NEVER cover or obstruct in any way the air inlet or outlet slots in the
casing of the dryer.
FOLLOW these instructions carefully.
General
Description of hand dryer
The sole purpose of the hand dryer is to dry hands. The hands
are dried in a stream of warm air that flows out of the air outlet
grille. The hands can be rubbed together to accelerate drying.
The hand dryer has an infrared proximity switch. This switches
the unit on automatically when the hands are held beneath the
air outlet grille. If the hands are removed from underneath
the air outlet grille, the infrared proximity switch switches the
device off after a delay of approximately 3 seconds.
The hand dryer must be mounted in a closed room and must be
mounted on a vertical wall with the air outlet opening pointing
downwards. The unit is not suitable for free- standing
applications.
Technical specifications
Type
Operating voltage
Power
Degree of protection
Protection class
Type of connection
Type of mounting
Operation
Time delay
Air throughput
Dimensions W x H x D
Weight
Materials supplied with hand dryer
The hand dryer comes complete with a drilling template and
fittings.
IMPORTANT — READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE
HD20A
230 V – 50 Hz
2250 Watts
IP 23
1
Fixed connection
Wall-mounting
Proximity switch
Run-on time of min. 3 seconds
470 m 3 /h
278 x 248 x 210 mm
approx. 6.5 kg
Installation and
Operating Instructions

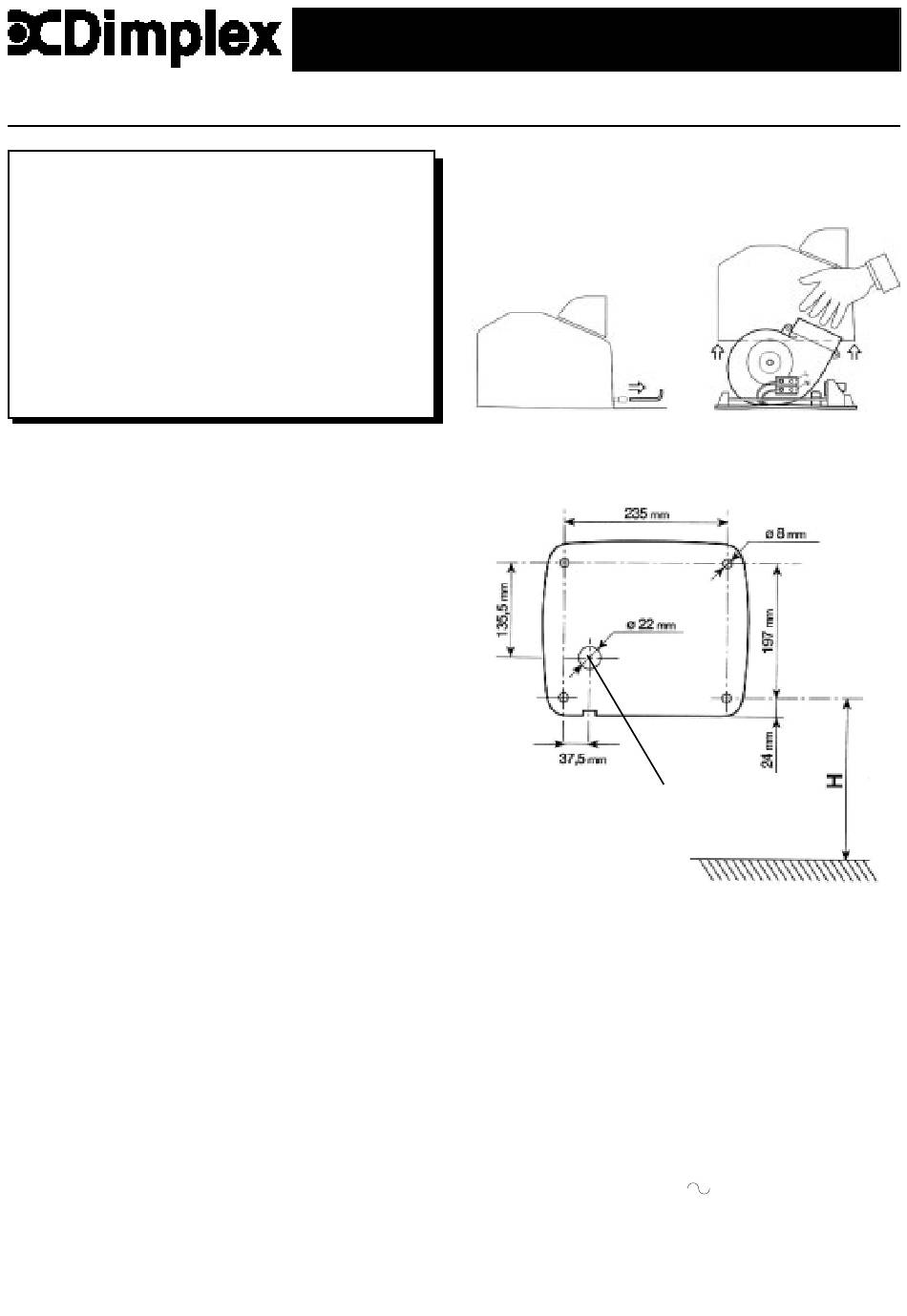

Installation
Undo the casing cover screws using the spanner supplied and
remove the casing.
c o v e r .
Mount the hand dryer on a vertical wall with the air outlet
opening pointing downwards, bearing in mind the mounting
dimensions and minimum clearances detailed below.
Inlet for power supply cable
Recommended installation height H: Adults 115 cm,
children 80 cm.
There must be a minimum clearance of 220 mm on either side.
Mark the four mounting holes using the template supplied (see
diagram above).
The screws and Rawlplugs for wall-mounting are supplied with
the unit. However, specialist mounting materials may need to
be used according to the method of construction (e.g.
lightweight partition walls). Seek specialist advice.
When inserting the Rawlplugs, be careful of existing electrical
cables in the walls. Risk of electric shock.
Drill Ø 8 mm holes for the Rawlplugs and insert the plugs.
Electrical connections
WARNING - THIS PRODUCT MUST BE EARTHED.
This dryer must be used on an
voltage marked on the dryer must correspond to the supply
voltage.
T020406/A
supply only and the
