Using The Osd Program - Cables to Go TruLink 35555 User Manual

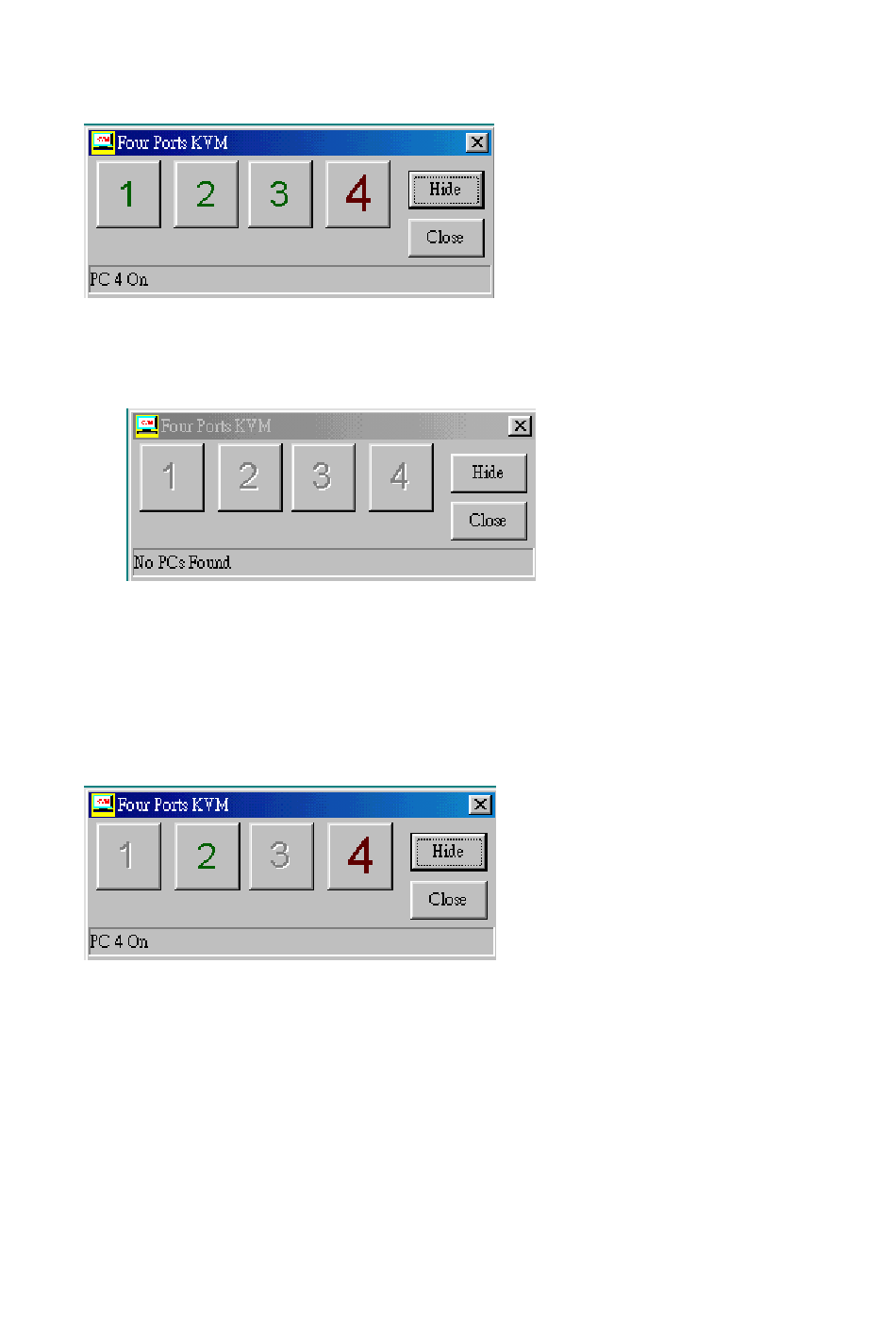

3.5 Using the OSD program; examples
a. "No PCs Found" means that the KVM Switch cannot acquire the PC status. This
is either because the PC did not connect or is powered off.
b. The large red "4" and small green "2" mean that two PCs are connected to Port 1
and Port 4 of your KVM Switch respectively, and you have switched to Port 4
already. So the OSD program will display "PC 4 On" underneath. You can click
the "2" to switch to this available host.
c. The large red "4" and small green "1, 2, 3" means that four PCs are connected to
Port 1 and Port 4 of your KVM Switch respectively, and you have switched to
Port 4 already. So the OSD program displays a "PC 4 On" underneath. You can
click on "1, 2 or 3" to switch to a certain available host.
TruLink™ 4-Port USB 2.0 and PS2 KVM Switch
8
