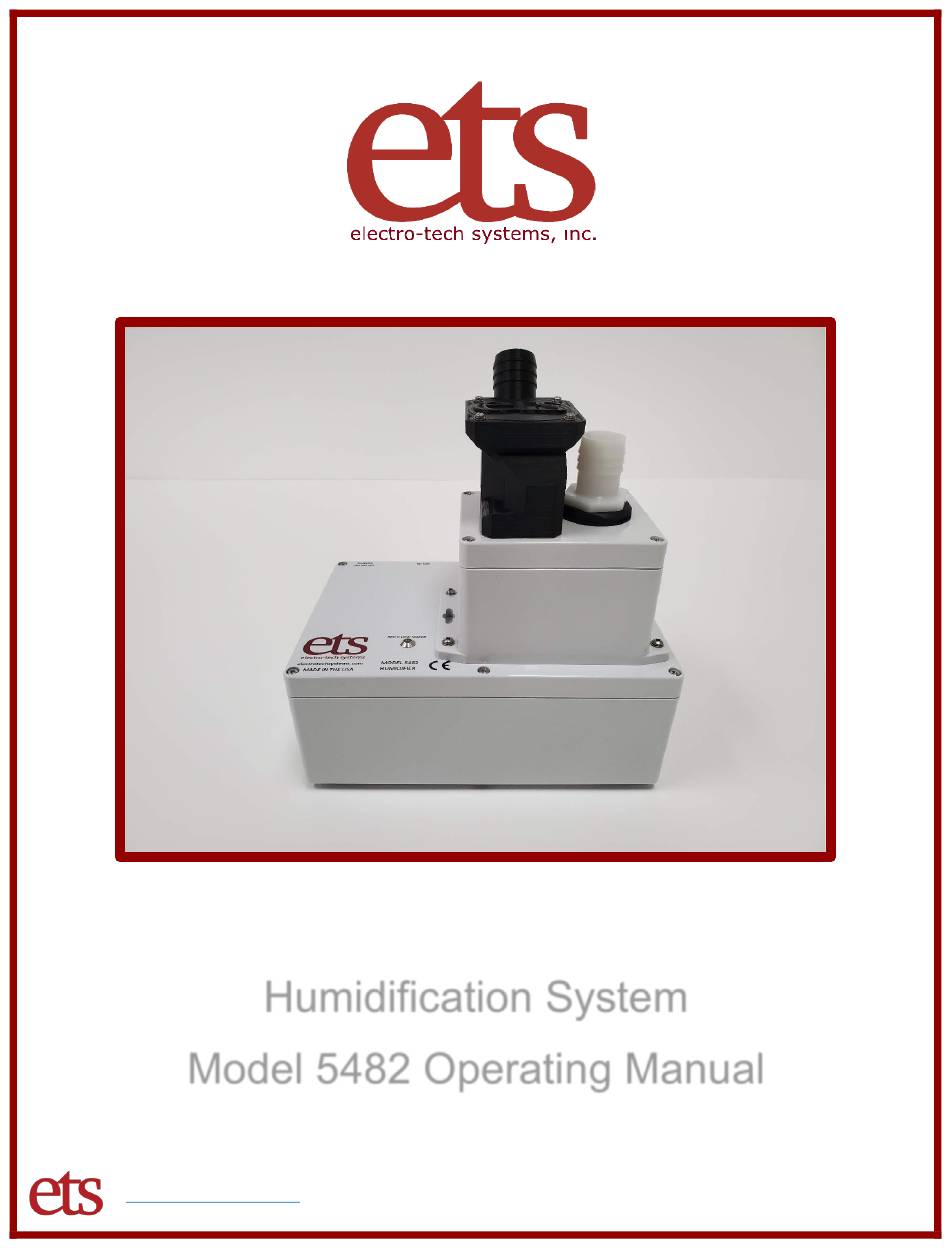

- Page 1 Humidification System Model 5482 Operating Manual D01016 Revision D – 20210107 www.electrotechsystems.com 833-ENV-GURU (833-368-4878)
-
Page 2: Table Of Contents
Section numbers corrected. Revision C: Released 2019-10-29. Edits to section V. Operation Guide. Revision D: Released 2021-02-12. Manual update for current iteration of Model 5482. Products described in this manual are designed and assembled in the U.S.A. by Electro-Tech Systems, Inc. -
Page 3: Important Safety Information
I. Important Safety Information SAFETY INSTRUCTIONS The equipment described in this manual is designed and manufactured to operate within defined design limits. Any misuse may result in electric shock or fire. To prevent the equipment from being damaged, the following rules should be observed for installation, use and maintenance. Read the following safety instructions before operating the instrument. -
Page 4: Description Of Contents
II. Description of Contents Item Item Qty. Description The ultrasonic humidifier features a primary control base Ultrasonic Humidifier unit and top-mounted mist generation basin. One 5-gallon water tank is included as standard. Optionally, Water tank the humidification system can be connected directly to a DI water supply. -
Page 5: Set-Up Guide
III. Set-Up Guide Part 1: Prepare water supply Step 1 – Fill Water Tank Remove cap with spigot attachment, and fill tank up to intended level, up to five gallons, with de-ionized or distilled water only. Use of tap water will cause build-up of contaminates and cause stress to the mist- generating elements, which may result in premature failure. - Page 6 Part 2: Prepare Unit for Operation Step 1 – Check Drain Valve position Ensure the drain valve is set to the “OFF” position with the tap lever turned 90° from the drain valve inlet and outlet. Ensure humidifier is placed on a level surface with no more than 5°...
-
Page 7: Quick Start Guide
AC line cord from the wall outlet and connect the cord to a controller in the appropriate operating system outlet, labeled “HUMIDITY”. The Model 5482 can now be controlled to produce mist and raise humidity. Step 4a – Closed-Loop Humidification Connect the two 1.5-foot sections of 1”... - Page 8 Step 4b – Optional Open-Loop Configuration The humidifier can optionally be run in an open- loop configuration, if desired. Utilize one 1.5-foot section of 1” ID tubing and connect from the white humidity outlet barb to the intended environmental conditioning location. The unit will pull external air to provide humidity to an environment.
-
Page 9: Functionality
V. Functionality The ETS Model 5482 Ultrasonic Humidification System requires a single-phase AC power supply. It works with voltages from 100VAC to 240VAC. The LED is a bi-color LED. It will turn when de-ionized or distilled water falls below the acceptable level in the basin. - Page 10 Optional features and Accessories The Model 5482 humidifier may optionally be purchased with in-line particulate filtering for desired applications. The particulate filter serves to prevent contaminant build-up in the humidifier basin and increase unit lifespan. Filter specifications include 99.999+% Bacterial Filtration Efficiency (BFE), 99.999+% Viral Filtration Efficiency (VFE), and a flow resistance...
-
Page 11: Repair And Maintenance
VI. Repair and Maintenance To return equipment to ETS for repair it is first necessary to obtain a RMA number, please call 215-887-2196 or email service@ets2.com Preventive Maintenance The humidification system utilizes a pair of ultrasonic transducers that has an estimated lifespan of at least 3000 hours of run time after which it may need to be replaced. - Page 12 Step 2 – Flush out the Basin Empty the small drain container. Plug the humidifier AC line cord into a wall AC outlet to ensure constant power to the unit. Turn the 5-gallon water tank valve to the “ON” position to let fresh deionized water from the tank flush out contaminates in the basin through the drain valve for at least 2 minutes.
-
Page 13: Troubleshooting
Power LED does not Electrical issue resulting in light up LED not lighting Power supply connection not Contact ETS for unit repair reaching board Board short circuiting Check if water tank latch is turned to “on” position Check if basin drain is turned to “closed”... -
Page 14: Warranty
VIII. Warranty Limited Warranties. Seller warrants that all goods manufactured and delivered hereunder shall (a) conform to any samples, drawings, specifications, or other written documents provided to Seller by Buyer or approved by Buyer to Seller and (b) be free from all defects in workmanship and material.
