Apollo Test Set
Quick Start Guide
Important Information
• Read this Quick Start Guide completely before using the Apollo Test
Set.
• The Apollo Test Set is electronic test equipment and care should be
taken when handling and storing. Dropping the unit on to hard surface
could damage it.
• This product is designed for indoor use only and should not be subject
to harsh environments. It is not designed for use in hazardous areas
(those containing explosive vapour or dust). Do not use the equipment
in places where temperatures and/ or humidity are high or go through
rapid changes.
• Do not use the Apollo Test Set if it is not operating correctly and
consult the troubleshooting section or seek technical advice.
• If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired and the
warranty invalidated.
MANAGEMENT MANAGEMENT PRODUCT
SYSTEMS SYSTEMS CERTIFICATION
Assessed to ISO 9001:2008 Assessed to ISO 14001:2004 Cert/LPCB ref. 010
Cert/LPCB ref. 010 Cert/LPCB ref. 010 EMS
What's in the box?
The Apollo Test Set contains:
• The Apollo Test Set Unit
• A universal charger
• Two Red connector cables
• Two Black connector cables
• Two Yellow connector cables
• Green connector cable
• XPERT 8 Intelligent Mounting Base
• Carry strap
• Quick Start Guide

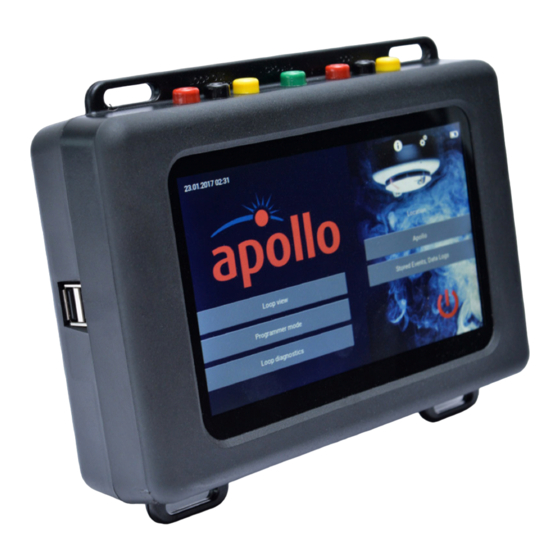

What is where?
Ground
Loop Out + (Red)
(Green)
Loop Out - (Black)
Loop In + (Red)
Loop Out - Screen (Yellow)
Loop In - (Black)
Loop In - Screen (Yellow)
USB Port
(on the side of the unit)
Strap fixings
Battery
Cover
Strap fixings
How does it work?
Press and hold the Power-on button until the Power LED is illuminated.
Once the unit has powered-up the Home Screen appears.
From the Home Screen you are able to access the seven main menus:
• Settings
Tap the Settings icon in the top bar and the Settings menu appears.
• Loop view
Tap the Loop View tab, the Loop view menu appears enabling access
to a further six sub-menus. This is explained in more detail overleaf.
• Programmer mode
Power On
Tap the Programmer mode tab
• Loop diagnostics
Power LED
Charging port
Tap the Loop diagnostics tab
• Location
Tap the Location tab and you can enter the test location.
• Stored Events, Data logs
Tap the Stored Events, Data logs tab
Stand
• Help screen
Tap the Information icon in the top bar to access help information
39215-247/2017/Issue 1
