Chronograph II S

Instruction manual

Table of Contents

Need help?

Do you have a question about the Chronograph II S and is the answer not in the manual?

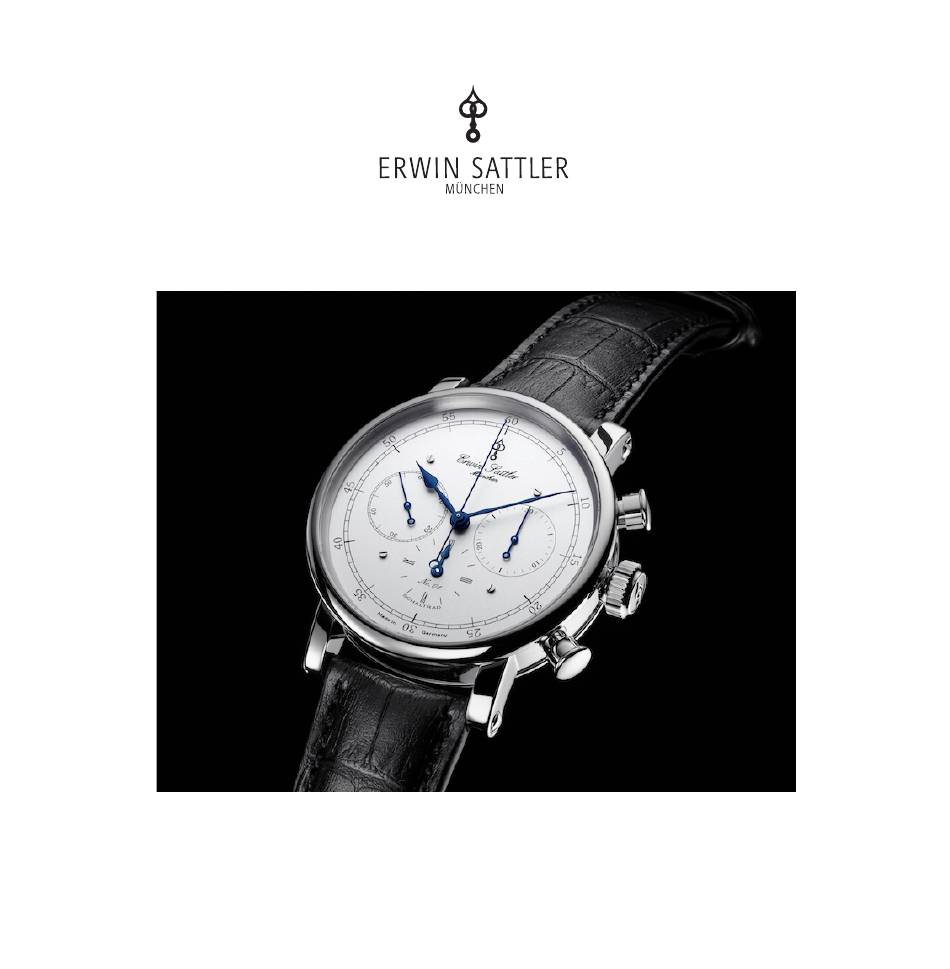

Page 1 Chronograph II S Instruction manual...
Page 2 Push button 1 Crown Push button 2...
Page 3 Instruction manual 1. Winding the watch If the watch has stopped, you should turn the winding crown in the basic position (position 1) at least 30 times clockwise to ensure correct function and good accuracy. Wearing the watch permanently at your wrist winds up the movement automatically.
Page 4 3. Functions Push buttons All the functions of the Chronograph are controlled through 2 push buttons. Push button 1 has two functions: Start und Stop Push button 2 has the function: Reset Function: Start When you need to measure a specific event you must remember to reset the chronograph hands.
Page 5 Technical data Case Stainless steel, Ø 44 mm, height: 15,5 mm Domed anti-reflective sapphire crystal in the front, Crystals domed sapphire crystal in the case back Sattler-calibre ES 04S, Movement basic calibre: Automatic LJP 7772 / LJP 8000 Jewels Water resistance Up to 5 bar 55 hours Power reserve...
Page 6 Service Erwin Sattler GmbH & Co. KG Großuhrenmanufaktur Lohenstr. 6 · 82166 Gräfelfing Phone: 089 – 89 55 806 0 · Fax: 089 – 89 55 806 28 info@erwinsattler.de www.erwinsattler.de...
