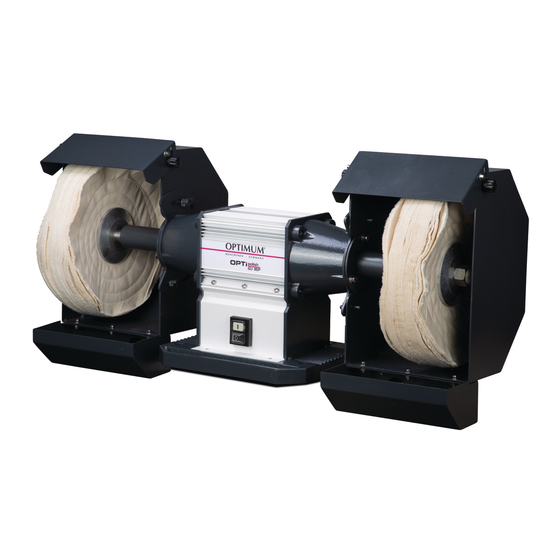

- Page 1 Safety Operating manual Technical specification Version 1.0.1 Delivery, interdepartmental transport and unpacking Polishing machine Operation Maintenance Appendix Ersatzteile - Spare parts Part no. 3101560...
- Page 2 If you have any further questions after reading these operating instructions and you are not able to solve your problem with a help of these operating instructions, please contact your special- ised dealer or directly the company OPTIMUM. Optimum Maschinen Germany GmbH Dr.- Robert - Pfleger - Str. 26 D-96103 Hallstadt...
- Page 3 explains the meaning and use of the warning notes included in these operating instructions, defines the intended use of the polishing machine, points out the dangers that might arise for you or others if these instructions are not observed, ...
-
Page 4: Other Pictograms
We accept no liability for damage resulting from improper use. We expressly point out that the guarantee will expire, if any constructive, technical or proce- dural changes are not performed by the company Optimum Maschinen Germany GmbH. It is also part of the intended use that you ... -
Page 5: Reasonably Foreseeable Misuse
The installation of grinding wheels or drive pulleys to drive other devices is prohibited. We expressly point out that the guarantee will expire, if any constructive, technical or proce- dural changes are not performed by the company Optimum Maschinen Germany GmbH. Possible dangers caused by the polishing machine The polishing machine was built using state-of-the-art technology. - Page 6 attend a training in the use of machine tools. Your specialist dealer can offer you an appropriate training course. These courses are also offered by adult education centres in Germany. 1.5.2 Obligations of the User The user must have read and understood the operating manual, ...
-
Page 7: For Your Own Safety During Operation
CAUTION! Dirty or contaminated personnel protective equipment can cause illness. It must be cleaned after each use and at least once a week. For your own safety during operation WARNING! Before switching on the polishing machine, make sure that it does not endanger persons, that no objects are damaged, and that the direction of rotation of the polishing wheels is correct. -
Page 8: Technical Specification
CAUTION! Depending on the overall noise exposure and the basic threshold values, machine operators must wear appropriate hearing protectors. We generally recommend the use of noise and ear protection. Technical specification Electrical connection 3x 400V ~50Hz ( 60 Hz ) Motor power 2.2 kW Speed ( 50 Hz ) [ rpm ]... -
Page 9: Unpacking And Connecting
Store packed and unpacked parts only under the intended environmental conditions. Follow the instructions and information on the transport box. Consult Optimum Maschinen Germany GmbH if the machine and accessories are stored for more than three months or are stored under different environmental conditions than those spec- ified here. -
Page 10: First Commissioning
Dimensions Img.3-1: GU 35P First commissioning ATTENTION! Before commissioning the machine, all bolts, fastenings and protections must be checked and retightened as necessary! WARNING! Danger from the use of unsuitable polishing wheels. Only use polishing wheels that can withstand the speed requirements and loads that occur. 3.7.1 Power supply ... -
Page 11: Maintenance
Resetting the motor circuit breaker When the motor has been overloaded. Activate the motor circuit breaker again. Press the reset button. Reset button INFORMATION Make sure that the polishing forces are not too large. The motor protection switch triggers before the three-phase motor stops due to overload. Maintenance In this chapter you will find important information about ... - Page 12 Shaft nut Drive shaft Polishing wheel Repair Optimum Maschinen Germany GmbH accepts no liability nor does it guarantee against damage and operating malfunctions resulting from failure to observe these operating instructions. For repairs, only use faultless and suitable tools only, ...
-
Page 13: Advice For Disposal / Options Of Reuse
Title to replaced products or components is transferred to OPTIMUM Maschinen Germany GmbH. The automatically generated original proof of purchase which shows the date of purchase, the type of machine and the serial number, if applicable, is the precondition in order to assert liability or warranty claims. -
Page 14: Disposal Of Electrical And Electronic Components
6.3.2 Disposal of new device packaging All used packaging materials and packaging aids from the machine are recyclable and gener- ally need to be supplied to the material reuse. The packaging wood can be supplied to the disposal or the reuse. Any packaging components made of cardboard box can be chopped up and supplied to the waste paper collection. -
Page 15: Change Information Manual
Change information manual Chapter Short note new version no. Interdepartmental transport 1.0.1 Product follow-up We are required to perform a follow-up service for our products which extends beyond ship- ment. We would be grateful if you could send us the following information: ... -
Page 16: Ersatzteile - Spare Parts
Ersatzteile - Spare parts Ersatzteilbestellung - Ordering spare parts Bitte geben Sie folgendes an - Please indicate the following : Seriennummer - Serial No. Maschinenbezeichnung - Machines name Herstellungsdatum - Date of manufacture Artikelnummer - Article no. Die Artikelnummer befindet sich in der Ersatzteilliste. - Page 17 Ersatzteilzeichnung - Spare parts drawing Abb.7-1: Ersatzteilzeichnung - Spare parts drawing GU35P Menge Grösse Artikelnummer Pos. Bezeichnung Description Qty. Size Item no. Gehäuse Housing 031015601 Abdeckung Cover 031015603 Lagerflansch Bearing flange 031015604 Antriebsmotor Drive motor 2.2 kW 031015608 Lager Bearing 6207-2RZ 0310156010 Grundplatte...
-
Page 18: Ec Declaration Of Conformity
EC Declaration of Conformity according to Machinery directive 2006/42/EC, Annex II 1.A The manufacturer/ Optimum Maschinen Germany GmbH Dr.-Robert-Pfleger-Str. 26 Distributor: D - 96103 Hallstadt, Germany hereby declares that the following product Product designation: Polishing machine Type designation: GU35P Polishing machine for private persons, as well as for craft and industrial plants which meets all the relevant provisions of the above mentioned Directive 2006/42/EC as well as the other directives applied (below) including their amendments in force at the time of declaration.
