American Dynamics ADSPOT Installation Manual

ADSPOT Single-Position
Outdoor Transformer

Installation Guide

WARNING! This device contains a piece
!
of cardboard over the transformer to
protect it during shipping. Remove and
discard the cardboard before installing
this device.
IMPORTANT: Read Regulatory Requirements and
other declarations on page 4.

About the Product

This weather-tight box (Figure 1) contains a Class
2 limited power source providing power to the
SpeedDome Ultra and SpeedDome Optima
outdoor camera housings.
Note: Because customer requirements dictate the
placement of components, your Sales representa-
tive will supply this information separately.

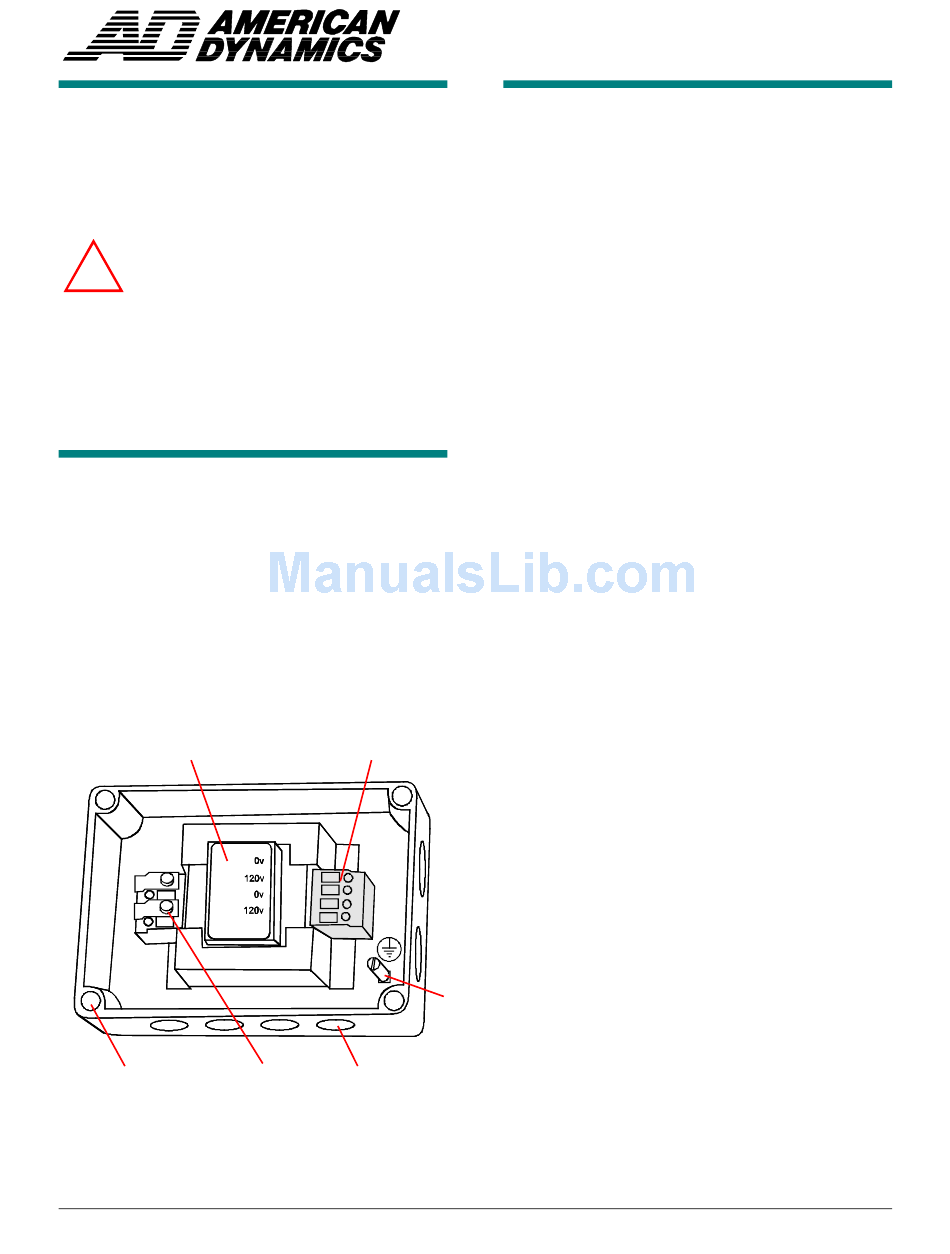

Figure 1. Transformer and Box
Transformer Label
Mounting / Cover
Terminals
Screw Hole
© Sensormatic 2003
Orange
Terminal Block
N
Fuse
Knockouts
SINGLE-POSITION OUTDOOR TRANSFORMER INSTALLATION GUIDE (8000-2573-29, REV. A)
Important Safeguards
A 15A, 2-pole, ganged disconnect device, which
also provides short circuit and overload protection,
and has a minimum 3mm open circuit clearance, in
accordance with the National Electrical Code,
Canadian Electrical Code and applicable local
codes must be installed at a location readily
accessible to the equipment.
(Ein 15A, 2-poliges, gekoppeltes Ausschaltgerät,
welches auch über einen Kurzschluß- sowie
Überbelastungsschutz verfügt, und einen minimum
3mm offenen Schaltabstand aufweist, nach
Übereinstimmung mit den Nationalen Elektrischen
Regelungen und Kanadisch Elektrischen
Regelungen sowie lokalen Regeln, muß an einem
Standort installiert werden, welcher einfachen
Zugang zum Gerät erlaubt.)
Outside elements. To keep outside elements from
entering the box, always mount it vertically with
cables exiting to the side or down.
Wire routing. Ensure wires from the secondary
and primary sides of the transformer do not cross
paths within the box.
Adding access holes to the enclosure. The box
meets the IP66 and NEMA 4 standards for
weatherproofing. To maintain this rating, do not drill
into the enclosure. Use outdoor rated conduit to
maintain the IP66 NEMA 4 rating.
See following pages for additional safeguards.
Ground
Terminal
