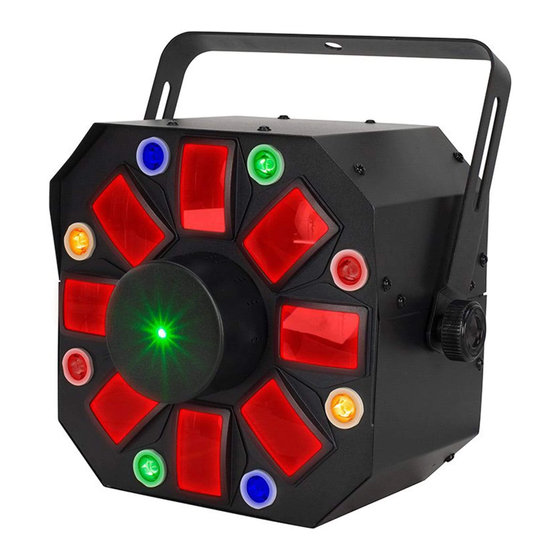

Furious Three RG
Furious Three RG
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Furious Three RG and is the answer not in the manual?

Questions and answers

Related Manuals for Eliminator Lighting Furious Three RG

Summary of Contents for Eliminator Lighting Furious Three RG

  • Page 1 Furious Three RG Furious Three RG User Manual SKU#: FUR128 UPC#: 818651029314...
  • Page 2 Eliminator Lighting and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Laser Warnings and Safety Maintenance Guidelines DMX Setup Overview Installation Instructions System Menu DMX Traits Dimensional Drawing Specifications...

  • Page 4: General Information

    In the unlikely event that your unit may require service, please contact Eliminator Lighting. Eliminator Lighting will not accept any liability for any resulting damages caused by the non-observance of information in this manual or any unauthor- ized modifications to this unit.

  • Page 5: Limited Warranty (Usa Only)

    This warranty is the only written warranty applicable to Eliminator Lighting, an ADJ Products, LLC brand, and su- persedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

  • Page 6: Safety Guidelines

    S A F E T Y G U I D E L I N E S THERE ARE NO USER SERVICEABLE PARTS INSIDE THESE DEVICES. DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFAC- TURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THESE DEVICES AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDE- LINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
  • Page 7 S A F E T Y G U I D E L I N E S This unit may “pop” the fuse if the maximum allotted load of 3 amps is reached. • To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture. •...

  • Page 8: Laser Warnings And Safety

    L A S E R W A R N I N G S A N D S A F E T Y After completing setup, and before public use, test the laser to ensure proper function. Do not use if any defects are detected. Do not use if the laser emits only a few laser beams rather than dozens/ hundreds, as this could indicate damage to the diffraction grating optic, and could allow emission of laser intensity levels that exceed Class 3R.
  • Page 9 L A S E R W A R N I N G S A N D S A F E T Y...

  • Page 10: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside these devices; please refer all other service issues to Eliminator Light- ing. Should you need any spare parts, please order genuine parts from Eliminator Lighting. Please refer to the following points during routine inspections: •...

  • Page 11: Dmx Setup

    D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
  • Page 12 D M X S E T U P Notice: Be sure to follow figures two and three when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come into contact with the XLR cable’s outer casing.
  • Page 13 D M X S E T U P DMX ADDRESSING All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...

  • Page 14: Overview

    O V E R V I E W 1. Laser Aperture 11. DMX In 2. Mounting Bracket 12. Enter Button 3. Bracket Adjustment Knobs (x2) 13. Down Button 4. Sound Indicator 14. Up Button 5. DMX Indicator 15. Function Button 6.

  • Page 15: Installation Instructions

    I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep devices at least 5.0 feet (1.5m) away from flammable materials and/or pyrotech- nics.
  • Page 16 I N S T A L L A T I O N I N S T R U C T I O N S CLAMP INSTALLATION This fixture features a mounting clamp attachment point, which is located on the mounting yoke, as well as a safety cable rigging point, located on the rear face of the unit near the power connection (see the illustration below).

  • Page 17: System Menu

    S Y S T E M M E N U CONTROL PANEL The device includes an easy to navigate system menu that can be accessed via a set of control but- tons located on the back face of the device below the digital display. FUNC: Press to cycle through main menu options (Auto, Sound, Secd, DMX).
  • Page 18 S Y S T E M M E N U Aut0: Laser + RGBWY + 8x1WLED Aut1: Laser + RGBWY ENTER to confirm, then UP/DOWN to select display Aut2: Laser + 8x1WLED speed. Auto Aut3: RGBWY + 8x1WLED S0 (fastest) to S100 (slowest). Aut4: RGBWY Aut5: Laser Aut6: 8x1WLED...

  • Page 19: Dmx Traits

    D M X T R A I T S Eliminator Furious Three RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION Mode 0 - 9 No Function 10 - 24 Aut0 25 - 39 Aut1 40 - 54 Aut2...
  • Page 20 D M X T R A I T S Eliminator Furious Three RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION LED Operation (continued) 70 - 74 Red + Yellow 75 - 79 Red + Blue 80 - 84...
  • Page 21 D M X T R A I T S Eliminator Furious Three RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION 8-piece LED Control 0 - 9 No Function 10 - 19 Picture 1, slow to fast 20 - 29...
  • Page 22 D M X T R A I T S Eliminator Furious Three RG - DMX Traits Software Version CHANNEL DMX VALUE DESCRIPTION Laser Rotate 0 - 4 Stop 5 - 127 Rotate Clockwise, slow to fast 128 - 133 Stop...

  • Page 23: Dimensional Drawing

    D I M E N S I O N A L D R A W I N G...

  • Page 24: Specifications

    S P E C I F I C A T I O N S • 3-FX-IN-1 dance party lighting effect: LED Moonflower, Wash and laser effects • Dozens of razor-sharp beams fill a dance floor, ceiling or wall • Moonflower: 5 x 3W (RGBWY) 5-in-1 LEDs •...
